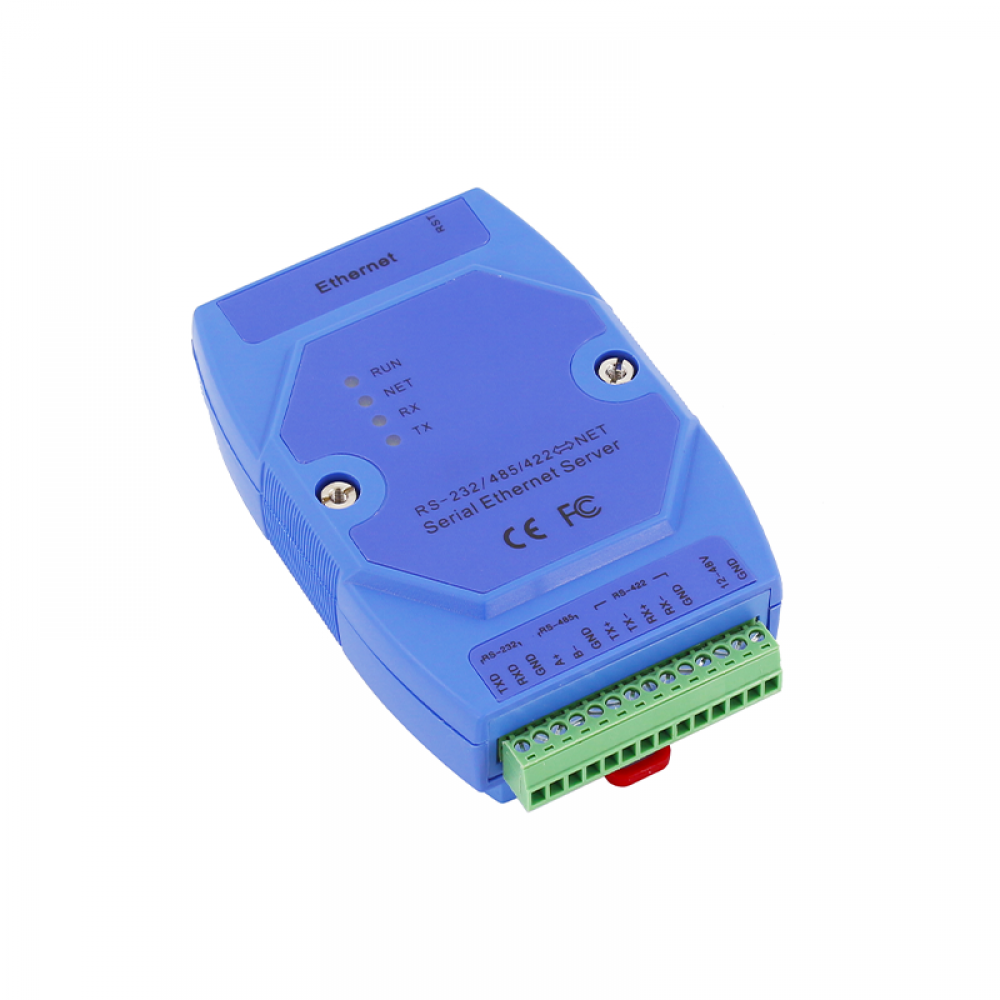

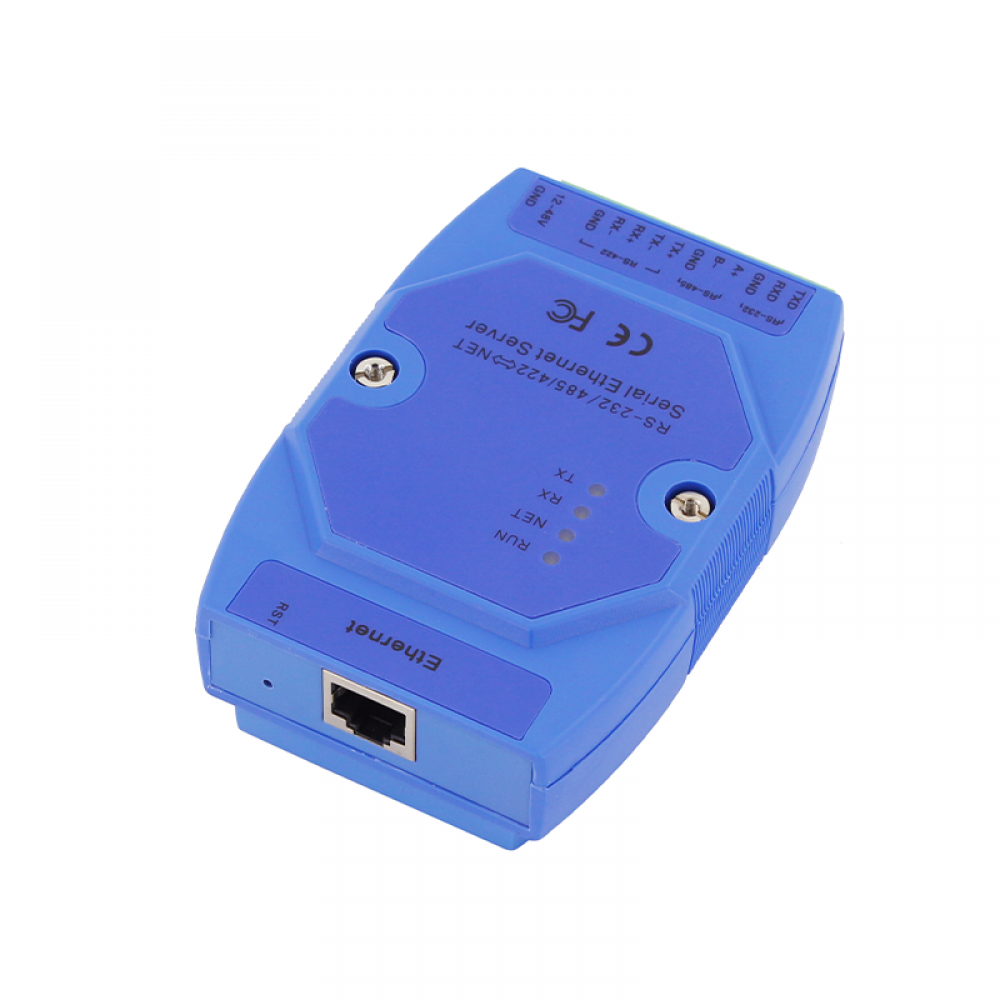

1 ports RS232/RS485/RS422 serial To Ethernet server

Model No.: TSD321

1 *10/100M Tx port, 1 *RS232/RS485/RS422 serial to Ethernet;
Support Windows/Linux COM/TTY driver;
Standard TCP/IP interface and rich application mode;
15KV ESD protection for all serial ports;
Convenient Web/Telnet operation configuration;
Ultra low voltage starts up technology;
Supports V4-Lite management software.

OverviewFeaturesSpecificationApplicationOrder Information

TSD321 series products mainly realize data transmission between Ethernet and serial port (RS-232/RS-485/RS-422).
This series of products is based on the 32-bit ARMCortex-M4 master CPU to realize one Ethernet interface and
one serial port communication and data exchange. These series of products converts serial devices
into Ethernet network communication in industrial automation fields

1 *10/100M Tx port, 1 *RS232/RS485/RS422 serial to Ethernet
Ultra-low power design
Support Windows/Linux COM/TTY driver
Standard TCP/IP interface and rich application mode;
15KV ESD protection for all serial ports;
Convenient Web/Telnet operation configuration
Ultra low voltage starts up technology;
Supports V4-Lite management software

Technical parameters
Standard	IEEE802.3u, IEEE802.3x
protocol	TCP, UDP, TCP/ IP, ICMP
CPU Parameter
CPU	ARM Cortex-M4 core 100MHz/32-bit
RAM	128KB
FLASH	512KB
Build-in watchdog	Support
Interface
Interface form	100M TX port: 10/100Base-TX self-adaptive RJ45 port
Interface form	Serial port: RS-232/RS-485, Industrial Terminals
Ethernet Port : 10/100Base-TX,RJ45 port(Support auto-negotiation, support MDX/MDIX )
Serial port	Data transmission error rate: <10-9
	Interface electrical characteristics: Compliant with 3-wire RS-232, 4-wire RS-422, 2-wire, RS-485 related standards
	Data bit: 8
	Stop bit: 1
	Check Digit: None, Even, Odd, Space, Mark
	Flow Control: Auto-control
	Baud rate: 300bps~115.2kbps
Power indicator
System operation light	RUN
Network indicator light	NET
Serial port transceiver indicator	RX,TX
Power
Power Supply	DC12~ 48V
Power consumption	1.2W@24V
Power protection	Reverse power polarity protection
Physical Characteristics
Shell	DB9 plastic case
Installation	Standard 35mm DIN-rail Mounting
Dimension	102mm×26mm×72mm
Transmission distance
Serial port line	RS-232,15m@9600bps RS-422/RS-485, 1.2km@9600bps
Twisted-pair	100m(CAT5/CAT5e cable)
Working Environment
Operating Temperature	-40°C~70°C
Storage temperature	-40°C~80°C
Ambient Humidity	5%~95%
Warranty
Warranty	3 Years
Certification
Certification	CE, FCC

TSD321

1 RS232/485/422 terminal block to 1 10/100M Ethernet port din-rail mounted serial to Ethernet server, DC12~48V power supply. The power adapter is not included as standard.
