TIE6210-2F series switches can be used for simple application in plug-and-play mode to meet the needs of users.
All electrical ports support auto-negotiation, 10/100Mbps full-duplex and half-duplex, flow control, Auto-MDI/MDI-X and more.
It provides redundant power supply support as well as wide range of DC and AC power inputs.
In terms of structural installation, the switch is a compact switch that takes up less space and is installed using a rail
-
Supports 2x100M FX ports+8x10/100M RJ45 ports
-
Starts working once connected, quick and convenient
-
Supports status display indicator lights
-
Supports industry power supply
-
Supports power-down status reply alarm output
-
Wide temperature range design, fan-less thermal design
-
Industrial level 4 protection, satisfy harsh industrial environment
-
5 years warranty
|
Technical parameters
|
|
 Protocol
Standard
|
IEEE802.3i-10BaseT、IEEE802.3u-100BaseTX/100BaseFX
IEEE802.3x(Flow Control)
|
|
Switch
capability
|
|
MAC
Table Size
|
2k
|
|
Backplane bandwidth
|
2Gbps
|
|
Switch
Delay
|
<5μs
|
|
Interface
|
100M port
|
Number: 10
|
Connector: 1×9 fixed optical port(single/multimode optional, SC/FC/ST interface) or RJ45 100M FX port
|
Baud rate: 100Base-FX(Optical port),Self-adaption 10/100Mbase-TX
|
Terminal block for power input
|
5.08mm terminal block
|
Terminal block for relay alarm
|
5.08mm terminal block ,1A@24VDC
|
|
Communication
distance
|
Twisted-pair
|
100m(CAT5/CAT5e cable)
|
Multi-mode fiber
|
100M multi-mode:1310nm, 2km
|
Single mode fiber
|
100M single mode:1310nm, 20/40km; 1550nm, 60/80km
|
|
LED indicator
lights
|
|
Front
panel LED lights
|
Port
light: LINK/ACT; SPEED
|
|
System
work light: RUN
|
|
Power
status light: PWR1; PWR2
|
|
Power
|
|
Input
power
|
DC110~220V(Wide voltage: DC110~370V)
or AC100~240V(Wide voltage: AC85~264V)
Support
optional for DC12V to 48V, please note that does not support built-in DC48V,
DC48V needs to use external 48V to 12V power adapter.
|
|
Power consumption
|
<6W@(MAX)
|
|
Overload
protection
|
support
|
|
Inversed
protection
|
support
|
|
Redundancy
protection
|
support
|
|
Working Environment
|
|
Operating
Temperature
|
-40°C~80°C
|
|
Storage temperature
|
-40°C~85°C
|
|
Ambient Humidity
|
5%~95%
|
|
Physical Characteristics
|
|
Shell
|
IP40 protection, aluminum
alloy shell
|
|
Installation
|
Standard 35mm DIN-rail Mounting
|
|
Dimension
|
54.0mm*144.0mm*110.0m (W×H×D)
|
|
Industry standard
|
|
EMC
|
EN61000-4-2(ESD), Level 4
EN61000-4-3(RS), Level 4
EN61000-4-4(EFT), Level 4
EN61000-4-5(Surge), Level 4
EN61000-4-6(CS), Level 4
EN61000-4-8,
Level 5
|
|
Impact
|
IEC60068–2-27
|
|
Falling
|
IEC60068-2-32
|
|
Shock
|
IEC60068-2-6
|
|
Warranty
|
|
Warranty
|
5 Years
|
|
Certification
|
CE, FCC, RoHS
|
|

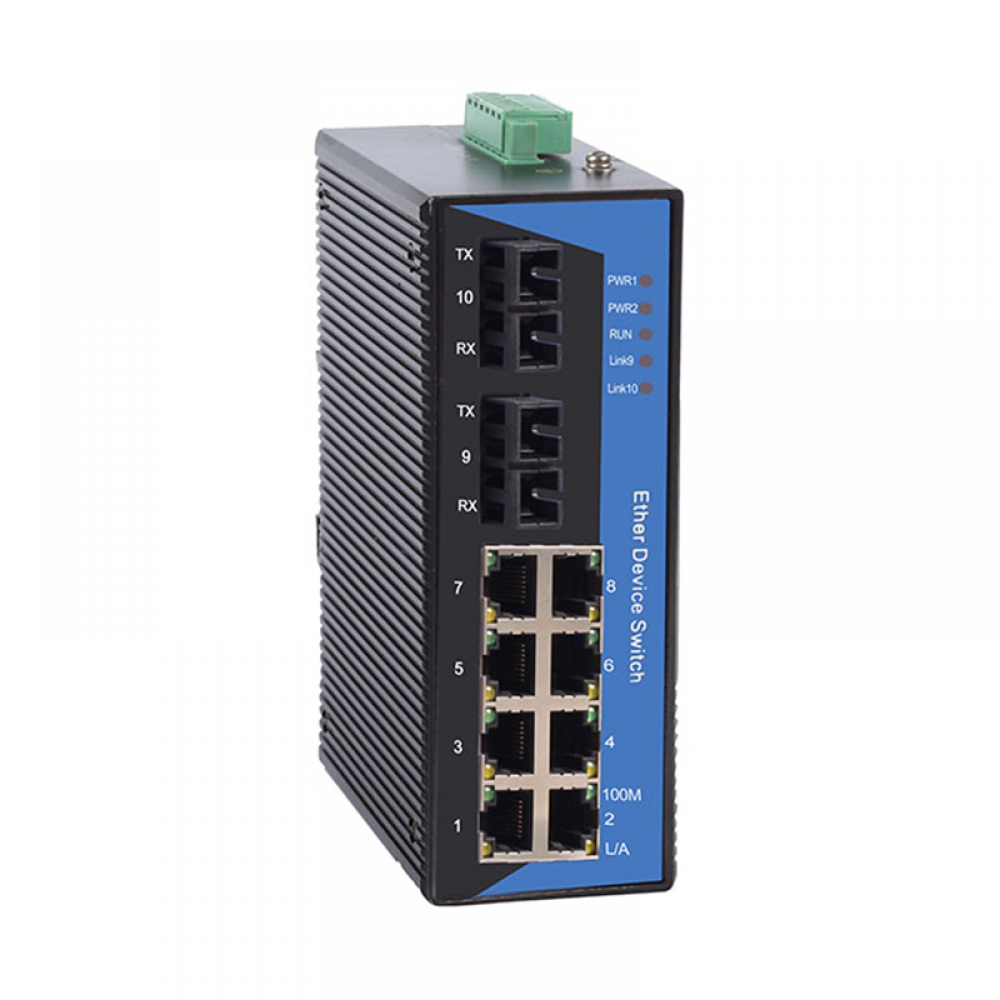

TIE6210-2F
|
2 *10/100M Fx
ports +8 10/100M Tx ports, dual DC12~48V wide voltage power supply
|
|
TIE6210-2F-DC48
|
2 *10/100M Fx
ports +8 10/100M Tx port, dual DC48V(36~72V) isolate power supply
|
|
TIE6210-2F-AD220
|
2* 10/100M Fx +8
10/100M Tx ports, single AC85-264V/DC110~370V isolate power supply
|
