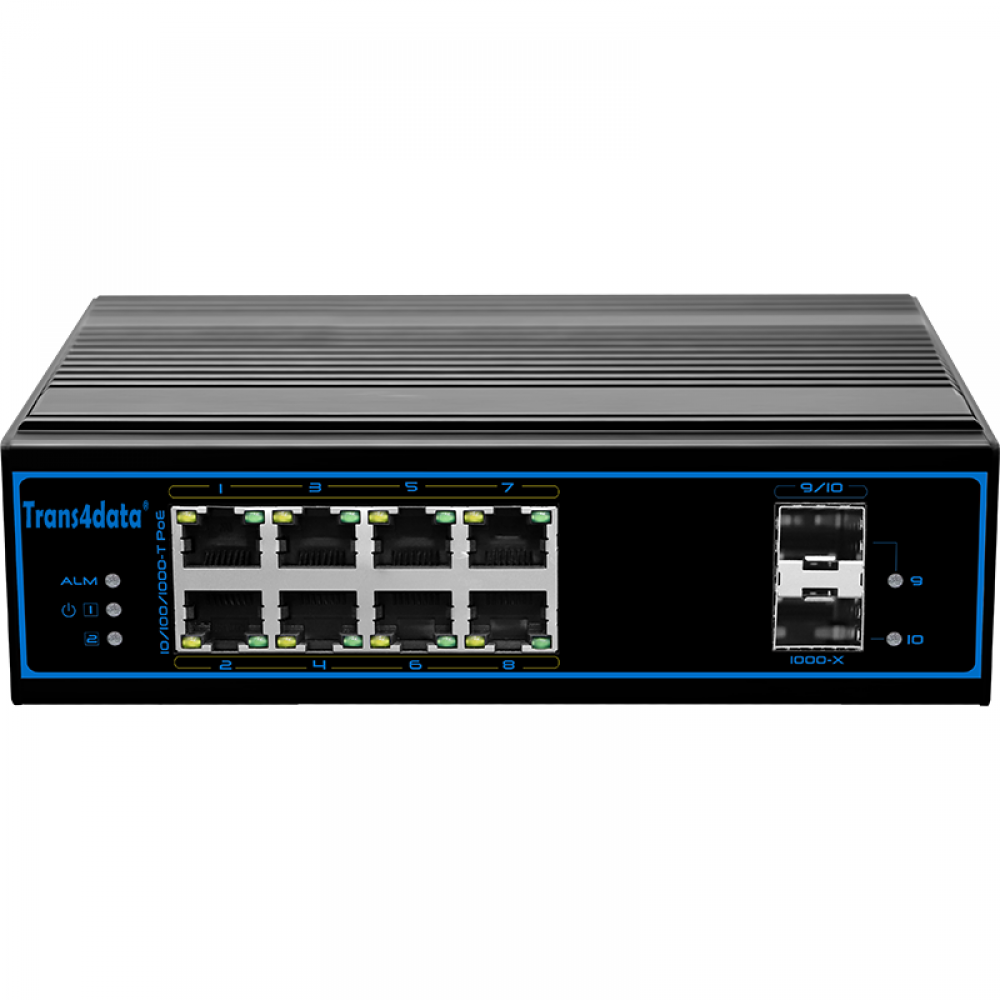

The TIE7210P-2GF it is a 10-port, full gigabit industrial PoE switch that supports 8*10/100/1000M PoE downlink
ports,2*1000M SFP ports.
8*10/100/1000M ports support PoE+, conforming to IEEE 802.3af/at standard.
TIE7210P-2GF provides two modes, Default and VLAN, adapt to various complex environments.
At the same time, support PoE auto-check function, which is specially designed to solve the problems of equipment frozen.
It can automatically detect the frozen PD equipment and restart the ports’output of PSE, and restart the PD device.
It greatly reduces the maintenance difficulty of engineering.
TIE7210P-2GF has the characteristics of reliable work, strong and durable, high performance and so on.
It can be used in security network video monitoring system, network engineering and other occasions
-
8*10/100/1000M PoE downlink ports, 2*1000M SFP ports, and 8 ports PoE power each up to Max 30W;
-
Supports two modes of Default and VLAN to adapt to various complex environments;
-
Supports PoE Auto-check function, which is specially designed to solve the problems of equipment frozen.It can automatically detect the frozen PD equipment and restart the ports’ output of PSE, and restart the PD device. It greatly reduces the maintenance difficulty of engineering ;
-
Supports 6KV surge protection, 8KV contact / 15KV air ESD protection ;
-
Supports relay alarm for power off, network broken, PoE off ;
-
Supports working temperature -40℃～80℃
|
Parameter
|
Specifications
|
|
Power supply
|
Powered by power adaptor
|
|
Range of voltage
|
DC 48~57V
|
|
Consumption
|
Self consumption<15W
|
|
Downlink ports
|
Ports 1~8 10/100/1000Base-T PoE RJ45(IEEE802.3bt,also
support IEEE 802.3af/at)
|
|
Uplink ports
|
Ports 9~10 1000M SFP slots
|
|
PoE Auto-check
|
If detect the frozen PD device, restart it
|
|
Working mode
|
Default mode: normal switch mode.
VLAN mode: ports 1 ~ 8 are isolated from each other and
can only communicate with the uplink port; restrain the network storm; turn
off the flow control.
|
|
Cable and distance
|
Use cat5e/6,100m max(Extend mode max, 250m)
|
|
Standard
|
IEEE802.3,
IEEE802.3u, IEEE802.3z
|
|
Switch fabric
|
20Gbps
|
|
Though put
|
14.88Mpps
|
|
Buffer
|
1M
|
|
MAC address table
|
8K
|
|
Indicator
|
Power: 1 *red ;
Uplink 9~10: green LEDs indicate Link/Act
Downlink 1~8: On RJ45 green LEDs indicate Link/Act,
yellow LEDs indicate PoE
|
|
Protection
|
Surge: 6KV, standard: IEC61000-4-5
ESD: 8KV: contact/15KV: air, standard:IEC61000-4-2
|
|
Working
temperature
|
-40℃~80℃
|
|
Storage
temperature
|
-40℃~85℃
|
|
Humidity
|
0~95%(No condensation)
|
|
Dimension(L×W×H)
|
165 mm×114 mm×50mm
|
|
Material
|
Metal
|
|
Colour
|
Black
|
|
Net-weight
|
1000g
|
|
Model
|
Description
|
|
TIE7210P-2GF
|
8*10/100/1000M PoE ports, 2*1000M SFP ports,
Default, VLAN working mods; PoE Auto-check function;
Support relay alarm for power off, network off, PoE
off ;
DC48~57V power input.
|
