10 port full gigabit managed PoE switch

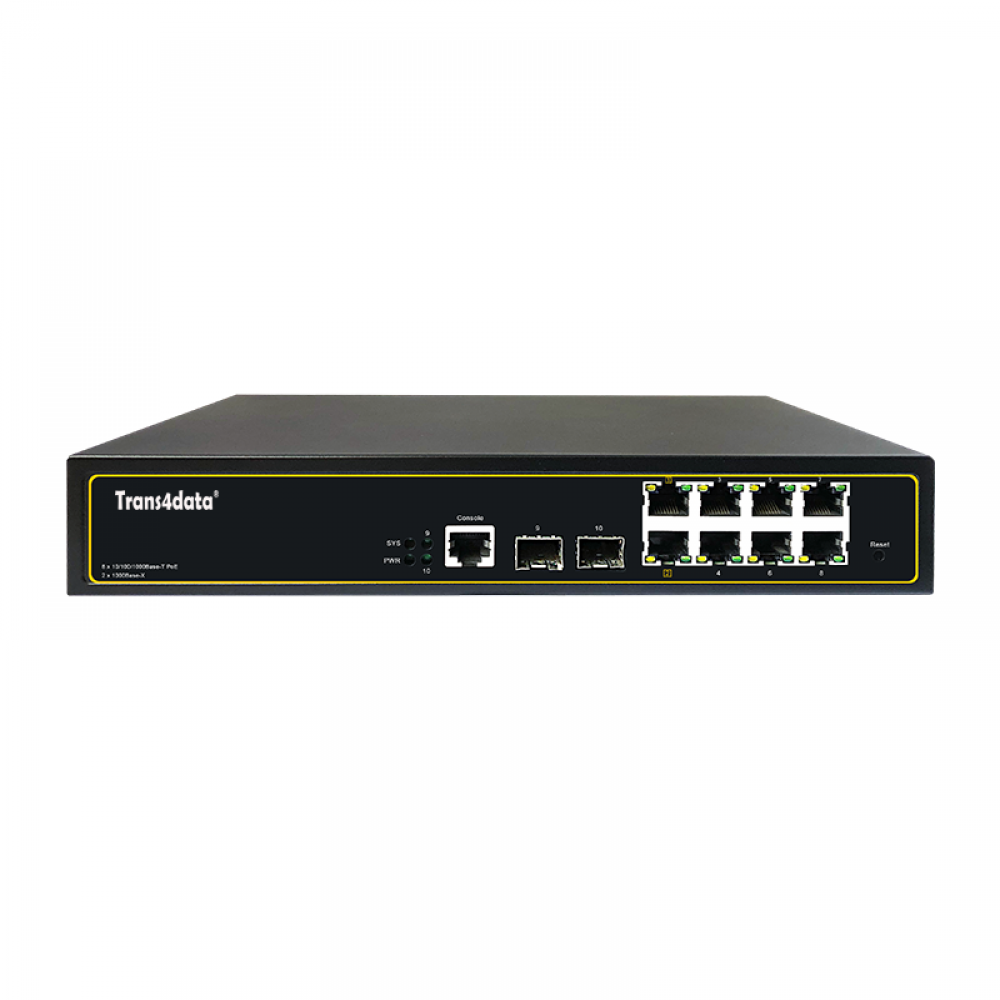

The TMCE3210P-2GF-200 is a 10-port, full gigabit PoE network switch that supports up to 8 *10/100/1000M PoE ports and 2*1000M SFP ports.
8*10/100/1000M ports support PoE+, conforming to IEEE 802.3af/at standard. Two of them support the 90W high-power PoE,
and the other six support the 30W PoE.

It has 200W built-in power supply, support L2 management, such as QoS, VLAN, MSTP, Multi-brocast, ports management and PoE management .
It has the characteristics of reliable work, good for engineering installation, strong and durable, high cost performance and so on.
It can be used in security network video monitoring system, network engineering and other occasions

8 *10/100/1000M PoE ports and 2*1000M SFP ports, with L2 network management;
Supports 2 ports PoE power each up to 90W, 6 port PoE power each up to 30W;
It has 200W built-in power supply,support L2 management, such as QoS, VLAN, MSTP, Multi-brocast, ports management and PoE management;
6KV surge protection, 6KV contact / 8KV air ESD protection;
Supports working temperature -10℃~50℃;
Supports wall mounting and desktop installation.

Hardware

Parameter	Specifications
Power supply	Powered by AC power
Range of voltage	AC 100~240V, 50/60Hz
Consumption	Self consumption<20W, PoE output180W max.
Downlink ports	Ports 1~2 10/100/1000Base-T 90W PoE RJ45(IEEE 802.3bt, also support IEEE8025.3af/at) ; Ports 3~8 10/100/1000 Base-T 30W PoE RJ45(IEEE802.3af/at)
Uplink ports	Ports 9~101000Base-X SFP slots
PoE ports	1-2 ports maximum 90W, 3-8 ports maximum 30W output
Cable and distance	Use cat5e/6，100m max.(Extend mode max.250m)
Standard	IEEE802.3, IEEE802.3u, IEEE802.3z
Switch fabric	20Gbps
Though put	14.88Mpps
Buffer	1M
MAC address table	8K
Indicator	Power: 1 *red ; Downlink1~8: On RJ45 green LEDs indicate Link/Act,yellow LEDs indicate PoE Uplink 9~10: green LEDs indicate Link/Act
Protection	Surge: 6KV, standard: IEC61000-4-5 ESD: 6KV: contact/8KV: air, standard:IEC61000-4-2
Working temperature	-10℃~50℃
Storage temperature	-40℃~85℃
Humidity	0~95%(No condensation)
Dimension(L×W×H)	270 mm×180 mm×44mm
Material	Metal
Colour	Black
Net-weight	800g

Software

Port Management	Support Port Enable/Disable;
	Support Port Rate Settings;
	Support Port Full-duplex Mode;
	Support IEEE802.3x Flow Control;
	Support Port Name Change;
VLAN	Support 4K VLAN
	Support 802.1Q Protocol-Based VLAN;
	Support Port-Based VLAN;
QoS	Support QoS;
	Support 8-Level Priority management for switching;
	Support WRR;
	Support 820.1P and DSCP Priority;
Multicast Management	Support SNMP V1/V2/V3 Protocol;
Multicast Management	Support IGMP Snooping;
PoE Management	Support Total Power Consumption Control;
	Support single port PoE ON/OFF;
	Support Single Port 30W max. Power Change and Port Output Priority;
Safety Character	Support IP、MAC、Port、VLAN Combination and Binding;
	Support MAC address auto-learning, aging& filter;
	Support Port Isolation, Port Speed-Limited;
	Support RSTP;
	Support Fast-Ring;
	Support 5 groups of 8-Port trunk;
	Support RADIUS Authentication& 802.1X Authentication;
System Management& Maintenance	Support WEB Management, CLR Settings and telnet Settings;
	Support CLR Settings;
	Support FTP/TFTP/HTTP Web Upgrading;
	Support Flow Calculate;
	Support MAC address Form Search;
	Support IP Address, DNS Server Change
	Support Username& Password Change;
	Support History Record, Journal management;
	Support System settings Backup;
	Support SSH Server RFC4251, RFC 4252,RFC 4253, RFC 4254, RFC 8332
	Support SNMP RFC 1157, RFC 3414, RFC 3416

Model

Description

TMCE3210P-2GF-200

With 8 *10/100/1000M PoE ports and 2*1000M SFP ports;

Support 2 ports PoE power each up to 90W, 6 ports PoE power each up to 30W；

It has 200W built-in power supply, L2 network management;

wall mounting and desktop installation.

10 ports full gigabit managed PoE switch
