10 ports full gigabit unmanaged PoE switch

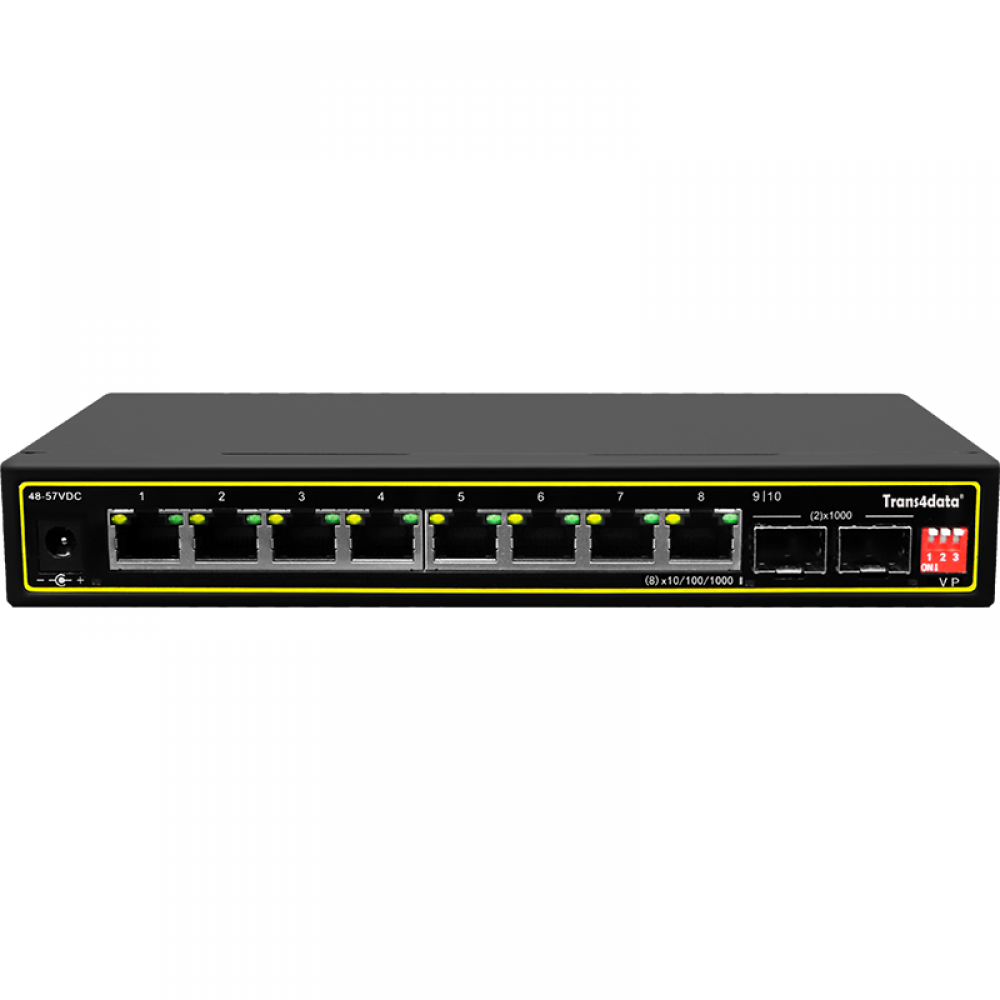

TCE3210P-2GF-200 is a 10-port full gigabit unmanaged switch that supports up to 8*10/100/1000M PoE downlink ports
and 2*1000M SFP uplink ports. 8*10/100/1000M ports support PoE+, conforming to IEEE 802.3af/at standard,
single port PoE power up to 30W, the maximum total power is 195W.

TCE3210P-2GF-200 provides mode of VLAN to adapt to various complex environments. At the same time,
support PoE auto-check function, which is specially designed to solve the problems of equipment frozen.
It can automatically detect the frozen PD equipment and restart the ports’output of PSE, and restart the PD device,
greatly reducing the maintenance difficulty of engineering.

It has a high anti-interference ability, the product supports 6KV surge protection, and 6KV contact / 8KV air ESD protection.
It supports wall hanging and desktop installation, reliable and durable, and can be used in security network video monitoring,
network engineering and other occasions.

8*10/100/1000M PoE downlink ports and 2*10/100/1000M SFP uplink ports.
The maximum PoE power of single port is 30W, and the maximum PoE power of the whole machine is 195W.
Supports VLAN modeto adapt to various complex environments.
Supports PoE Auto-check function, which is specially designed to solve the problems of equipment frozen. It can automatically detect the frozen PD equipment and restart the ports’output of PSE, and restart the PD device. It greatly reduces the maintenance difficulty of engineering.
6KV surge protection, 6KV contact / 8KV air ESD protection

Parameter	Specifications
Power supply	AC power supply
Range of voltage	AC100-240V, 50/60Hz
Consumption	Self consumption<5W, PoE output max. 195W
Downlink ports	Ports 1~8 10/100/1000Base-T 30W PoE RJ45(IEEE 802.3af/at)
Uplink ports	Ports 9~10 1000Base-X SFP
PoE ports	Ports 1~8 support IEEE802.3af/at, end-span, 30W per port Max.
PoE Auto-check	If detect the frozen PD device, restart it
Working mode	VLAN mode: ports 1 ~ 8 are isolated from each other and can only communicate with the uplink port; restrain the network storm; turn off the flow control.
1~8 PoE ports	Support IEEE 802.3af/at, end-span, single port≦30W
Cable and distance	Use cat5e/6,100m max.
Standard	IEEE802.3, IEEE802.3u, IEEE802.3z
Switch fabric	20Gbps
Though put	14.88Mpps
Buffer	4M
MAC address table	16K
Indicator	Power: 1 *red ; Uplink9, 10: On RJ45 green LEDs indicate Link/Act Downlink 1~8: On RJ45 green LEDs indicate Link/Act, yellow LEDs indicate PoE
Protection	Surge: 6KV, standard: IEC61000-4-5 ESD: 6KV: contact 8KV: air, standard:IEC61000-4-2
Working temperature	-10℃~50℃
Storage temperature	-40℃~85℃
Humidity	0~95%(No condensation)
Dimension(L×W×H)	240mm×175mm×44mm
Material	Metal
Colour	Black
Net-weight	500g

Model	Description
TCE3210P-2GF-200	810/100/1000M PoE RJ45 ports, 210/100/1000M SFP ports. VLAN working mode.
