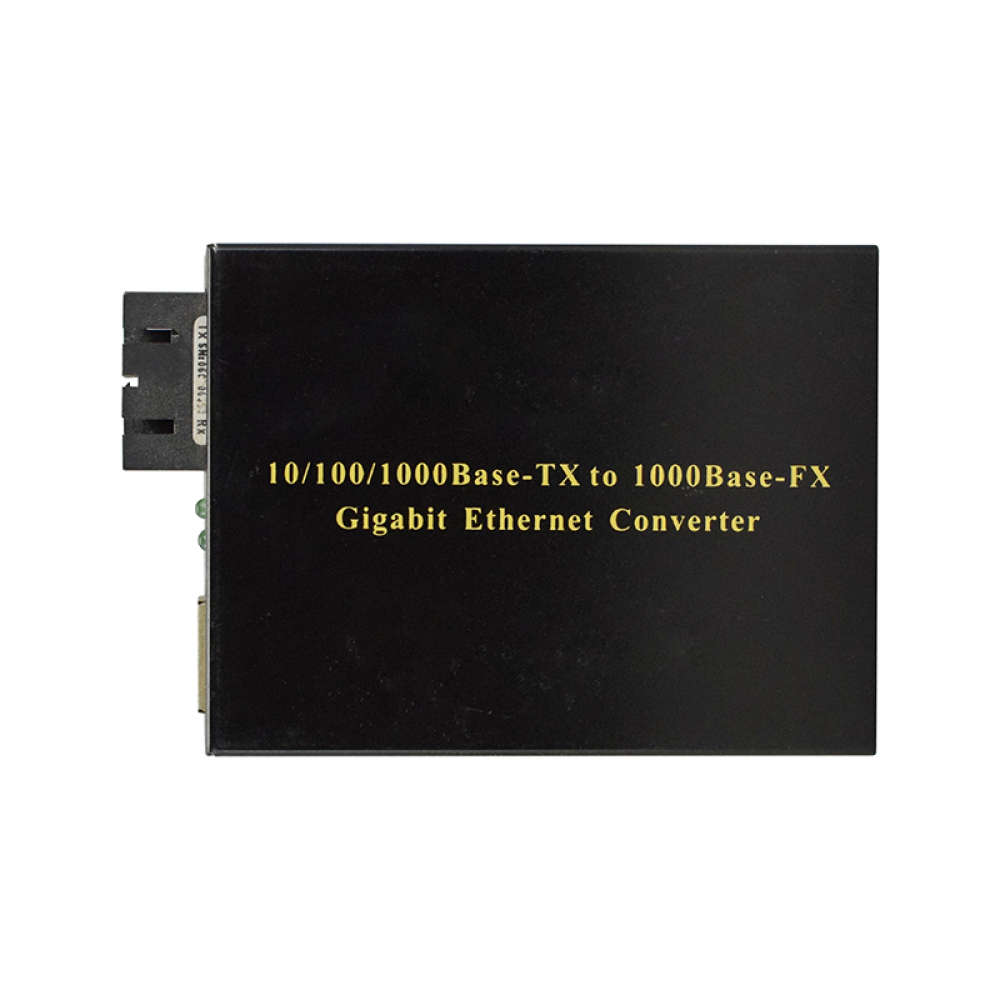

TMC2100 series are the 10/100/1000Mbps adaptive Gigabit Ethernet media converter adopts switching technology
to fulfill media conversion. It complies with IEEE802.3, IEEE802.3u, IEEE802.3z and IEEE802.3ab standards.
It supports two types of media network connections: 10Base-T/100Base-TX/1000Base-T, and 1000Base-SX,
inter-converting electrical signals of 10Base-T/100Base-TX/1000Base-T twisted pairs with optical signals of 1000Base-SX.
It extends the transmission distance of network from 100m via copper cable to 500m via fiber optical cable.
It supports transmission in multi-mode dual fiber, single mode dual fiber, single mode single fiber.
-
Complies with IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3z 1000Base-SX
-
Media conversion between 10/100/1000Base-T and 1000Base-SX
-
10/100/1000M media converter with SFP slot is available
-
Supporting auto-sensing full-duplex and half-duplex operation
-
Supporting auto-sensation of MDI/MDI-X, facilitating system commissioning and installation
-
Supporting the transmission of extra-long VLAN packets
-
Supporting Quality of Service (QoS) and ensuring the transmission of VoIP packets;
-
Store-and-Forward mechanism
-
Options in multi-mode dual fiber, single mode dual fiber, single mode single fiber.
|
Parameter
|
Specifications
|
|
Access mode
|
10/100/1000Mbps
Gigabit Ethernet
|
|
Standard
|
IEEE802.3
10Base-T Ethernet, IEEE802.3u 100Base-TX Fast Ethernet, IEEE802.3ab
1000Base-T ,
IEEE802.3z 1000Base-SX
Gigabit Ethernet
|
|
Wavelength
|
850nm/1310nm/1550nm
|
|
Transmission
distance
|
Multi-mode Dual-fiber: 220m (62.5/125μm)/550m
(50/125μm)
Single mode Dual-fiber: 20/40/60/80/100km
|
|
Port
|
One RJ45 port:
Connecting with
STP/UTP category-5 twisted pairs, EIA568A/B
One optical
port:
Multi-mode
Dual-fiber: SC/LC(SFP) (50, 62.5/125μm)
Single mode Dual-fiber: SC/FC/LC(SFP) (9/125μm)
Single mode Single fiber: SC/FC/LC(SFP) (9/125μm)
|
|
BER
|
<10-9
|
|
MTBF
|
100,000 hours
|
|

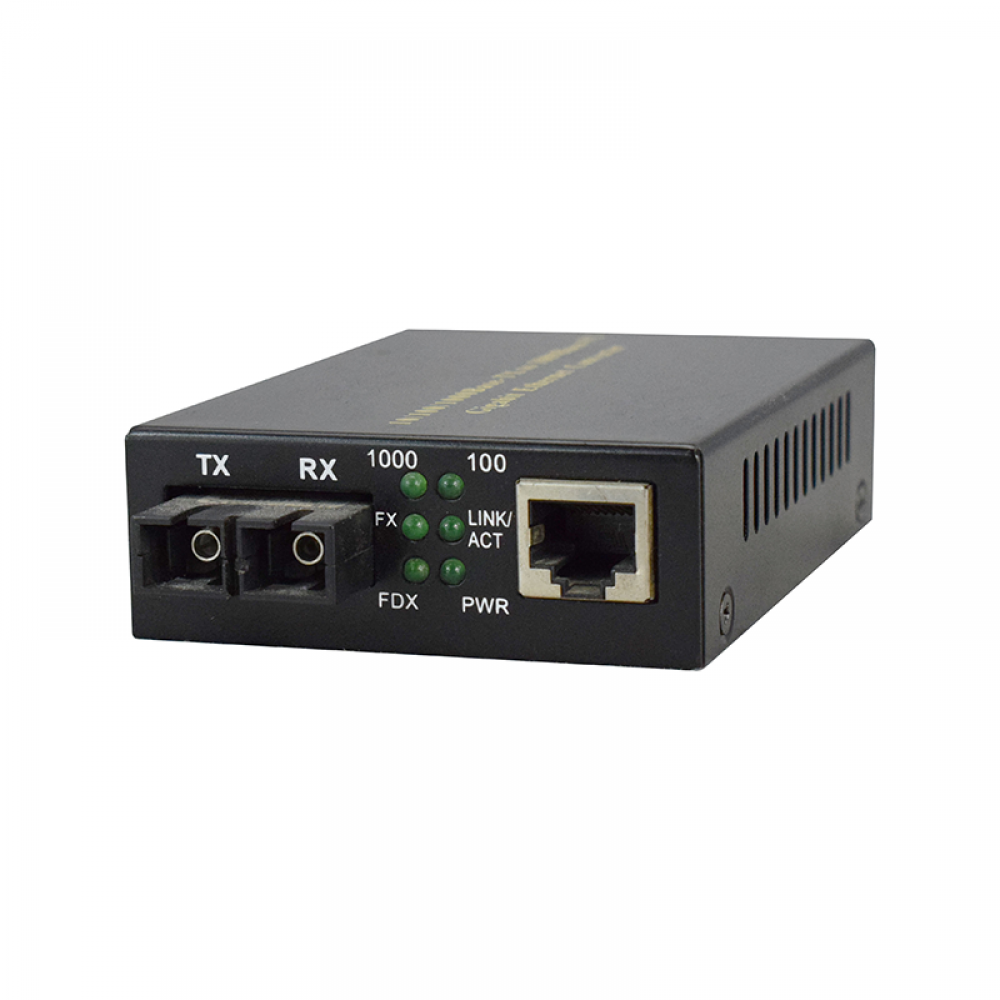

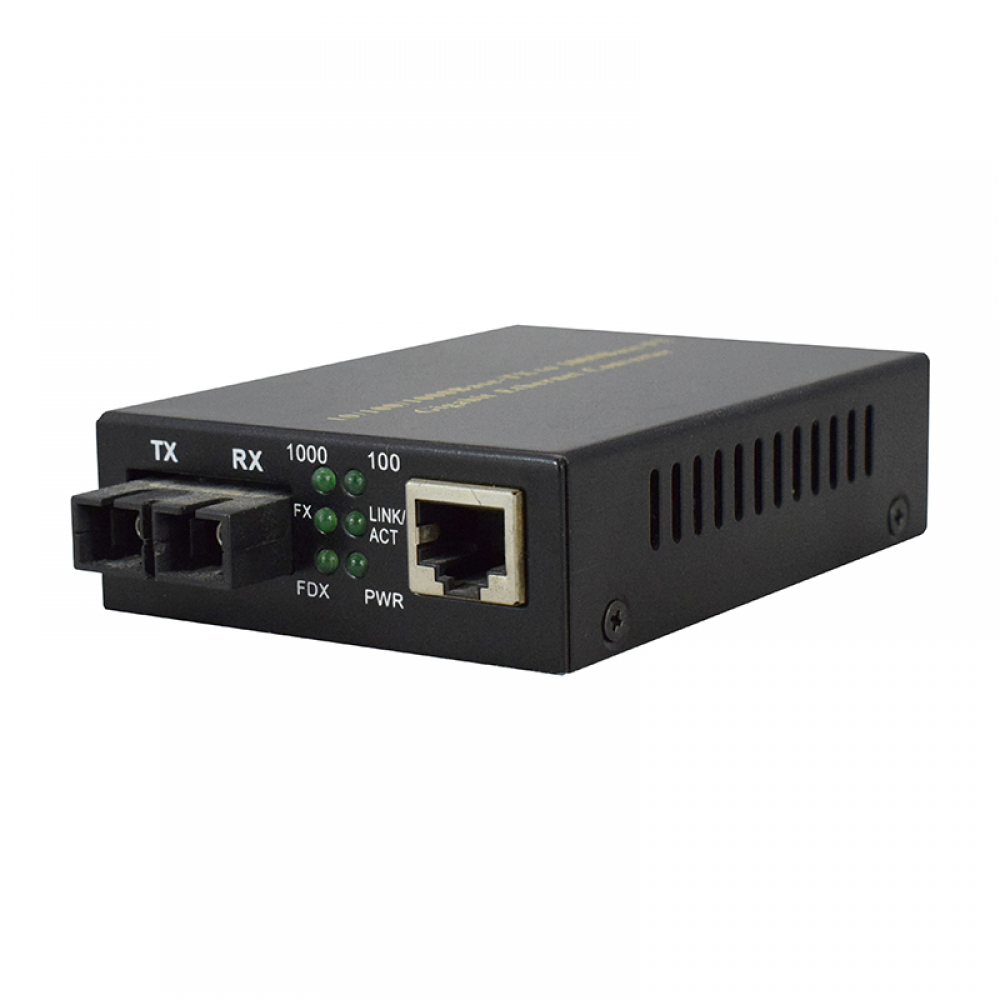

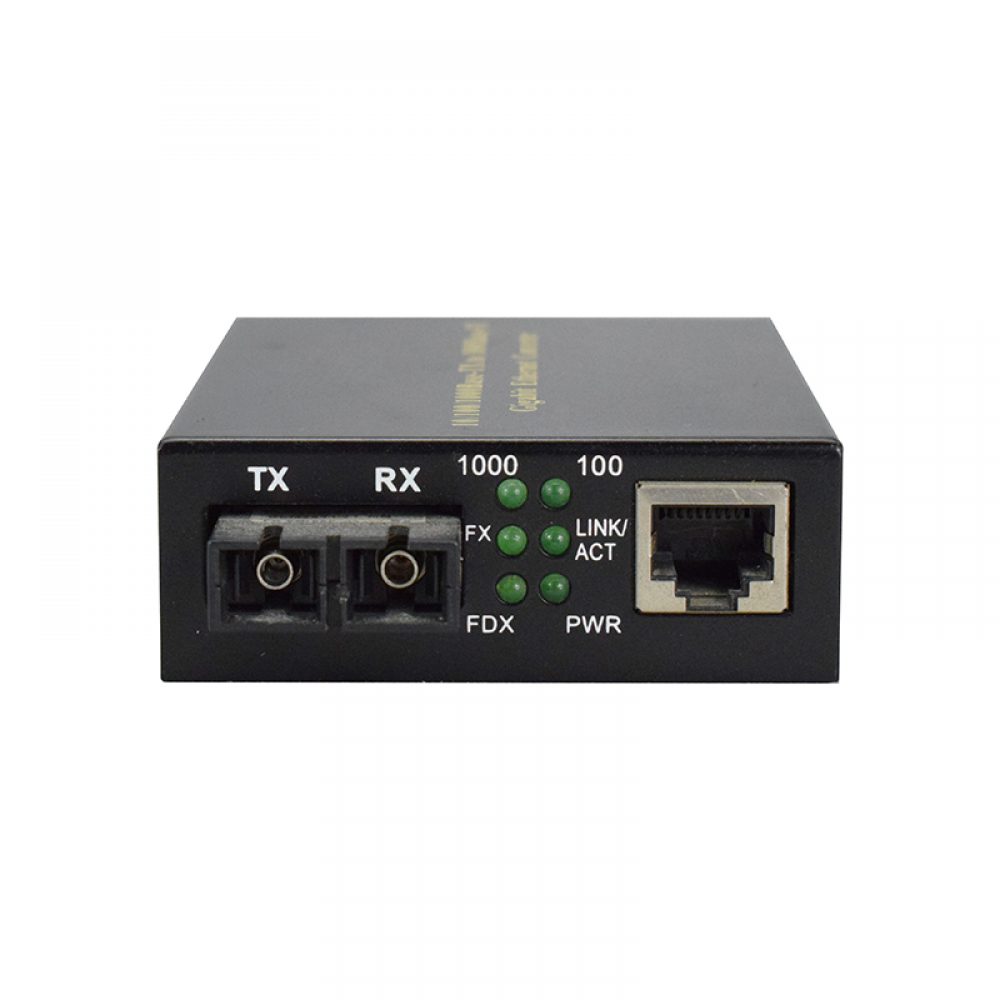

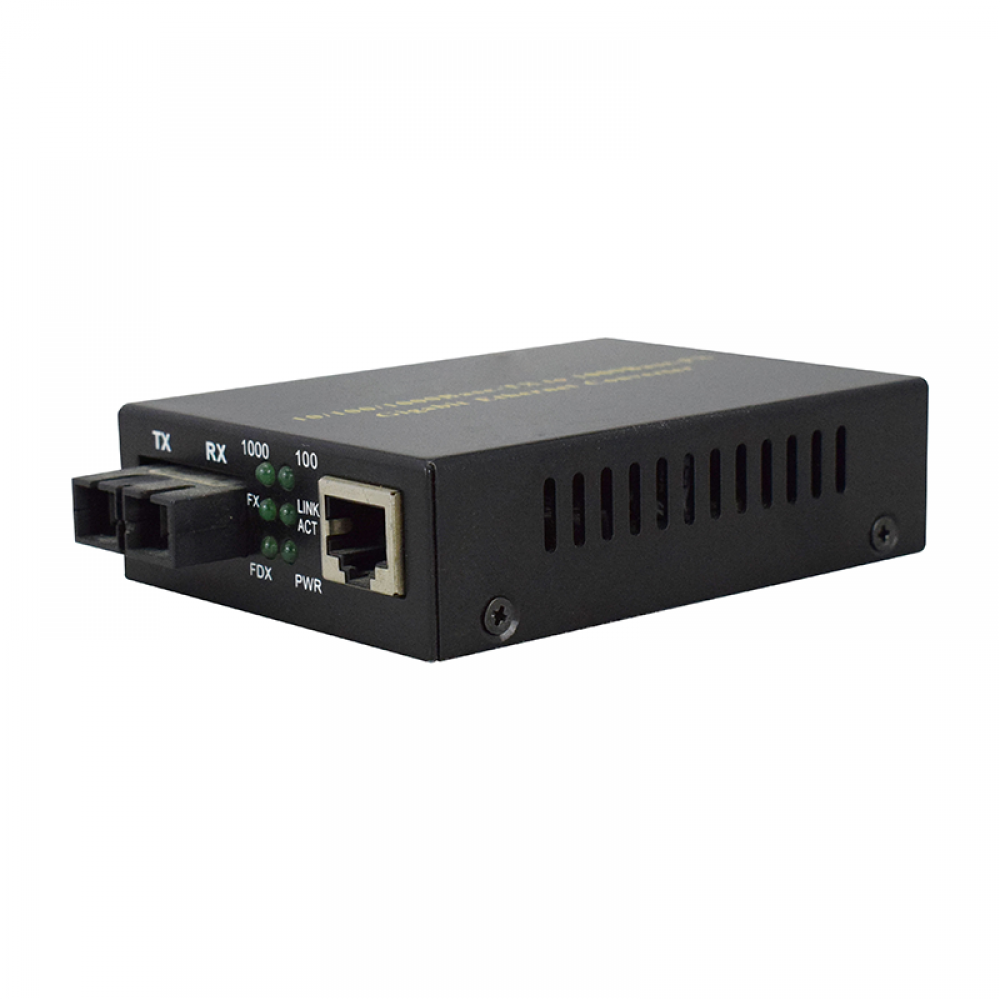

LED indicator
|
POWER (power
supply), FX LINK (optical link action)
TP LINK1000 (TP
cable rate1000M), TP LINK100 (TP cable rate 100M)
TP ACT (TP cable
packet forwarding action), FDX (TP full duplex operation)
|
|
Power supply
|
External:
AC90~264V/DC100~380V input, 5V 2A output
|
|
Power consumption
|
Max. 5W
|
|
Operating
temperature
|
-10~55ºC
|
|
Operating
humidity
|
5%~90%
|
|
Maintaining
temperature
|
-40~70ºC
|
|
Maintaining
humidity
|
5% ~ 90%
non-condensing
|
|
Dimensions
|
71mm (W)×94mm (D)×26 mm (H) (external power supply)
|
|
TMC2100
|
10/100/1000Base-T to 1000Base-F,mutli-mode,500m,SC standalone, external power adaptor
|
|
TMC2100S-20
|
10/100/1000Base-T to 1000Base-F,single-mode,20km,SC standalone, external power adaptor
|
|
TMC2100S-40
|
10/100/1000Base-T to 1000Base-F,single-mode,40km,SC standalone, external power adaptor
|
|
TMC2100S-60
|
10/100/1000Base-T to 1000Base-F,single-mode,60km,SC standalone, external power adaptor
|
|
TMC2100S-80
|
10/100/1000Base-T to 1000Base-F,single-mode,80km,SC standalone, external power adaptor
|
|
TMC2100S-100
|
10/100/1000Base-T to 1000Base-F,single-mode,100km,SC standalone, external power adaptor
|
