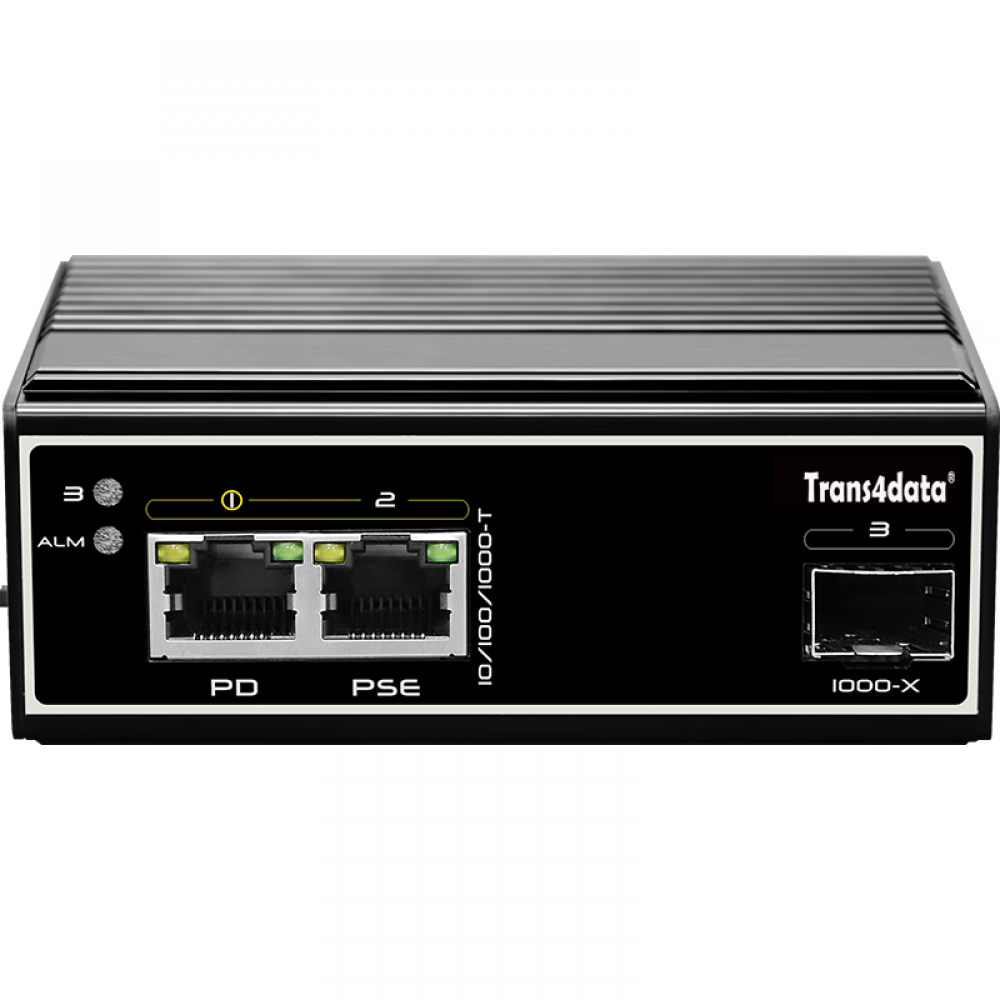

1000M PD and PSE downlink Mini size industrial PoE switch

Model No.: TIE5203P-1GPD-1GF-Mini

  • 1*10/100/1000M 30W PD, 1*10/100/1000M 30W PSE downlink port, 1*1000M SFP port ;
  • Supports relay alarm for power off, network off and PoE off;
  • 6KV surge protection, 6KV contact/8KV air ESD protection;
  • Supports working temperature -40℃~80℃;
  • 5 years warranty
OverviewFeaturesSpecificationApplicationOrder Information
TIE5203P-1GPD-1GF-Mini is a 3-port industrial PoE switch that supports up to 1*10/100/1000M 30W PD, 1*10/100/1000M 30W PSE downlink port,
1*1000M SFP port.  2*10/100/1000M ports support PoE+, conforming to IEEE 802.3af/at standard.

TIE5203P-1GPD-1GF-Mini has the characteristics of reliable work, strong and durable, high performance and so on.
It can be used in security network video monitoring system, network engineering and other occasions.
Supports relay alarm for power off, network off, PoE off; 6KV surge protection, 6KV contact/8KV air ESD protection;
Supports Din-rail installation, which is reliable and durable, and can be used in security network video monitoring, network engineering
and other occasions
  • 1*10/100/1000M 30W PD, 1*10/100/1000M 30W PSE downlink port, 1*1000M SFP port ;
  • Supports relay alarm for power off, network broken, PoE off;
  • 6KV surge protection, 6KV contact/8KV air ESD protection;
  • Supports Din-rail installation, which is reliable and durable, and can be used in security network video monitoring, network engineering and other occasions.
  • Supports working temperature -40℃~80℃

Parameter

 Specifications

Power supply

Powered by power adaptor

Range of voltage

DC 48~57V

Consumption

Self consumption<5W

Downlink ports

Ports 1: 10/100/1000Base-T 30W PD ;

Ports 2: 10/100/1000Base-T 30W PSE ;

Uplink ports

Port 3: 1000Base-X SFP

Relay alarm

Relay alarm for power off, network off, PoE off;

Cable and distance

Use cat5e/6,100m max

Standard

IEEE802.3, IEEE802.3u, IEEE802.3z

Switch fabric

6 Gbps

Though put

4.46 Mpps

Buffer

1M

MAC address table

8K

Indicator

Uplink3: Green LEDs indicate Link/Act

Downlink 1~2: On RJ45 green LEDs indicate Link/Act

Yellow LEDs indicate PoE

Protection

Surge: 6KV, standard: IEC61000-4-5

ESD: 6KV: contact / 8KV: air, standard:IEC61000-4-2

Working temperature

-40~80

Storage temperature

-40~85

Humidity

0~95%(No condensation)

Dimension(L×W×H)

101 mm×65 mm×36mm

Material

Aluminium alloy

Colour

Black

Net-weight

300g



Model

Description

TIE5203P-1GPD-1GF-Mini

With 1*10/100/1000M 30W PD, 1*10/100/1000M 30W PSE downlink ports, 1*1000M SFP port; 2*DC48-57V power supply(Power adaptor buy extra);

Supports relay alarm function for power off, network off and PoE off.
