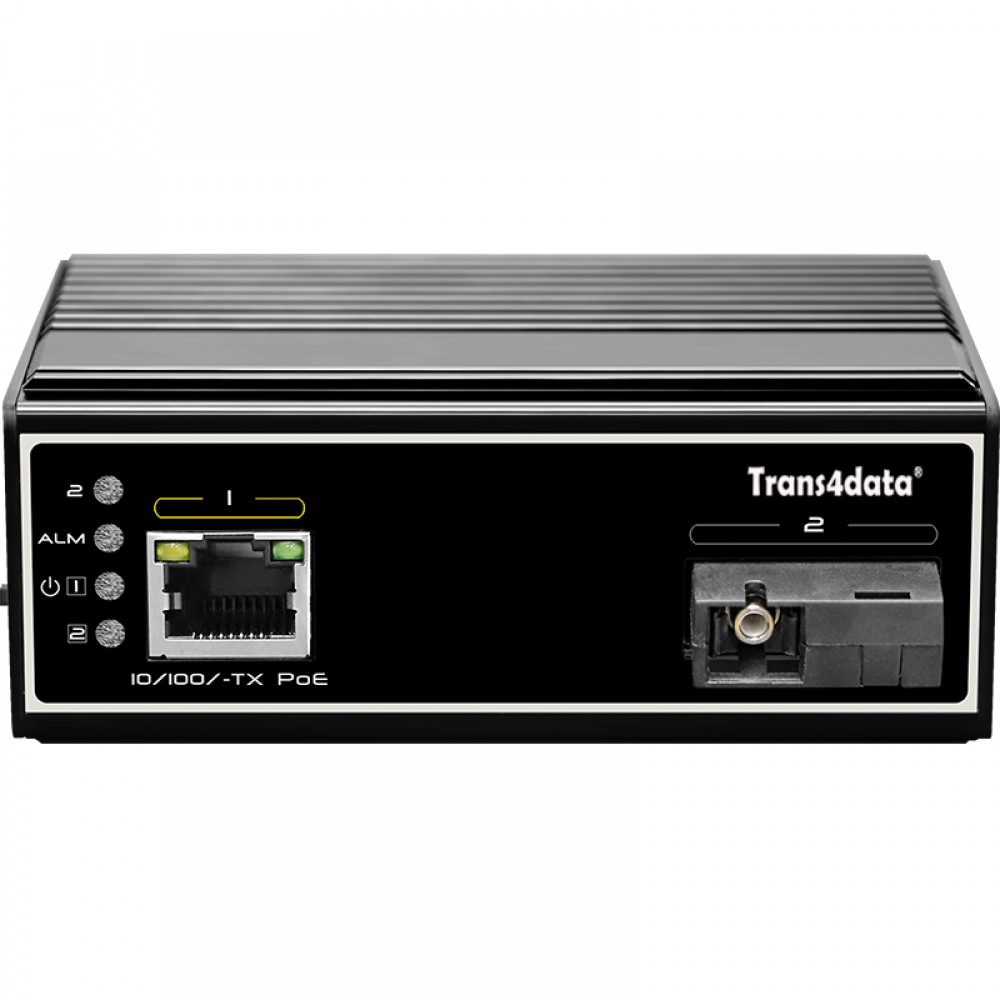

10/100/1000M SC type industrial media converter

10/100/1000M SC type industrial PoE media converter

Model No.: TIMC2100P-SC

1*10/100/1000M RJ45 PoE port and 1*1000M SC port;
Supports relay alarm for power off, network off and PoE off;
Supports 6KV surge protection, 6KV contact / 8KV air ESD protection;
Supports working temperature -40℃～80℃;
5 years warranty

OverviewFeaturesSpecificationApplicationOrder Information

The TIMC2100P-SC (SC connector) is a 2-port industrial media converter that supports up to 1 *10/100/1000M RJ45 PoE port
and 1*1000M SC slot. It supports relay alarm for power off, network off and PoE off. It has the characteristics of reliable work,
strong and durable, high cost performance and so on. It can be used in security network video monitoring system,
network engineering and other occasions.

1*10/100/1000M RJ45 PoE port and 1*1000M SC port;
Supports relay alarm for power off, network off and PoE off;
Supports 6KV surge protection, 6KV contact / 8KV air ESD protection;
Supports working temperature -40℃～80℃.

Parameter	Specifications
Power supply	Powered by power adaptor
Range of voltage	DC 48~57V
Consumption	Self consumption<5W
Downlink ports	Ports 1: 10/100/1000Base-T PoE 30W(IEEE802.3af/at standard) RJ45 port
Uplink ports	Ports 2: 1000Base-X SFP/SC/ST
Relay alarm	1 channel relay alarm output for power off, ports link down and PoE off
Cable and distance	Use cat5e/6,100m max
Standard	IEEE802.3, IEEE802.3u, IEEE802.3z
Switch fabric	4 Gbps
Though put	2.976 Mpps
Buffer	1M
MAC address table	8K
Indicator	Power: 2 *red ; Uplink2: Green LEDs indicate Link/Act Downlink 1: Yellow LED indicate PoE and green LEDs indicate Link/Act
Protection	Surge: 6KV, standard: IEC61000-4-5 ESD: 6KV: contact/8KV: air, standard:IEC61000-4-2
Working temperature	-40℃~80℃
Storage temperature	-40℃~85℃
Humidity	0~95%(No condensation)
Dimension(L×W×H)	101mm×65 mm×36mm
Material	Aluminium
Colour	Black
Net-weight	300g

Model

Description

TIMC2100P-SC

With 1*10/100/1000M PoE(IEEE802.3af/at standard) port and 1*1000M SFP/SC/ST port/Fixed Fiber port;

2*DC48-57V power supply(Power adaptor buy extra);

Supports relay alarm function for power off, network off and PoE off.
