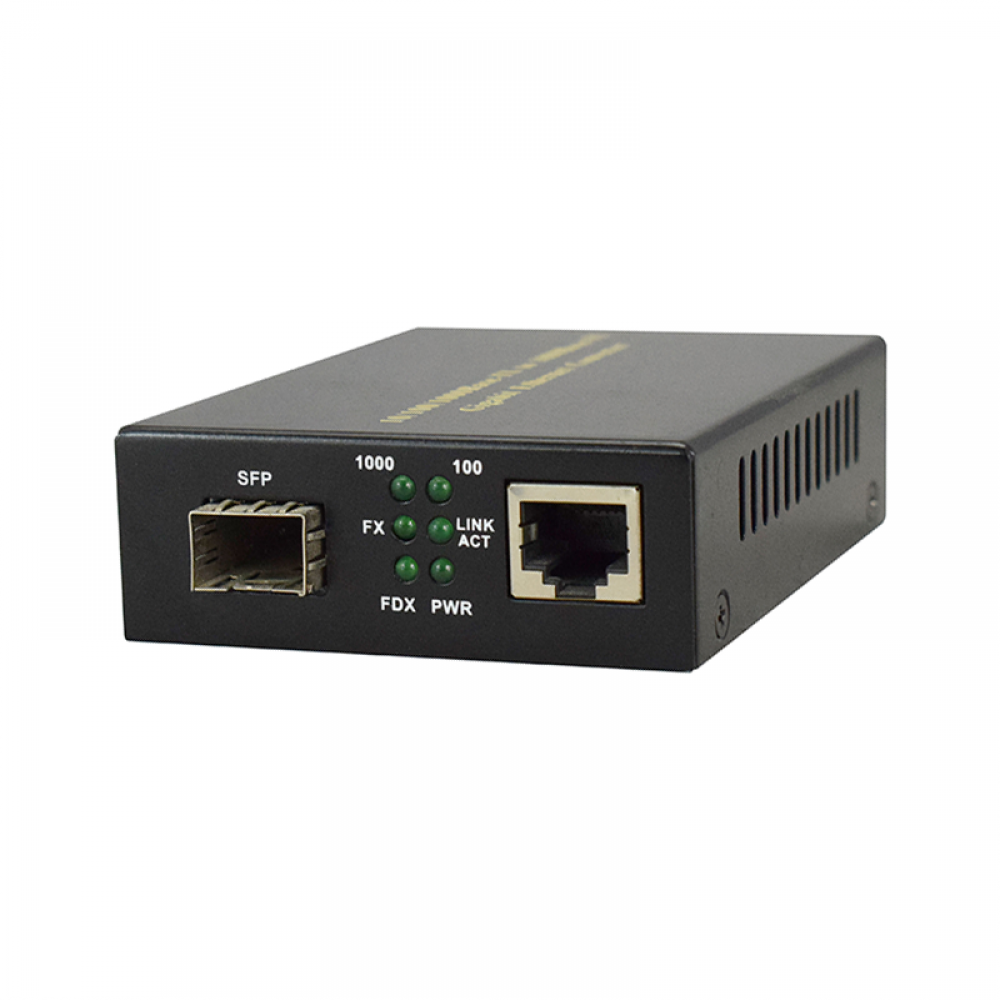

TMC2100SFP 10/100/1000Mbps adaptive Gigabit Ethernet media converter adopts switching technology
to fulfill media conversion. It complies with IEEE802.3, IEEE802.3u, IEEE802.3z and IEEE802.3ab standard.
It supports two types of media network connections: 10Base-T/100Base-TX/1000Base-T, and 1000Base-SX/LX,
inter-converting electrical signals of 10Base-T/100Base-TX/1000Base-T twisted pairs with optical signals of
1000Base-SX/LX. It extends the transmission distance of network from 100m via copper cable to 100 km via
fiber optical cable.
-
Supporting inter-conversion between adaptive 10Base-T/100Base-TX/1000Base-T with 1000Base-SX/LX
-
Supporting full-duplex and half-duplex and its auto-sensed
-
Supporting auto-sensation of MDI/MDI-X, facilitating system commissioning and installation
-
Supporting the transmission of extra-long VLAN packets
-
Supporting Quality of Service (QoS) and ensuring the transmission of VoIP packets
-
High compatibility capacity: compatible with the network card, hub, switch and repeater of other brands
-
Options in single mode dual fiber, multi-mode dual fiber, and single mode in single fiber;
-
Store-and-Forward mechanism
|
Parameter
|
Specifications
|
|
Access mode
|
10/100/1000Mbps Gigabit Ethernet
|
|
Standard
|
IEEE802.3 10Base-T Ethernet,
IEEE802.3u 100Base-TX/FX Fast Ethernet, IEEE802.3ab 1000Base-T ,
IEEE802.3z 1000Base-SX/LX Gigabit Ethernet
|
|
Wavelength
|
850nm/1310nm/1550nm
|
|
Transmission distance
|
Multi-mode Dual-fiber: 220m
(62.5/125μm)/550m (50/125μm)
Single mode Dual-fiber:
20/40/60/80 Km
Single mode Single fiber:
20/40/60/80 Km
Category-5 twisted pairs: 100m
|
|
Port
|
One RJ45 port:
Connecting with STP/UTP category-5
twisted pairs
One optical port:
Multi-mode Dual-fiber: SFP (50,
62.5/125μm)
Single mode Dual-fiber: SFP
(9/125μm)
Single mode Single fiber: SFP
(9/125μm)
|
|
Conversion means
|
Media conversion
|
|
BER
|
<10-9
|
|
MTBF
|
100,000 hours
|
|

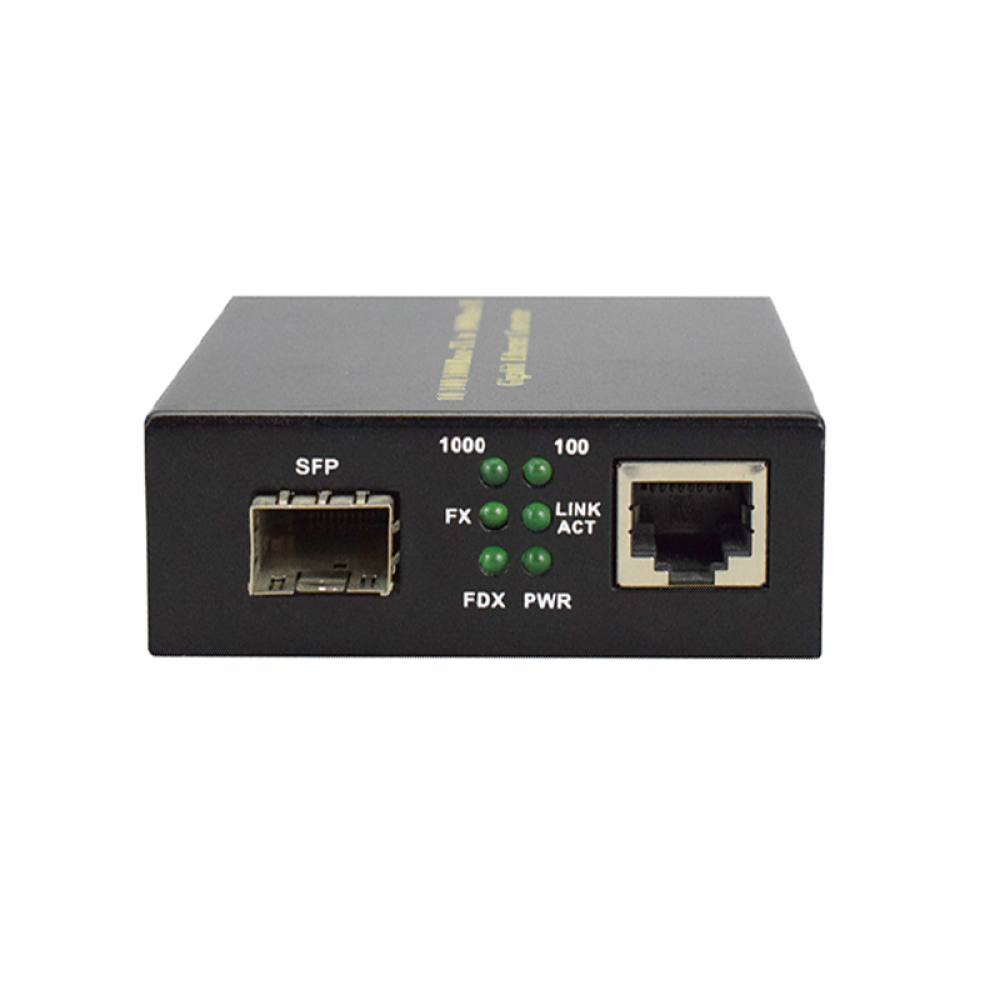

LED indicator
|
POWER (power supply), FX LINK
(optical link action)
TP LINK1000 (TP cable rate1000M),
TP LINK100 (TP cable rate 100M)
TP ACT (TP cable packet forwarding
action)
|
|

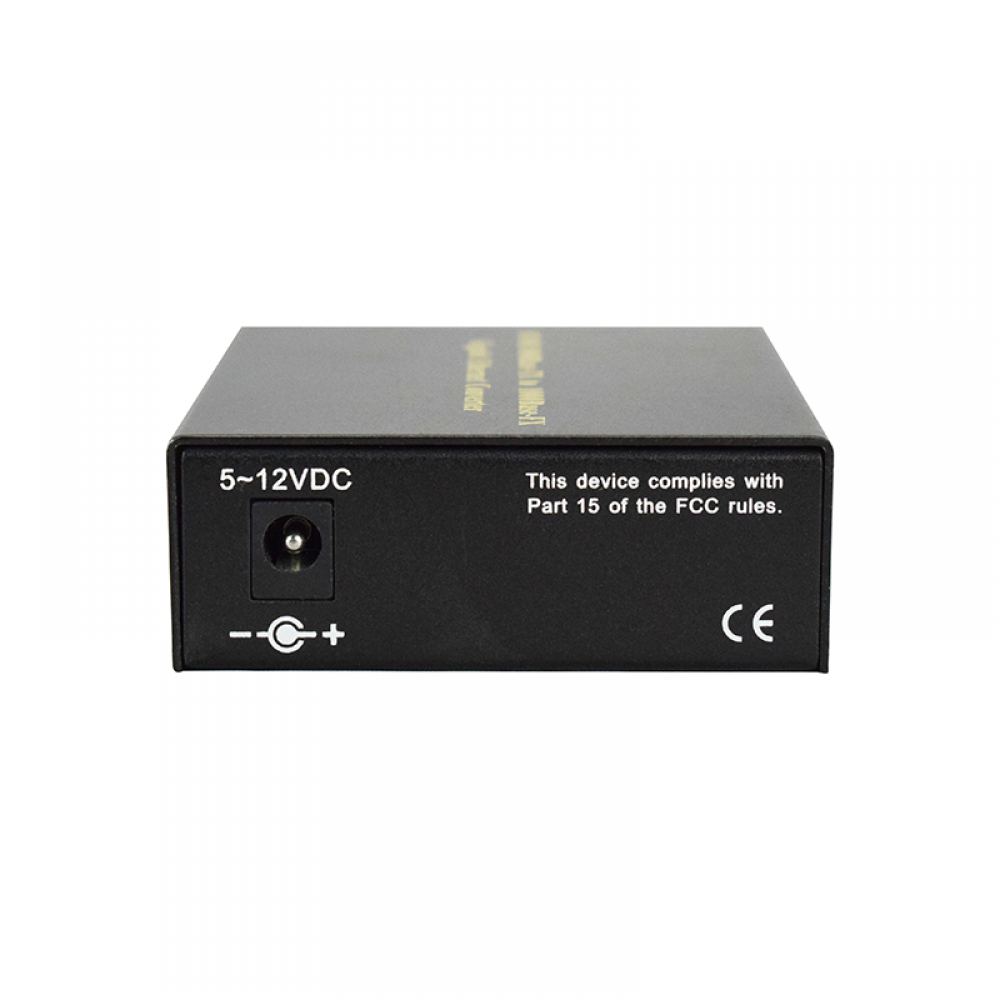

 Power supply
|
External: AC90~264V/DC100~380V
input, 5V 2A output
Internal: AC90~264V/DC100~380V
input
|
|
Power consumption
|
5W
|
|
Operating temperature
|
-10~55ºC
|
|
Operating humidity
|
5%~90%
|
|
Maintaining temperature
|
-40~70ºC
|
|
Maintaining humidity
|
5% ~ 90% non-condensing
|
|
Dimensions
|
71mm (W)×94mm (D)×26 mm (H) (external power supply)
|
|

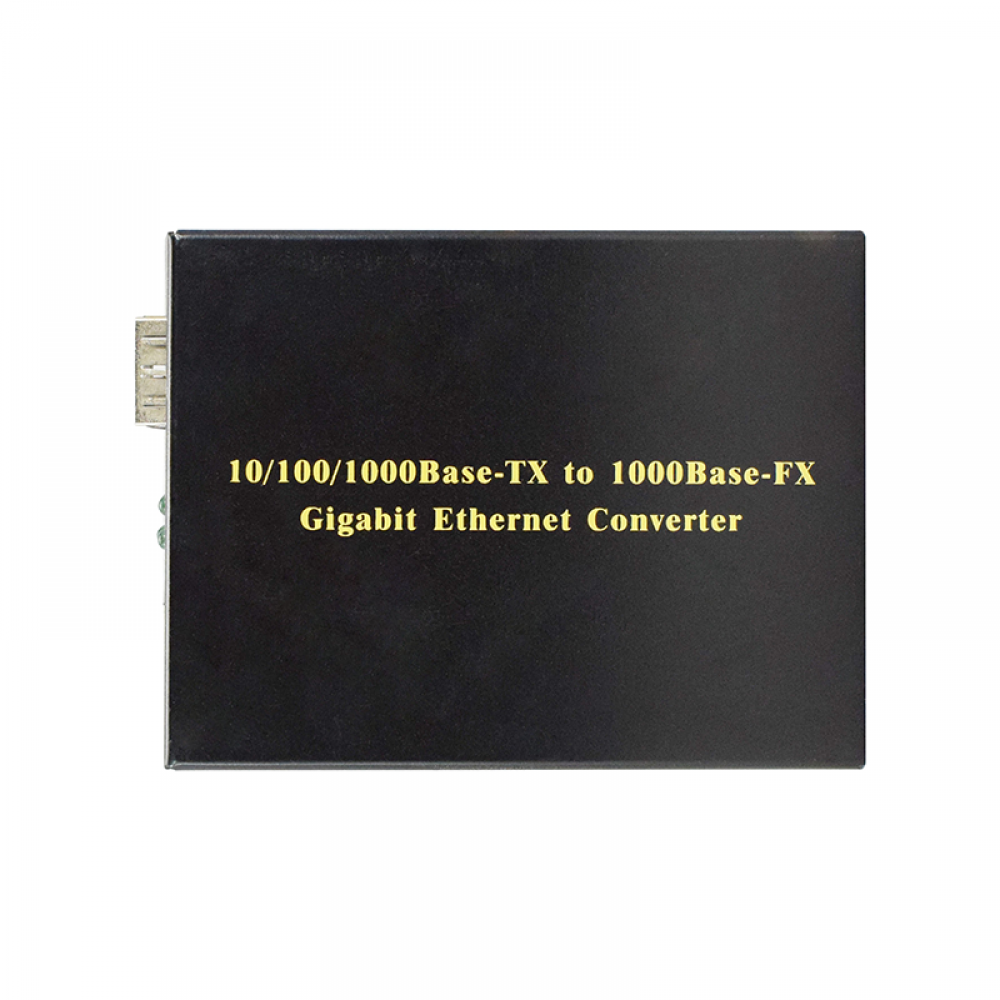

TMC2100SFP
|
10/100/1000Base-T to 1000Base-F, SFP Slot （SFP module optional), transmission distance:200m to 100KM, standalone, external power adaptor
|
