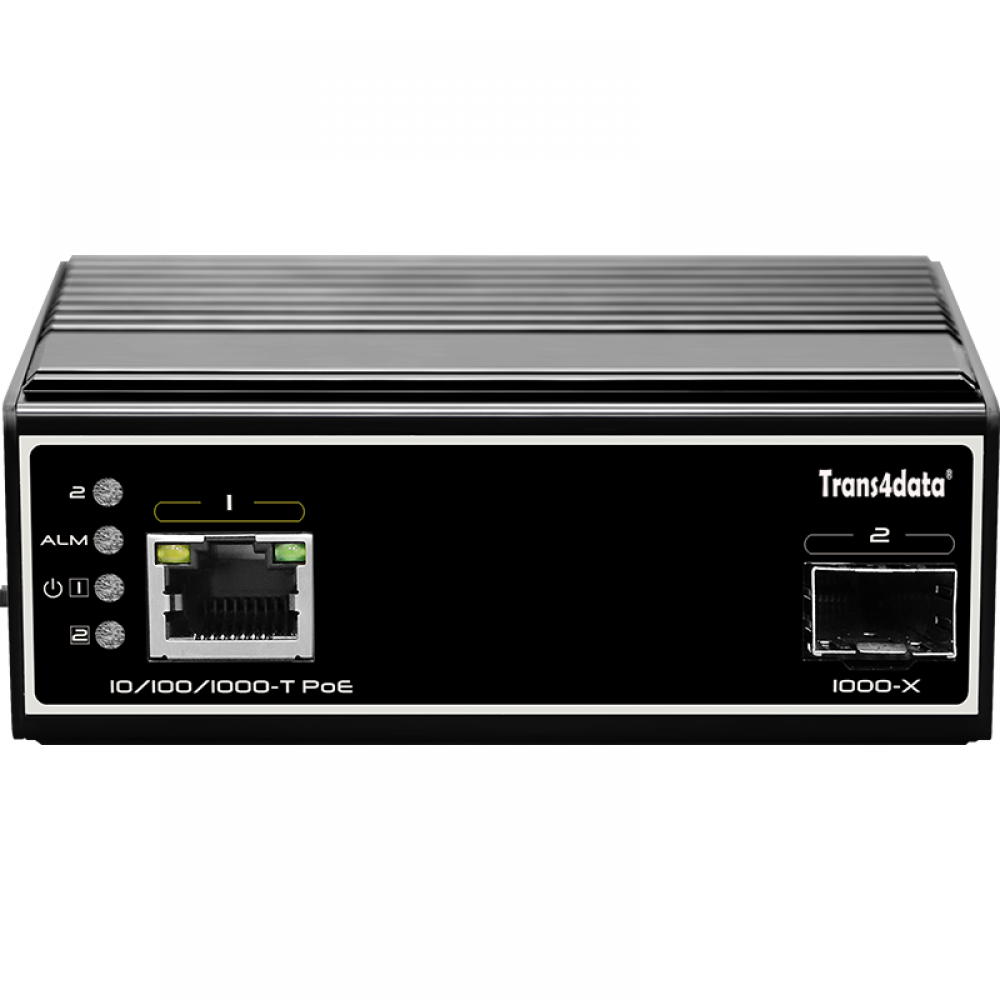

10/100/1000M SFP type industrial PoE media converter

Model No.: TIMC2100P-SFP

  • 1*10/100/1000M RJ45 PoE port and 1*1000M SFP port;
  • Supports relay alarm for power off, network off;
  • Supports 6KV surge protection, 6KV contact / 8KV air ESD protection;
  • Supports working temperature -40℃~80℃;
  • 5 years warranty
OverviewFeaturesSpecificationApplicationOrder Information
The TIMC2100P-SFP (SFP connector) is a 2-port industrial media converter that supports up to 1 *10/100/1000M RJ45 PoE port
and 1*1000M SFP slot. It supports relay alarm for power off, network off and PoE off. It has the characteristics of reliable work,
strong and durable, high cost performance and so on. It can be used in security network video monitoring system,
network engineering and other occasions.

  • 1*10/100/1000M RJ45 PoE port and 1*1000M SFP port;
  • Supports relay alarm for power off, network off and PoE off;
  • Supports 6KV surge protection, 6KV contact / 8KV air ESD protection;
  • Supports working temperature -40℃~80℃.

Parameter

 Specifications

Power supply

Powered by power adaptor

Range of voltage

DC 48~57V

Consumption

Self consumption<5W

Downlink ports

Ports 1: 10/100/1000Base-T PoE 30W(IEEE802.3af/at standard) RJ45 port

Uplink ports

Ports 2: 1000Base-X SFP

Relay alarm

1 channel relay alarm output for power off, ports link down and PoE off

Cable and distance

Use cat5e/6,100m max

Standard

IEEE802.3, IEEE802.3u, IEEE802.3z

Switch fabric

4 Gbps

Though put

2.976 Mpps

Buffer

1M

MAC address table

8K

Indicator

Power: 2 *red ;

Uplink2: Green LEDs indicate Link/Act

Downlink 1: Yellow LED indicate PoE and green LEDs indicate Link/Act

Protection

Surge: 6KV, standard: IEC61000-4-5   ESD: 6KV: contact/8KV: air, standard:IEC61000-4-2

Working temperature

-40~75

Storage temperature

-40℃~85℃

Humidity

0~95%(No condensation)

Dimension(L×W×H)

101mm×65 mm×36mm

Material

Aluminium

Colour

Black

Net-weight

300g



Model

Description

TIMC2100P-SFP

With 1*10/100/1000M PoE(IEEE802.3af/at standard) port and 1*1000M SFP port/Fixed Fiber port;  2*DC48-57V power supply(Power adaptor buy extra);

Supports relay alarm function for power off, network off and PoE off.
