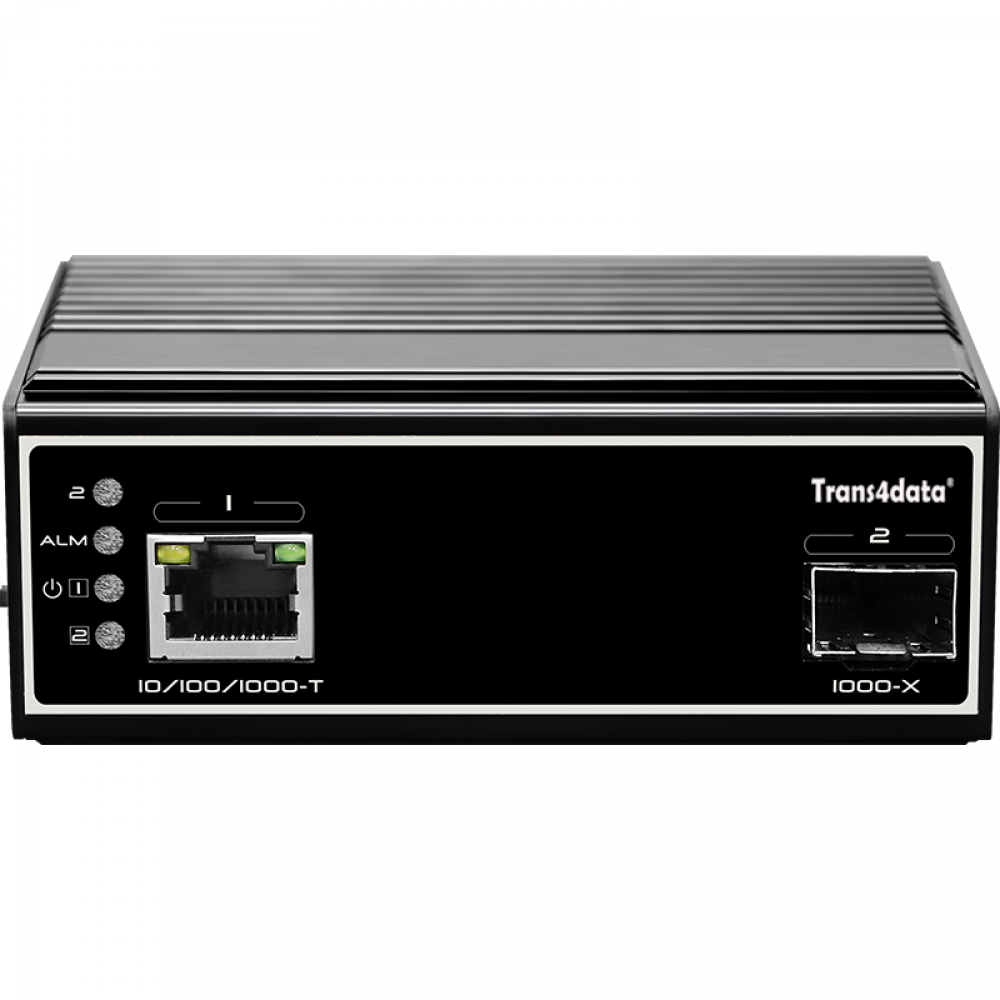

10/100/1000M SFP type industrial media converter

Model No.: TIMC2100-SFP

  • 1*10/100/1000M RJ45 port and 1*1000M SFP port;
  • Supports relay alarm for power off, network off;
  • Supports 6KV surge protection, 6KV contact / 8KV air ESD protection;
  • Supports working temperature -40℃~80℃;
  • 5 years warranty
OverviewFeaturesSpecificationApplicationOrder Information
The TIMC2100-SFP (SFP connector) is a 2-port industrial media converter that supports up to 1 *10/100/1000M RJ45 port
and 1*1000M SFP slot. It supports relay alarm for power off, network off.It has the characteristics of reliable work,
strong and durable, high cost performance and so on. It can be used in security network video monitoring system,
network engineering and other occasions.

  • 1*10/100/1000M RJ45 port and 1*1000M SFP port;
  • Supports relay alarm for power off, network off;
  • Supports 6KV surge protection, 6KV contact / 8KV air ESD protection;
  • Supports working temperature -40℃~80℃.

Parameter

 Specifications

Power supply

Powered by power adaptor

Range of voltage

DC 12~60V

Consumption

Self consumption<5W

Downlink ports

Ports 1: 10/100/1000Base-T RJ45

Uplink ports

Ports 2: 1000Base-X SFP

Relay alarm

1 channel relay alarm output for power off, ports link down

Cable and distance

Use cat5e/6,100m max

Standard

IEEE802.3, IEEE802.3u, IEEE802.3z

Switch fabric

4 Gbps

Though put

2.976 Mpps

Buffer

1M

MAC address table

8K

Indicator

Power: 2*red ;

Uplink2: Green LEDs indicate Link/Act

Downlink 1: Yellow LED and green LEDs indicate Link/Act

Protection

Surge: 6KV, standard: IEC61000-4-5   ESD: 6KV: contact/8KV: air, standard:IEC61000-4-2

Working temperature

-40~805

Storage temperature

-40℃~85℃

Humidity

0~95%(No condensation)

Dimension(L×W×H)

101mm×65 mm×36mm

Material

Metal

Colour

Black

Net-weight

300g



Model

Description

TIMC2100-SFP

1*10/100/1000M RJ45 port and 1*1000M SFP port;

2*DC12-60V power supply(Power adaptor buy extra);

Supports relay alarm function for power off, network off.
