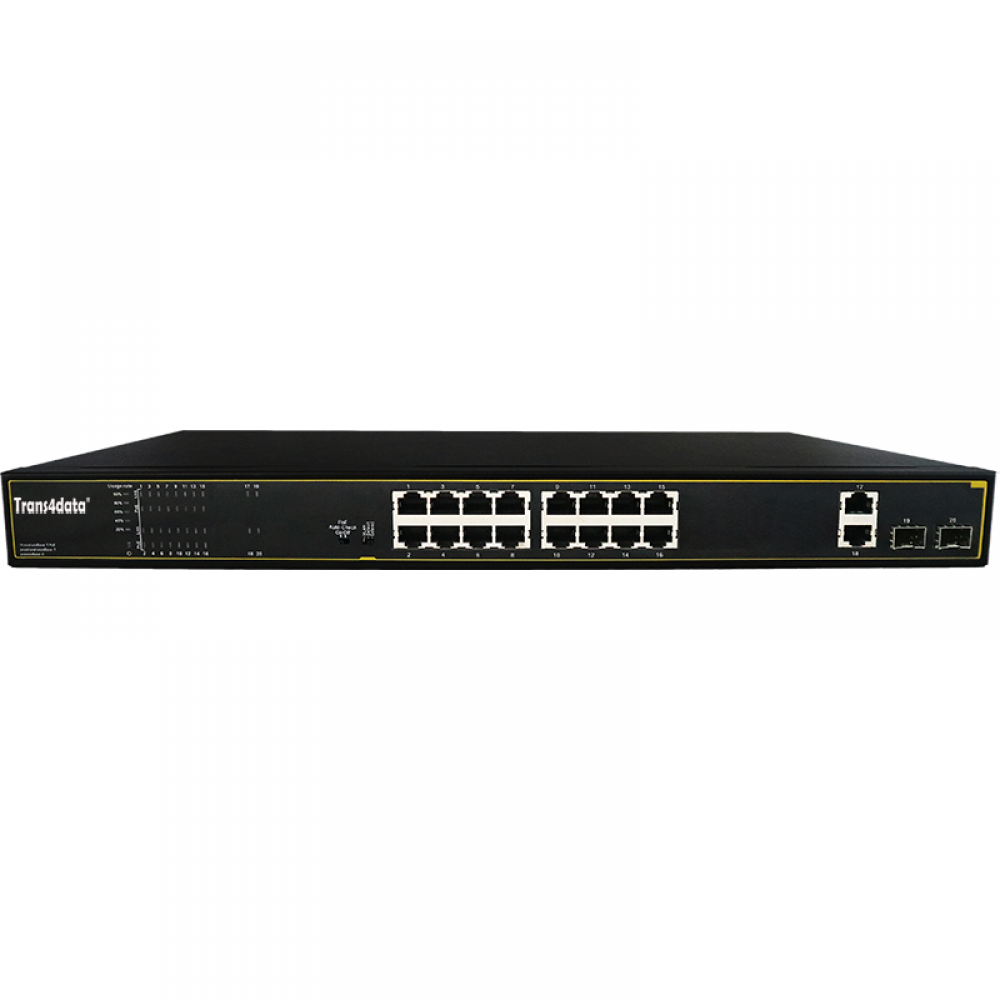

16 ports 100M unmanaged PoE switch

TCE2120P-2GE-2GF-300 is 20-port unmanaged PoE switch series that supports up to 16*10/100M PoE ports,
2*10/100/1000M ports and 2*1000M SFP ports. 16*10/100M ports support PoE+, conforming to IEEE 802.3af/at standard ,
single port PoE power up to 30W.

It provides three modes, Extend, Default and VLAN, to adapt to various complex environments. At the same time,
support PoE Auto-check function, which is specially designed to solve the problems of equipment frozen.
It can automatically detect the frozen PD equipment and restart the ports’output of PSE, and restart the PD device
, greatly reducing the maintenance difficulty of engineering .

It has a high anti-interference ability, the product supports 6KV surge protection, and 6KV contact / 8KV air ESD protection.
It supports wall hanging and desktop installation, reliable and durable, and can be used in security network video monitoring,
network engineering and other occasions

16*10/100M PoE ports, 2*10/100/1000M ports and 2*1000M SFP ports;
The maximum PoE power of single port is 30W;
Provides three modes of Extend, Default and VLAN to adapt to various complex environments;
Supports PoE Auto-check function, which is specially designed to solve the problems of equipment frozen. It can automatically detect the frozen PD equipment and restart the ports’output of PSE, and restart the PD device. It greatly reduces the maintenance difficulty of engineering ;
Supports PoE power indication, convenient to display PoE power consumption;
Supports 6KV lightning protection, 6KV contact / 8KV air ESD protection.
Supports rack-mount, wall hanging and desktop installation

Parameter	Specifications
Power supply	Mains power supply，AC100~240V，50/60Hz
Power consumption	Self-consumption<10W
Downlink ports	Ports1~16: 10/100Base-TX 30W PoE RJ45(IEEE802.3af/at PSE)
Uplink ports	17~18 ports: 10/100/1000 Base-TX 19~20 ports: 1000Base-X SFP slots
PoE Auto-check	If detect the frozen PD device, restart it
Working mode	Extend mode: ports 1～16Extend up to 250m; 1～16 ports are isolated from each other and can only communicate with the uplink ports; restrain the network storm; turn off the flow control. Default mode: normal switch mode. VLAN mode: ports1~16 are isolated from each other and can only communicate with the uplink port; restrain the network storm; turn off the flow control.
1~16 PoE ports	IEEE802.3af/at，end-span, single port≤30W
Cable and distance	Use cat5e/6 100m max.(Extend mode max.250m)
Standard	IEEE802.3, IEEE802.3u, IEEE802.3z
Switch fabric	11.2 Gbps
Though put	8.3 Mpps
Buffer	4M
MAC address table	8K
Indicator	Power: 1 *red ; Uplink 17~20: RJ45green LED indicate Link/Act Downlink1~16: RJ45 green LED indicate Link/Act，yellow LED indicate PoE
Protection	Surge: 6KV, standard: IEC61000-4-5 ESD：6KV contact 8KV: air, standardIEC61000-4-2
Working temperature	-10℃~50℃
Storage temperature	-40℃~85℃
Humidity	0~95%（No condensation）
Dimension(L×W×H)	420 mm×285 mm×44mm
Material	metal
Colour	Black
Net-weight	4kg

Model

Description

TCE2120P-2GE-2GF-300W

Input DC48-57V；

16*10/100M PoE ports, 2*10/100/1000M ports, 2*1000M SFP ports;

16*100M ports support PoE+ and IEEE 802.3af/at standard;

Support PoE Auto-check;

Support three working modes: extended, standard and VLAN mode;

Support 6KV lightning protection, 6KV/8KV anti-static, can be used in a variety of harsh environment;

300W built-in power supply, 270W PoE output.

TCE2120P-2GE-2GF-200W
