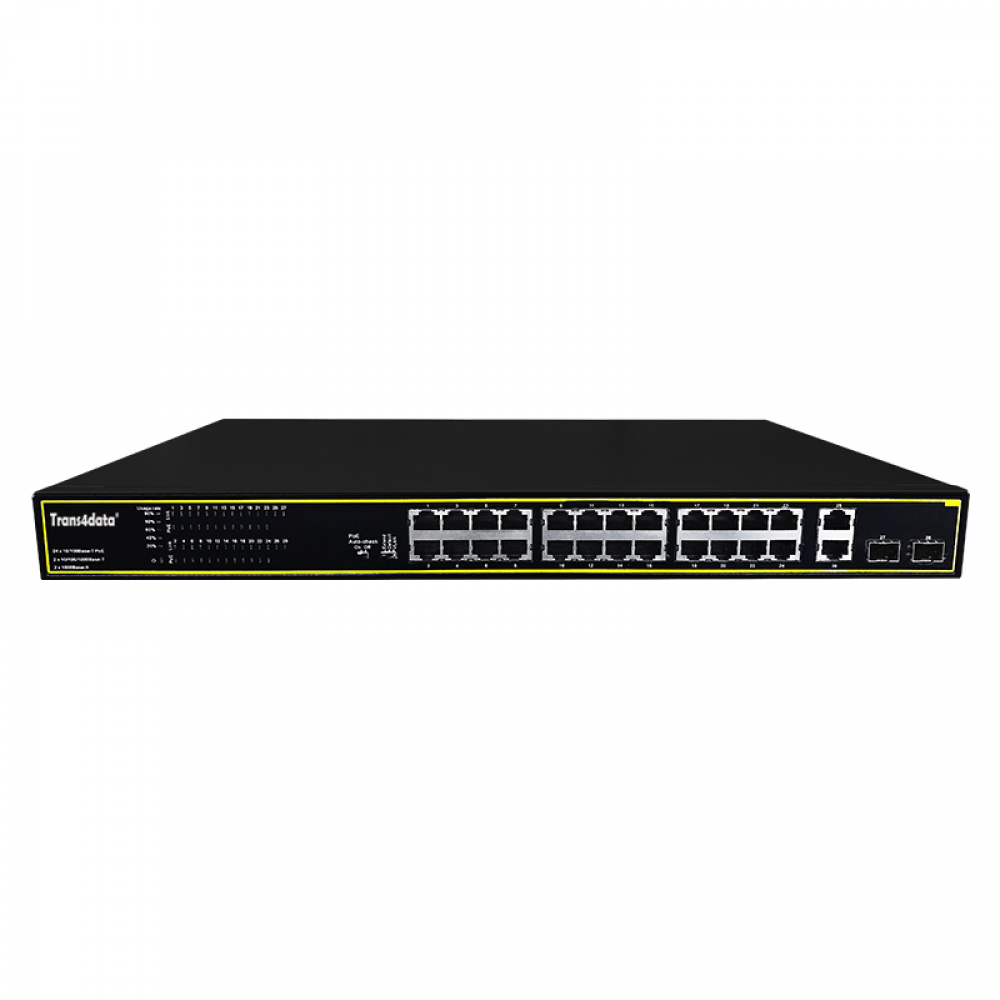

100M 28 ports unmanaged PoE switch

TCE2128P-2GE-2GF is 28-port PoE unmanaged switch series that supports up to 24*10/100M PoE ports,
2*10/100/1000M ports and 2*1000M SFP ports. 24*10/100M ports support PoE+, conforming to IEEE 802.3af/at
standard, single port PoE power up to 30W.

It provides three modes, Extend, Default and VLAN, to adapt to various complex environments. At the same time,
support PoE Auto-check function, which is specially designed to solve the problems of equipment frozen.
It can automatically detect the frozen PD equipment and restart the ports’output of PSE, and restart the PD device.
It greatly reduces the maintenance difficulty of engineering.

It supports the PoE usage rate indication, which is convenient to show the consumption of PoE power.

It has a high anti-interference ability, the product supports 6KV surge protection, and 6KV contact / 8KV air ESD protection.
It supports wall hanging and desktop installation, reliable and durable, and can be used in security network video monitoring,
network engineering and other occasions.

24*10/100M PoE ports, 2*10/100/1000M ports and 2*1000M SFP ports;
The maximum PoE power of single port is 30W;
Provides three modes of Extend, Default and VLAN to adapt to various complex environments;
Supports PoE Auto-check function, which is specially designed to solve the problems of equipment frozen.
It can automatically detect the frozen PD equipment and restart the ports’output of PSE, and restart the PD device. It greatly reduces the maintenance difficulty of engineering. Supports the PoE usage rate indication, which is convenient to show the consumption of PoE power.
6KV surge protection, 6KV contact / 8KV air ESD protection ;
Supports rack-mount, wall hanging and desktop installation.

Parameter	Specifications
Power supply	AC power supply
Range of voltage	AC100-240V, 50/60Hz
Consumption	Self-consumption<10W, PoE output 390W/270W
Downlink ports	Ports 1~24 10/100Base-TX 30W PoE RJ45(IEEE 802.3af/at)
Uplink ports	25~26 ports: 10/100/1000Base-TX RJ45; 27~28 ports: 1000Base-X SFP
PoE ports	Ports 1~24 support IEEE802.3af/at, end-span, 30W per port Max.
PoE Usage rate	20%, 40%, 60%, 80%, 90% LED indicator, indicates PoE usage.
PoE Auto-check	If detect the frozen PD device, restart it
Working mode	Extend mode: ports 1 ~24 Extend up to 250m;1 ~ 24 ports are isolated from each other and can only communicate with the uplink ports; restrain the network storm; turn off the flow control. Default mode: normal switch mode. VLAN mode: ports 1 ~24 are isolated from each other and can only communicate with the uplink port; restrain the network storm; turn off the flow control.
1~24 PoE ports	Support IEEE 802.3af/at, end-span, single port≦30W
Cable and distance	Use cat5e/6,100m max
Standard	IEEE802.3, IEEE802.3u, IEEE802.3z
Switch fabric	12.8Gbps
Though put	9.5Mpps
Buffer	4M
MAC address table	16K
Indicator	Power: 1 *red; 20%, 40%, 60%, 80%, 90% LED indicator, indicates PoE usage. Uplink25~26: On RJ45 yellow and green LEDs indicate Link/Act 27~28: 1000Base-X SFP green LEDs indicate Link/Act Downlink 1~24: On RJ45 green LEDs indicate Link/Act, yellow LEDs indicate PoE
Protection	Surge: 6KV, standard: IEC61000-4-5 ESD: 6KV: contact 8KV: air, standard:IEC61000-4-2
Working temperature	-10℃~50℃
Storage temperature	-40℃~85℃
Humidity	0~95%(No condensation)
Dimension(L×W×H)	442mm×285mm×44mm
Material	Metal
Colour	Black
Net-weight	4KG

Model

Description

TCE2128P-2GE-2GF-450W

24*10/100M PoE RJ45 ports, 2*10/100/1000M RJ45 ports, 2*1000M SFP slots;

Extend, Default, VLAN working mode;

PoE Auto-check;

PoE usage indicators;

450W power module(390W PoE power output).

TCE2128P-2GE-2GF-300W

24*10/100M PoE RJ45 ports, 2*10/100/1000M RJ45 ports, 2*1000M SFP slots;

Extend, Default, VLAN working mode;

PoE Auto-check;

PoE usage indicators;

300W power module(270W PoE power output).
