100M 6 ports unmanaged PoE switch

Model No.: TCE2206P-2E

  • 4*10/100M PoE ports and 2*10/100M uplink ports
  • Support Extend(250m), Default and VLAN working mode
  • Support PoE Auto-check function, automatically restart the PD equipments when frozen
  • 6KV surge protection, 6KV contact /8KV air ESD protection
  • 3 years warranty
OverviewFeaturesSpecificationApplicationOrder Information

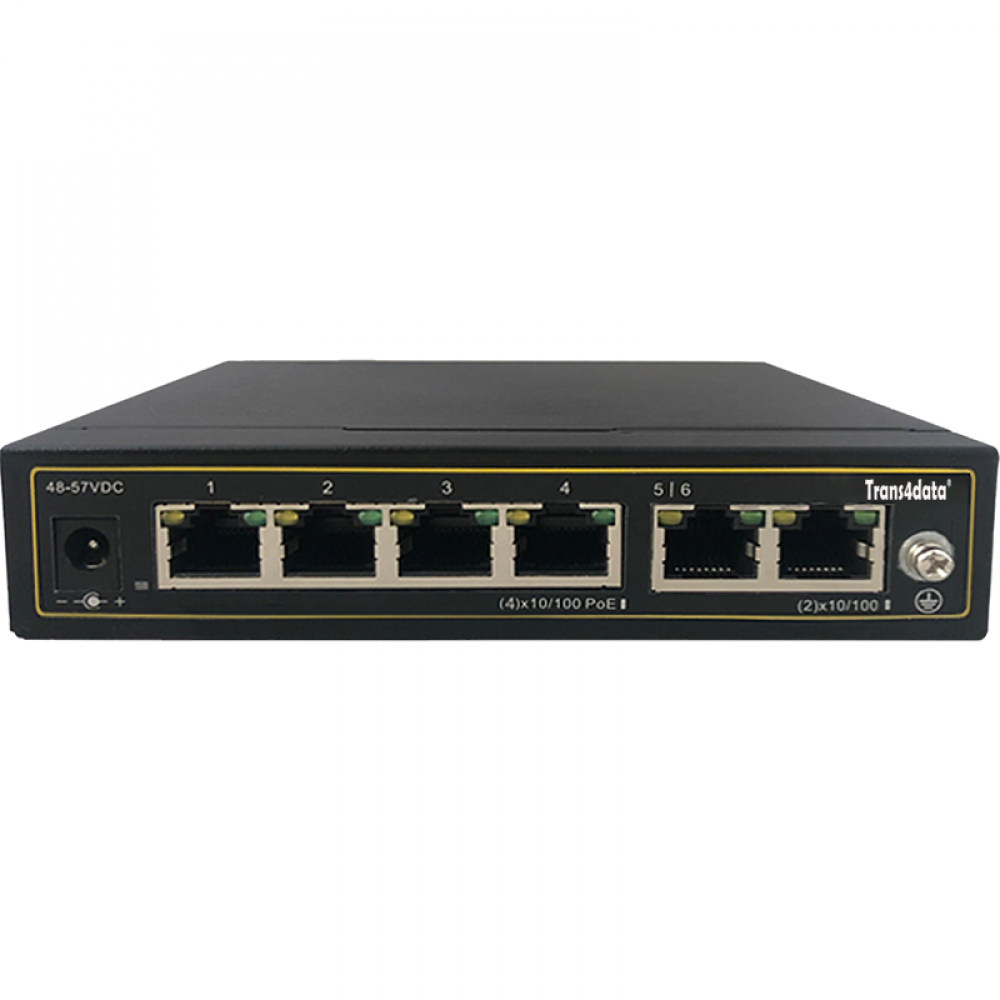

TCE2206P-2E is a 6-port PoE unmanaged switch that supports up to 4*10/100M PoE ports and 2*10/100M uplink ports.
4* 10/100M ports support PoE+, conforming to IEEE 802.3af/at standard, single port PoE power up to 30W, the maximum
total power is 60W.

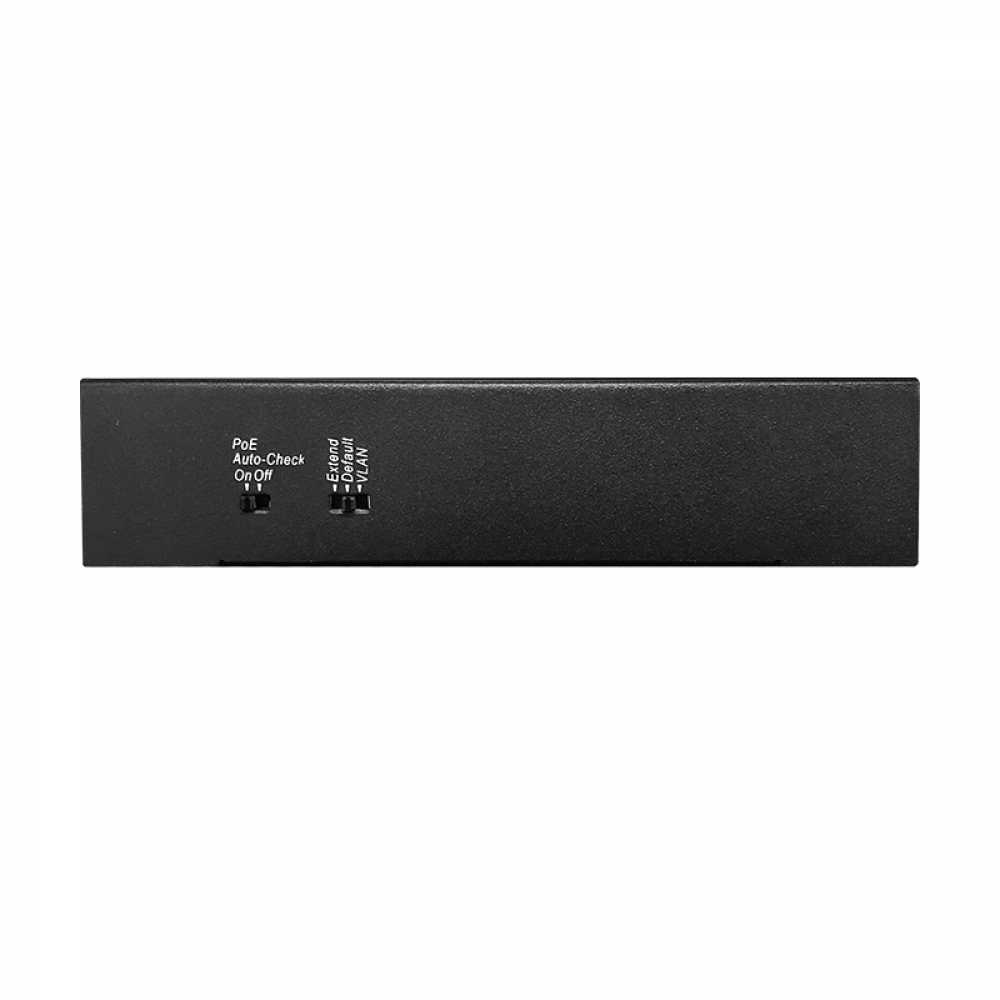

TCE2206P-2E provides three modes, Extend, Default and VLAN, to adapt to various complex environments.
At the same time, support PoE Auto-check function, which is specially designed to solve the problems of equipment
frozen. It can automatically detect the frozen PD equipment and restart the ports’ output of PSE, and restart the PD device.
It greatly reduces the maintenance difficulty of engineering.

TCE2206P-2E has a high anti-interference ability, the product supports 6KV surge protection, and 6KV contact /8KV air ESD protection.
TCE2206P-2E supports wall hanging and desktop installation, reliable and durable, and can be used in security network video monitoring,
network engineering and other occasions.
  • 4*10/100M PoE downlink ports and 2*100M uplink ports.
  • The maximum PoE power of single port is 30W, and the maximum PoE power of the whole machine is 60W.
  • Provides three modes of Extend, Default and VLAN to adapt to various complex environments.
  • Supports PoE auto-check function, which is specially designed to solve the problems of equipment frozen. It can automatically detect the frozen PD equipment and restart the ports' output of PSE, and restart the PD device. It greatly reduces the maintenance difficulty of engineering.
  • 6KV surge protection, 6KV contact / 8KV air ESD protection.

Parameter

 Specifications

Power supply

Powered by power adaptor

Range of voltage

DC 48~57V

Consumption

Self consumption<5W, PoE output max. 60W

Downlink ports

Ports 1~4 10/100Base-TX 30W PoE RJ45(IEEE 802.3af/at)

Uplink ports

Ports 5~6 10/100/1000Base-T RJ45

PoE ports

Ports 1~4 support IEEE802.3af/at, end-span, 30W per port Max.

PoE Auto-check

If detect the frozen PD device, restart it

Working mode

Extend mode: ports 1 ~ 4 Extend up to 250m;1 ~ 4 ports are isolated from each other and can only communicate with the uplink ports; restrain the network storm; turn off the flow control.

Default mode: normal switch mode.

VLAN mode: ports 1 ~ 4 are isolated from each other and can only communicate with the uplink port; restrain the network storm; turn off the flow control.

1~8 PoE ports

Support IEEE 802.3af/at, end-span, single port30W

Cable and distance

Use cat5e/6100m max.(Extend mode max.250m)

Standard

IEEE802.3, IEEE802.3u, IEEE802.3z

Switch fabric

1.2Gbps

Though put

0.9Mpps

Buffer

448K

MAC address table

1K

Indicator

Power: 1 *red ;

Uplink5, 6: On RJ45 yellow and green LEDs indicate Link/Act

Downlink 1~4: On RJ45 green LEDs indicate Link/Act, yellow LEDs indicate PoE

Protection

Surge: 6KV, standard: IEC61000-4-5   ESD: 6KV: contact 8KV: air, standard:IEC61000-4-2

Working temperature

-10~50

Storage temperature

-40℃~85

Humidity

0~95%(No condensation)

Dimension(L×W×H)

135mm x 80mm x 30mm

Material

Metal

Colour

Black

Net-weight

340g



Model

Description

TCE2206P-2E

4*10/100 PoE RJ45 ports, 2*10/100M RJ45 ports. Extend, Default, VLAN working mode.

PoE Auto-check. 60W power adaptor.
