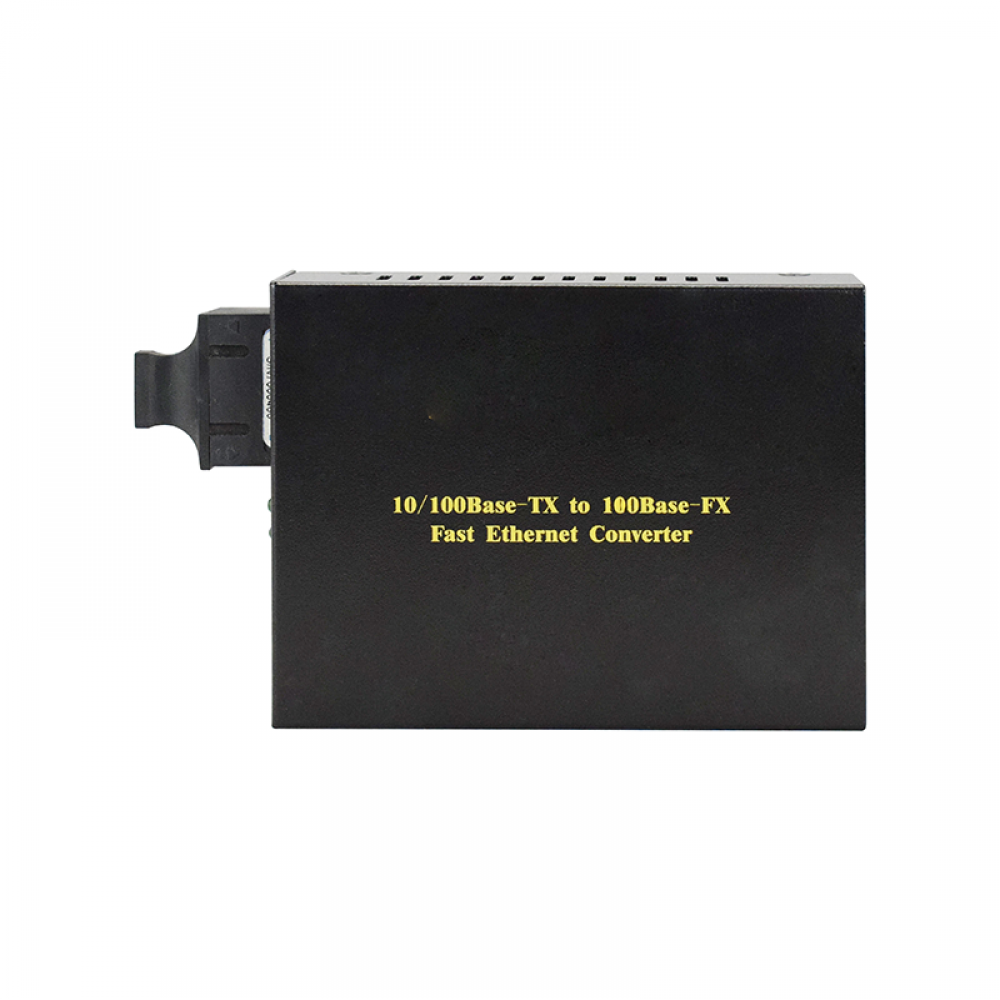

10/100M fast ethernet media converter

Due to its unique function of link failure alert between electrical port and optical port, the intelligent 10/100M adaptive fast Ethernet media converter can replace the media converter with network management to greatly reduce the system cost.

TMC1100 Ethernet media converter can inter-convert electrical signals of 10Base-T and 100Base–TX twisted pairs with optical signals of 100Base-FX. It extends the network transmission distance from 100m via copper cables to 120 km via fiber optical cable. It enables the data to transmit in two different mediums of electrical and optical networks either by the technology of data link L2 store-and-forward, or by the one of PHY L1 cut-through). It supports transmission in Multi-mode dual fiber, single mode dual fiber, single mode single fiber.

10/100Mbps auto-sensed, facilitating network upgrade
Built-in efficient switching core to implement flow control and reduce broadcast packets
Full-duplex and half-duplex auto-sensed
Supporting auto-sense of MDI/MDI-X, facilitating system commissioning and installation
Supporting half /full-duplex of FX.
Supporting 10/100Mbps store-and-forward and 100Mbps cut-through transmission.
Supporting the transmission of 100Base-FX or STM-1, compatible with other devices
Supporting low-time lag transmission
Supporting the transmission of extra-long packets up to1600 bytes
Extremely low power consumption (less than 2W), reliable and stable performance
Options in Multi-mode dual fiber, single mode dual fiber, single mode single fiber

Parameter	Specifications
Access mode	10/100Mbps
Standard	IEEE802.3 10Base-T Ethernet, IEEE802.3u,100Base-TX/FX Fast Ethernet, IEEE802.3x Flow Control
Wavelength	850nm,1310,1550
Transmission distance	Dual-fiber Multi-mode: 2 km; Single mode: 20KM~120KM Category-5 twisted pairs: 100m

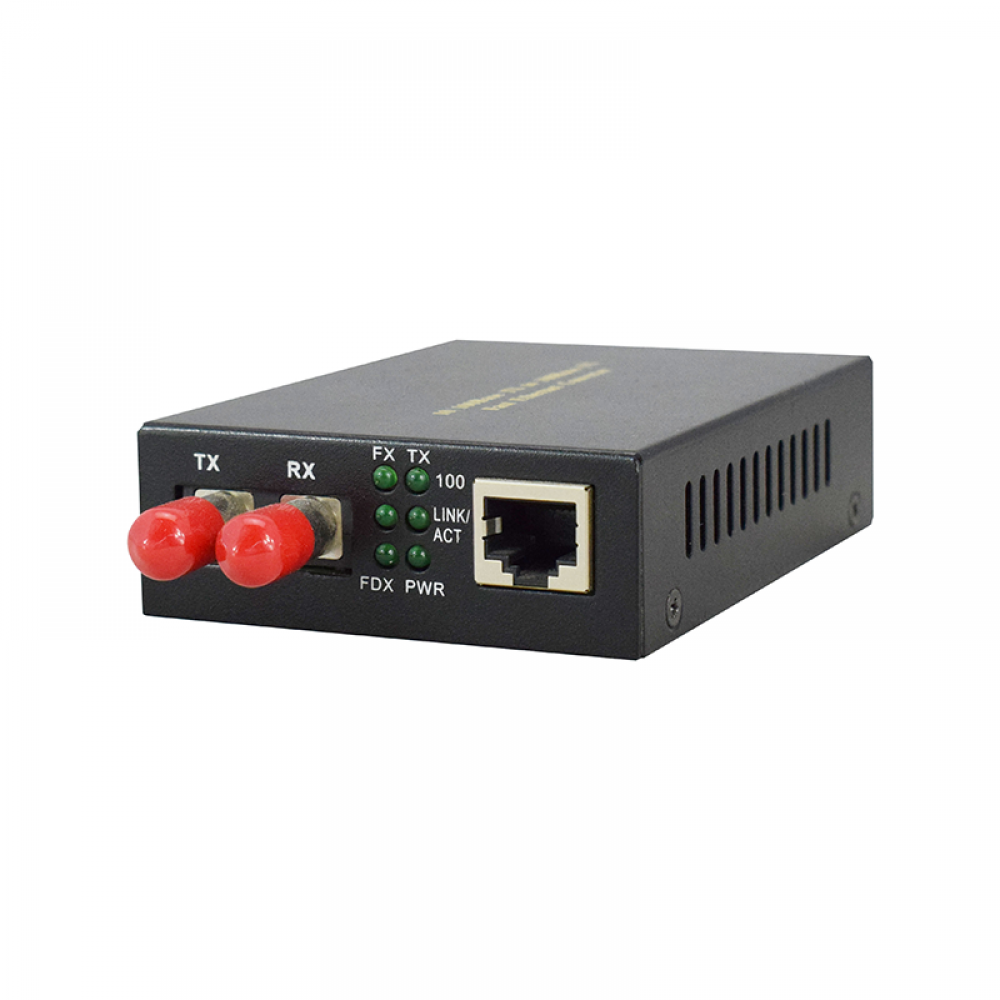

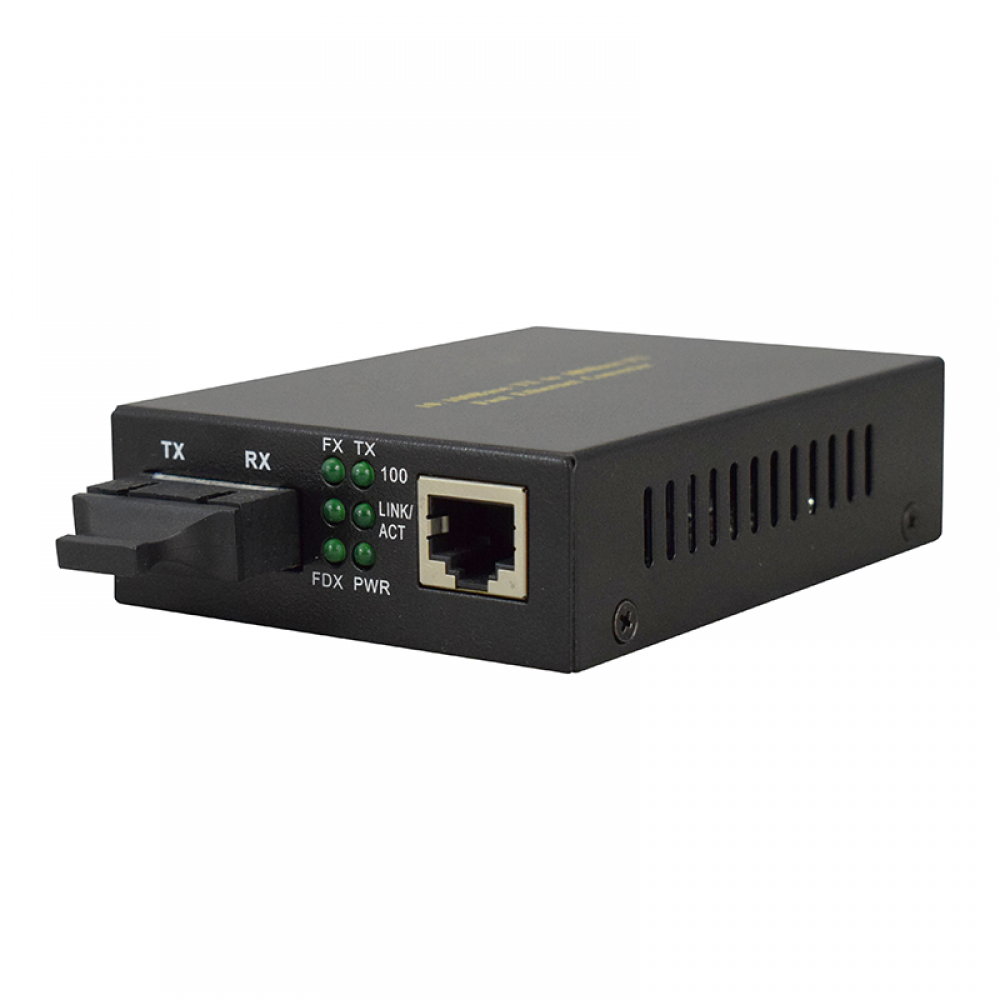

Port	One RJ45 port: Connecting STP/UTP category-5 twisted pairs, EIA568A/B One optical port: Multi-mode Dual-fiber: SC or ST (50/125μm or 62.5/125μm) Single mode Dual-fiber: SC or FC (9/125μm) Single mode Single fiber: SC or FC (9/125μm)
Conversion means	Store and Forward mode or Cut-Through mode
Buffer space	Built in 128Kb RAM for data buffer
Flow control	Full duplex: flow control; Half duplex: back pressure
BER	<19^-9
MTBF	100,000 hours

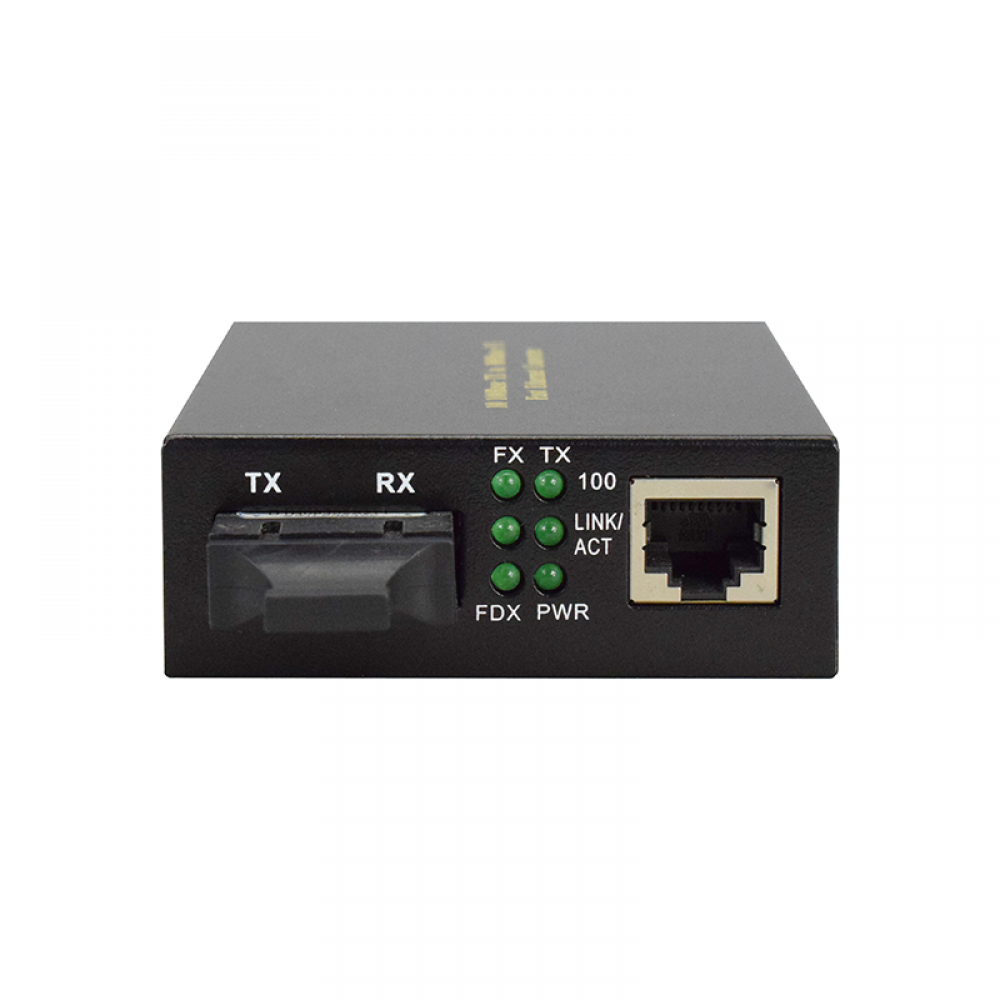

LED indicator	POER (power supply), FX LINK/ACT (optical link action) FDX (full duplex), TX LINK/ACT (TP cable link/action) TX 100 (TP cable rate 100M), FX100(fiber cable rate 100M)
Power supply	External: AC90~264V/DC100~380V input, 5V1A output
Power consumption	<40W (the chassis at full load), <2W
Operating temperature	-10~55ºC
Operating humidity	5%~90%
Maintaining temperature	-40~70ºC
Maintaining humidity	5% ~ 90% non-condensing
Dimensions	71mm (W)×94mm (D)×26 mm (H) (external power supply)

TMC1100	10/100Base-T to 100Base-F, multi-mode, 2km, SC, standalone, external power adaptor
TMC1100S-20	10/100Base-T to 100Base-F, single mode, 25km, SC, standalone, external power adaptor
TMC1100S-40	10/100Base-T to 100Base-F, single mode, 40km, SC, standalone, external power adaptor
TMC1100S-60	10/100Base-T to 100Base-F, single mode, 60km, SC, standalone, external power adaptor
TMC1100S-80	10/100Base-T to 100Base-F, single mode, 80km, SC, standalone, external power adaptor
TMC1100S-100	10/100Base-T to 100Base-F, single mode, 100km, SC, standalone, external power adaptor
TMC1100S-120	10/100Base-T to 100Base-F, single mode, 120km, SC, standalone, external power adaptor
