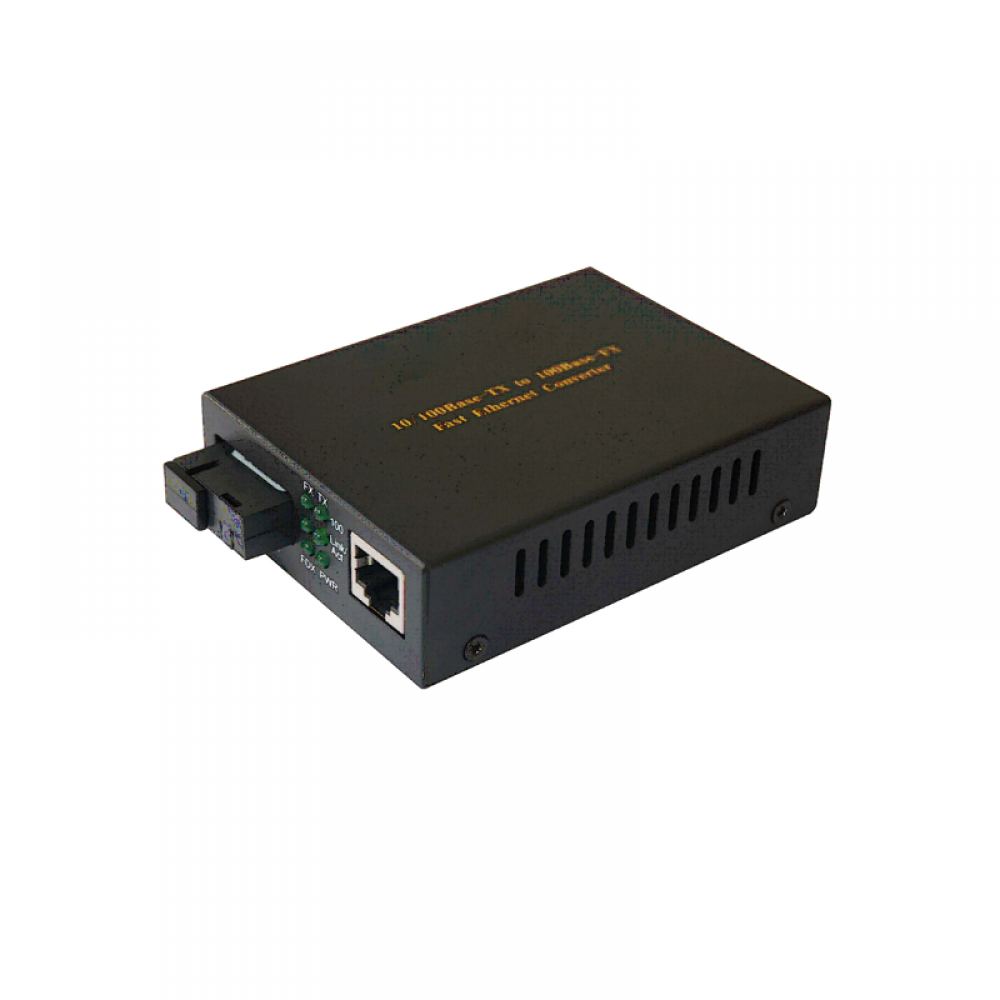

10/100M WDM media converter

Due to its unique function of link failure alert between electrical port and optical port, the intelligent 10/100M
adaptive fast Ethernet media converter can replace the media converter with network management to greatly
reduce the system cost.

TMCS1100 Ethernet media converter can inter convert electrical signals of 10Base-T and 100Base–TX twisted pairs
with optical signals of 100Base-FX. It extends the network transmission distance from 100m via copper cables to
100 km via fiber optical cable. It enables the data to transmit in two different mediums of electrical and optical
networks either by the technology of data link L2 store-and-forward, or by the one of PHY L1 cut-through.
It supports transmission in single mode single fiber.

10/100Mbps auto-sensed, facilitating network upgrade
Built-in efficient switching core to implement flow control and reduce broadcast packets
Full-duplex and half-duplex auto-sensed
Supporting auto-sense of MDI/MDI-X, facilitating system commissioning and installation
Supporting half /full-duplex of FX.
Supporting 10/100Mbps store-and-forward and 100Mbps cut-through transmission.
Supporting the transmission of 100Base-Fx or STM-1, compatible with other devices
Supporting low-time lag transmission
Supporting the transmission of extra-long packets up to1600 bytes
Extremely low power consumption (less than 2W), reliable and stable performance
Options in single mode in single fiber

Parameter	Specifications
Access mode	10/100Mbps
Standard	IEEE802.3 10Base-T Ethernet, IEEE802.3u,100Base-TX/FX Fast Ethernet, IEEE802.3x Flow Control
Wavelength	1310nm/1550nm
Transmission distance	Single fiber single mode: 20/40/60/80/100 km Category-5 twisted pairs: 100m
Port	One RJ45 port: Connecting STP/UTP category-5 twisted pairs, EIA568A/B One optical port: Single mode Single fiber: SC or FC (9/125μm)
Conversion means	Store and Forward mode or Cut-Through mode
Buffer space	Built in 128Kb RAM for data buffer
Flow control	Full duplex: flow control; Half duplex: back pressure
BER	<19^-9
MTBF	100,000 hours
LED indicator	POER (power supply), FX LINK/ACT (optical link action) FDX (full duplex), TX LINK/ACT (TP cable link/action) TX 100 (TP cable rate 100M), FX100(fiber cable rate 100M)
Power supply	External: AC90~264V/DC100~380V input, 5V1A output
Power consumption	<40W (the chassis at full load), <2W
Operating temperature	-10~55ºC
Operating humidity	5%~90%
Maintaining temperature	-40~70ºC
Maintaining humidity	5% ~ 90% non-condensing
Dimensions	71mm (W)×94mm (D)×26 mm (H) (external power supply)

TMCS1100-20	10/100Base-T to 100Base-F, WDM(single fiber bi-direction), 20km, SC, standalone, external power adaptor
TMCS1100-40	10/100Base-T to 100Base-F, WDM(single fiber bi-direction), 40km, SC, standalone, external power adaptor
TMCS1100-60	10/100Base-T to 100Base-F, WDM(single fiber bi-direction), 60km, SC, standalone, external power adaptor
TMCS1100-80	10/100Base-T to 100Base-F, WDM(single fiber bi-direction), 80km, SC, standalone, external power adaptor
TMCS1100-100	10/100Base-T to 100Base-F, WDM(single fiber bi-direction), 100km, SC, standalone, external power adaptor
