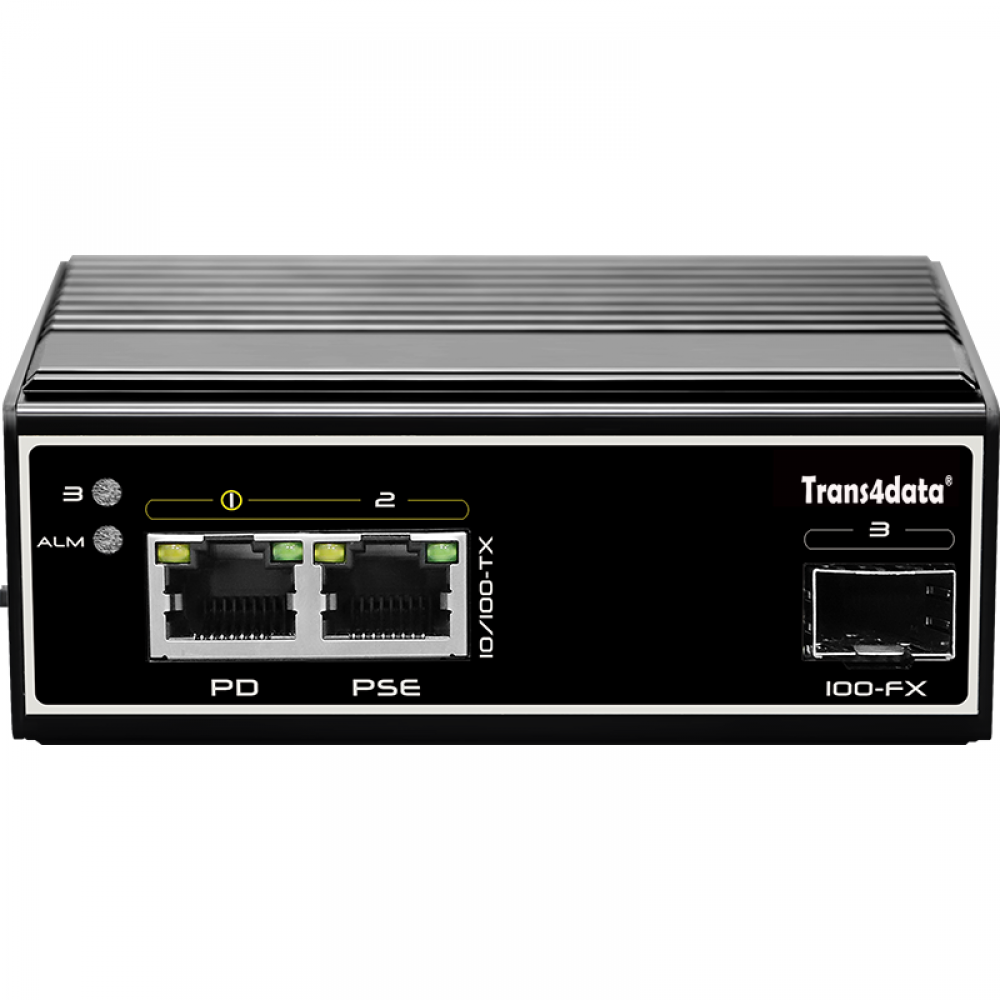

TIE3203P-1PD-1F-Mini is a 3-port industrial PoE switch that supports up to 1*10/100M 30W PD, 1*10/100M 30W PSE downlink port,
1*100M SFP port. 2*10/100/1000M ports support PoE+, conforming to IEEE 802.3af/at standard.
TIE3203P-1PD-1F-Mini has the characteristics of reliable work, strong and durable, high performance and so on.
It can be used in security network video monitoring system, network engineering and other occasions.
Supports relay alarm for power off, network broken, PoE off; 6KV surge protection, 6KV contact/8KV air ESD protection;
Supports Din-rail installation, which is reliable and durable, and can be used in security network video monitoring, network engineering
and other occasions
-
1*10/100M 30W PD, 1*10/100M 30W PSE downlink port, 1*100M SFP port ;
-
Supports relay alarm for power off, network broken, PoE off;
-
6KV surge protection, 6KV contact/8KV air ESD protection;
-
Supports Din-rail installation, which is reliable and durable, and can be used in security network video monitoring, network engineering and other occasions.
-
Supports working temperature -40℃～80℃
|
Parameter
|
Specifications
|
|
Power supply
|
Powered by power adaptor
|
|
Range of voltage
|
DC 48~57V
|
|
Consumption
|
Self
consumption<5W
|
|
Downlink ports
|
Ports 1: 10/100Base-TX
30W PD ;
Ports 2:
10/100Base-TX 30W PSE ;
|
|
Uplink ports
|
Port 3:
100Base-FX SFP
|
|
Relay alarm
|
Relay alarm for power off, network broken,
PoE off;
|
|
Cable and distance
|
Use
cat5e/6,100m max
|
|
Standard
|
IEEE802.3, IEEE802.3u, IEEE802.3z
|
|
Switch fabric
|
0.6 Gbps
|
|
Though put
|
0.446 Mpps
|
|
Buffer
|
1M
|
|
MAC address table
|
8K
|
|
Indicator
|
Uplink3: Green LEDs
indicate Link/Act
Downlink 1~2: On RJ45
green LEDs indicate Link/Act
Yellow LEDs indicate
PoE
|
|
Protection
|
Surge: 6KV, standard: IEC61000-4-5
ESD: 6KV: contact / 8KV: air, standard:IEC61000-4-2
|
|
Working
temperature
|
-40℃~80℃
|
|
Storage
temperature
|
-40℃~85℃
|
|
Humidity
|
0~95%(No condensation)
|
|
Dimension(L×W×H)
|
101 mm×65 mm×36mm
|
|
Material
|
Aluminium alloy
|
|
Colour
|
Black
|
|
Net-weight
|
300g
|
|
Model
|
Description
|
|
TIE3203P-1PD-1F-Mini
|
With 1*10/100M 30W PD,
1*10/100M 30W PSE downlink ports, 1*100M SFP port;
2*DC48-57V power supply(Power adaptor buy extra);
Supports relay alarm function for power off, network off and PoE off.
|
