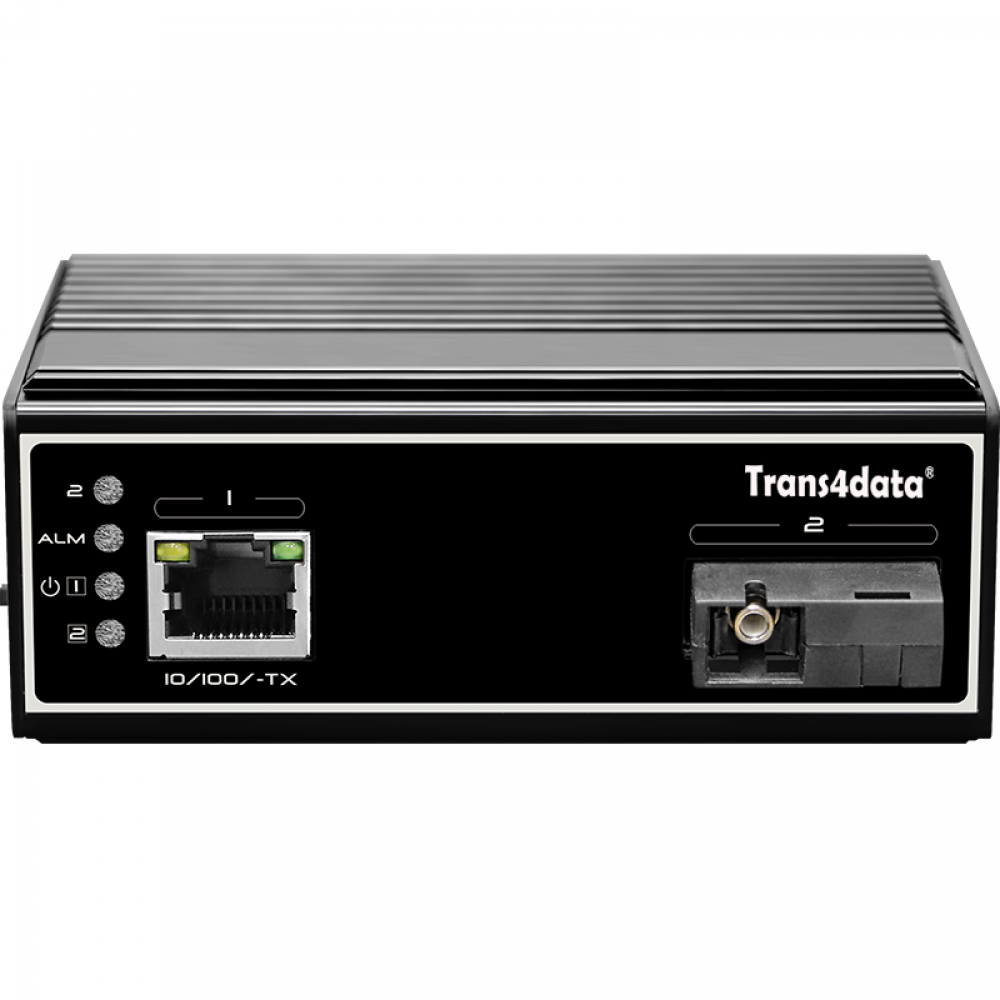

10/100M SC type industrial media converter

Model No.: TIMC1100-SC

1*10/100M RJ45 port and 1*100M SC port;
Supports relay alarm for power off, network broken;
Supports 6KV surge protection, 6KV contact / 8KV air ESD protection;
Supports working temperature -40℃～80℃;
5 years warranty

OverviewFeaturesSpecificationApplicationOrder Information

The TIMC1100-SC (SC connector) is a 2-port industrial media converter that supports up to 1 *10/100M RJ45 port
and 1*100M SC slot. It supports relay alarm for power off, network broken.It has the characteristics of reliable work,
strong and durable, high cost performance and so on. It can be used in security network video monitoring system,
network engineering and other occasions.

1*10/100M RJ45 port and 1*100M SC port;
Supports relay alarm for power off, network broken;
Supports 6KV surge protection, 6KV contact / 8KV air ESD protection;
Supports working temperature -40℃～80℃.

Parameter	Specifications
Power supply	Powered by power adaptor
Range of voltage	DC 12~60V
Consumption	Self consumption<5W
Downlink ports	Ports 1: 10/100Base-TX RJ45
Uplink ports	Ports 2: 100Base-FX SC slot
Relay alarm	1 channel relay alarm output for power off, ports link down
Cable and distance	Use cat5e/6,100m max
Standard	IEEE802.3, IEEE802.3u
Switch fabric	0.4 Gbps
Though put	0.2976 Mpps
Buffer	1M
MAC address table	8K
Indicator	Power: 2 *red ; Uplink 2: Green LEDs indicate Link/Act Downlink 1: Green LEDs indicate Link/Act
Protection	Surge: 6KV, standard: IEC61000-4-5 ESD: 6KV: contact/8KV: air, standard:IEC61000-4-2
Working temperature	-40℃~80℃
Storage temperature	-40℃~85℃
Humidity	0~95%(No condensation)
Dimension(L×W×H)	101mm×65 mm×36mm
Material	Metal
Colour	Black
Net-weight	300g

Model

Description

TIMC1100-SC

With 1*10/100M RJ45 port and 1*100M SC port;

Transmission distance: 2KM--100KM optional

2*DC12-60V power supply(Power adaptor buy extra);

Supports relay alarm function for power off, network broken.
