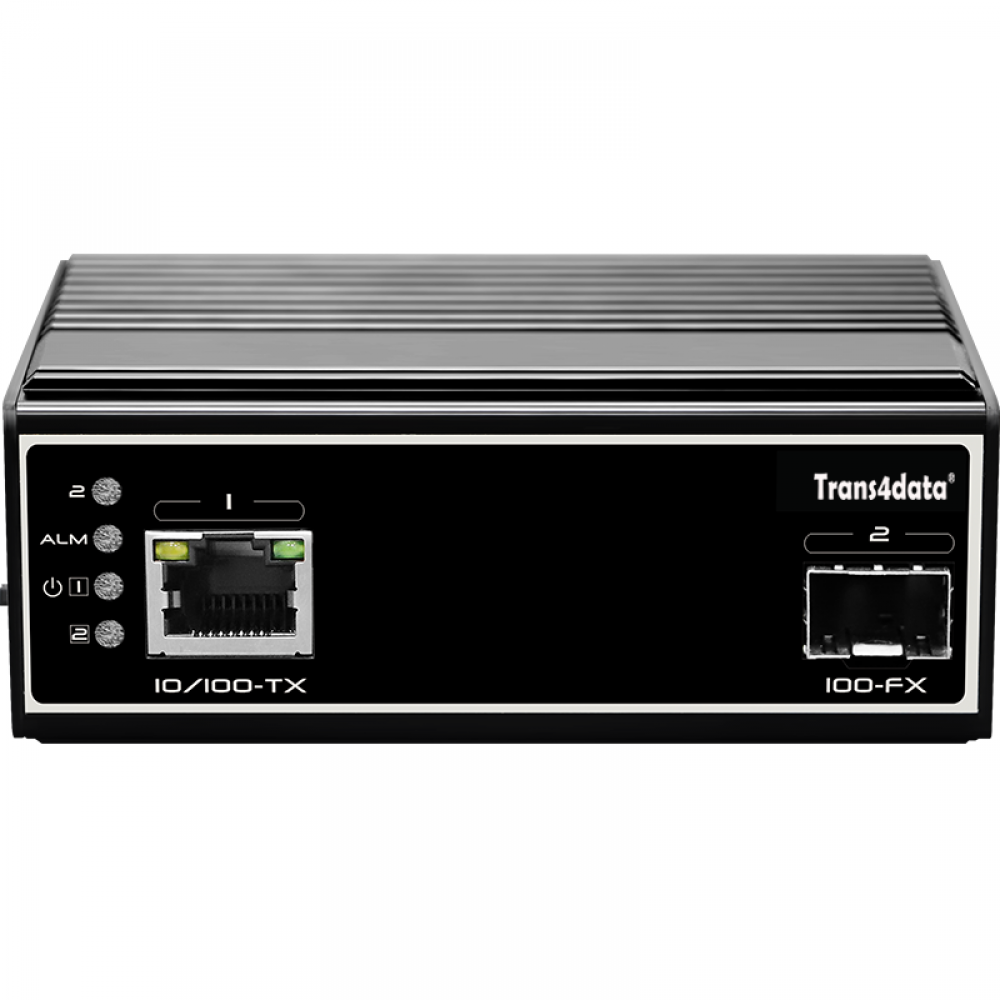

10/100M SFP type industrial media converter

Model No.: TIMC1100-SFP

1*10/100M RJ45 port and 1*100M SFP port;
Supports relay alarm for power off, network broken;
Supports 6KV surge protection, 6KV contact / 8KV air ESD protection;
Supports working temperature -40℃～80℃;
5 years warranty

OverviewFeaturesSpecificationApplicationOrder Information

The TIMC1100-SFP (SFP connector) is a 2-port industrial media converter that supports up to 1 *10/100M RJ45 port
and 1*100M SFP slot. It supports relay alarm for power off, network broken.It has the characteristics of reliable work,
strong and durable, high cost performance and so on. It can be used in security network video monitoring system,
network engineering and other occasions.

1*10/100M RJ45 port and 1*100M SFP port;
Supports relay alarm for power off, network broken;
Supports 6KV surge protection, 6KV contact / 8KV air ESD protection;
Supports working temperature -40℃～80℃.

Parameter	Specifications
Power supply	Powered by power adaptor
Range of voltage	DC 12-60V
Consumption	Self consumption<5W
Downlink ports	Ports 1: 10/100Base-TX PoE 30W(IEEE802.3af/at standard) RJ45 port
Uplink ports	Ports 2: 100Base-FX SFP
Relay alarm	1 channel relay alarm output for power off, ports link down
Cable and distance	Use cat5e/6,100m max
Standard	IEEE802.3, IEEE802.3u
Switch fabric	0.4 Gbps
Though put	0.2976 Mpps
Buffer	1M
MAC address table	8K
Indicator	Power: 2 *red ; Uplink2: Green LEDs indicate Link/Act Downlink 1: Yellow LED indicate PoE and green LEDs indicate Link/Act
Protection	Surge: 6KV, standard: IEC61000-4-5 ESD: 6KV: contact/8KV: air, standard:IEC61000-4-2
Working temperature	-40℃~80℃
Storage temperature	-40℃~85℃
Humidity	0~95%(No condensation)
Dimension(L×W×H)	101mm×65 mm×36mm
Material	Aluminium
Colour	Black
Net-weight	300g

Model

Description

TIMC1100-SFP

1*10/100M port and 1*100M SFP port;

2*DC12-60V power supply;

Supports relay alarm function for power off, network off
