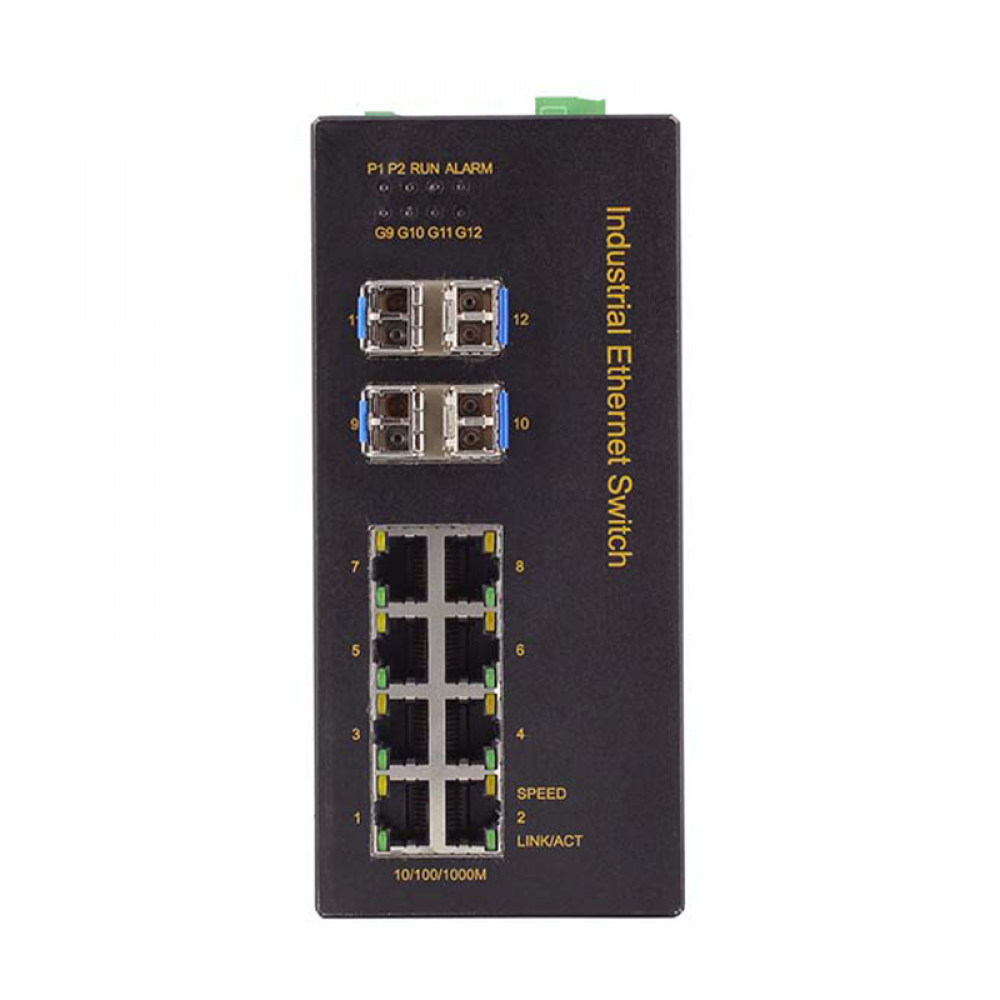

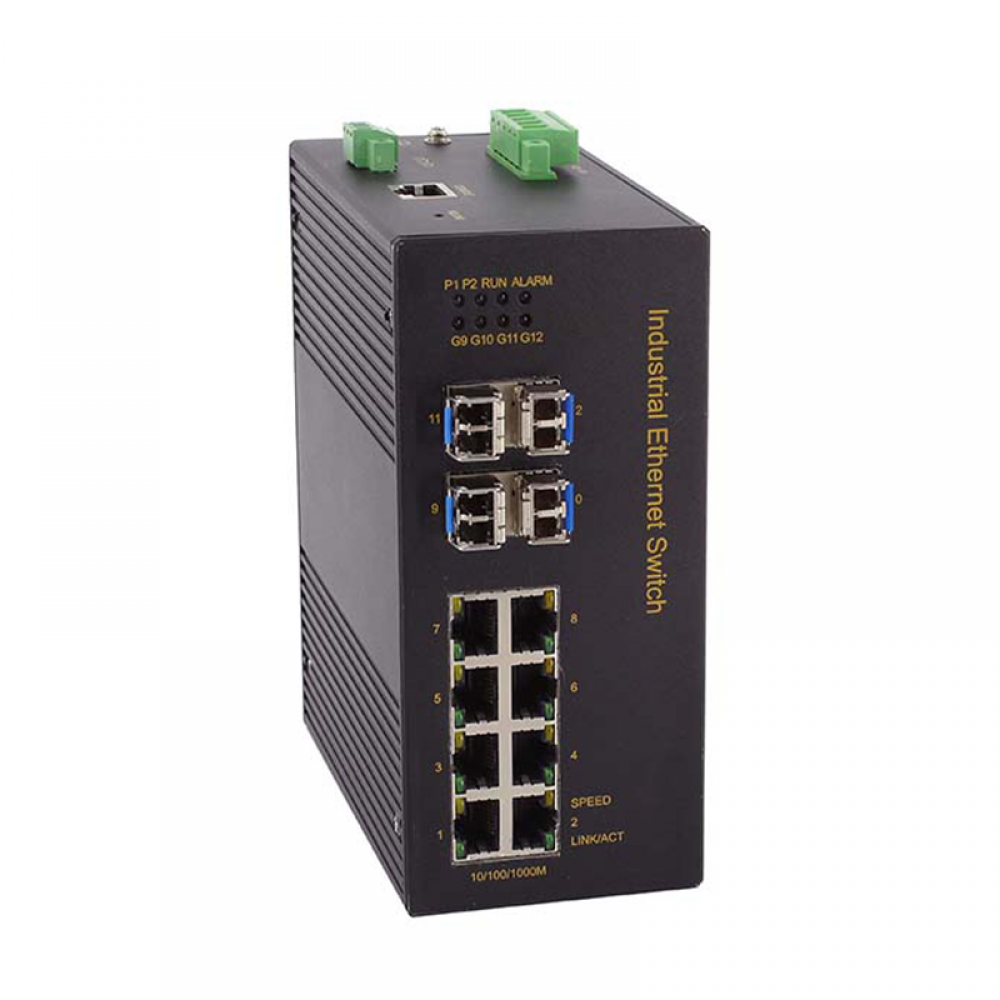

TIE7212-4GF is a high-performance, unmanaged industrial Ethernet switch with 4 Gigabit fiber ports and 8 Gigabit copper ports
which support 10/100/1000M adaptive, suitable for applications with large bandwidth requirements.
This product support power failure alarm output function, which is convenient for maintenance engineers to find and handle faults in time
-
Supports 4 Gigabit SFP ports+8 Gigabit RJ45 ports
-
Starts working once connected, quick and convenient
-
Supports status display indicator lights
-
Supports industry grade power supply.
-
Supports power-down status reply alarm output.
-
Wide temperature range design, fan-less thermal design
-
Industrial level 4 protection, satisfy harsh industrial environment
-
5 years warranty
|
Technical
parameters
|
|
Protocol
Standard
|
IEEE802.3(Ethernet), IEEE802.3u(100Base-TX&100Base-FX), IEEE802.3x(Flow control), IEEE802.3z(1000Base-LX), IEEE802.3ab (1000Base-T)
|
|
Switch
capability
|
|
MAC
Table Size
|
16k
|
|
Backplane bandwidth
|
24Gbps
|
|
Switch
Delay
|
<5μs
|
|
Interface
|
Gigabit port
|
Number: 12
|
Connector: SFP gigabit port(LC interface, single/multi-mode optional) or 10/100/1000M RJ45
|
Baud rate: 1000Base-FX(SFP), Self-adaption 10/100M-TX
|
Terminal block for power input
|
5.08mm terminal block
|
Terminal block for relay alarm
|
5.08mm terminal block, 1A@24VDC
|
|
Communication distance
|
|
Twisted-pair
|
100m(CAT5/CAT5e
cable)
|
|
Multi-mode
fiber
|
Gigabit
multi-mode: 850nm, 500m
|
|
Single
mode fiber
|
Gigabit
single mode: 1310nm, 20km
|
|
LED indicator
lights
|
|
Front
panel LED lights
|
Port light: LINK/ACT; SPEED
|
|
System work light: SYSTEM
|
|
Power
status light: PWR1
|
|
Power
|
|
Input power
|
Standard DC24V dual power supply;
optional DC48V dual power supply,
AC/DC220V (85-264VAC/110-370VDC) single
power supply
|
|
Power consumption
|
<15W@(MAX)
|
|
Overload protection
|
support
|
|
Inversed protection
|
support
|
|
Working Environment
|
|
Operating Temperature
|
-40°C~80°C
|
|
Storage temperature
|
-45°C~85°C
|
|
Ambient Humidity
|
10%~95%
|
|
Physical Characteristics
|
|
Shell
|
IP40 protection, aluminum alloy shell
|
|
Installation
|
standard DIN-rail Mounting
|
|
Dimension
|
156mm×120mm×72mm
|
|
Industry standard
|
|
EMC
|
EN61000-4-2(ESD), Level 4
EN61000-4-3(RS), Level 4
EN61000-4-4(EFT), Level 4
EN61000-4-5(Surge), Level 4
EN61000-4-6(CS), Level 4
|
|
Impact
|
IEC60068–2-27
|
|
Falling
|
IEC60068-2-32
|
|
Shock
|
IEC60068-2-6
|
|
Warranty
|
|
Warranty
|
5 Years
|
|
Certification
|
CE, FCC, RoHS
|
|
TIE7212-4GF
|
4 Gigabit Fx ports +8 Gigabit Tx
ports, dual DC12~48V wide voltage power supply
|
|
TIE7212-4GF-DC48
|
4 Gigabit Fx ports +8 Gigabit Tx
ports, dual DC48V(36~72V) isolate power supply
|
|
TIE7212-4GF-AD220
|
4 Gigabit Fx ports +8 Gigabit Tx
ports, single AC85-264V/DC110~370V isolate power supply
|
