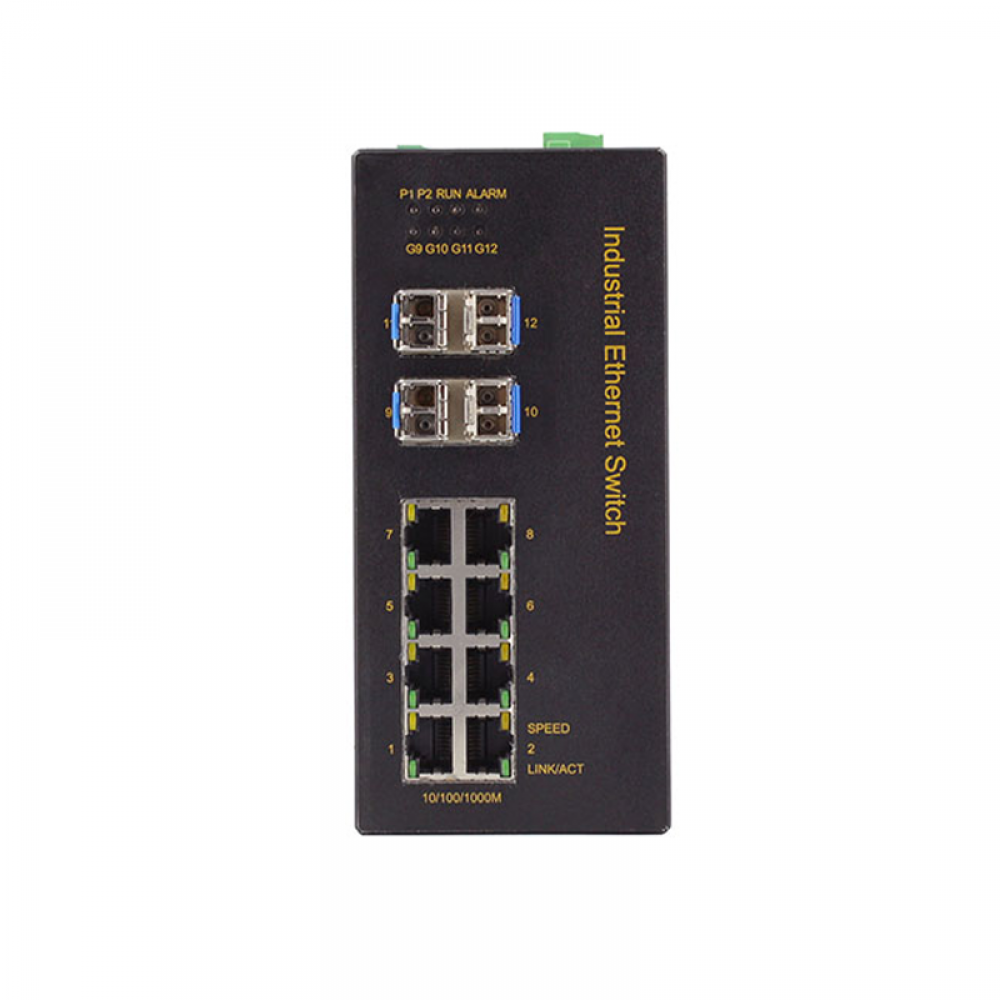

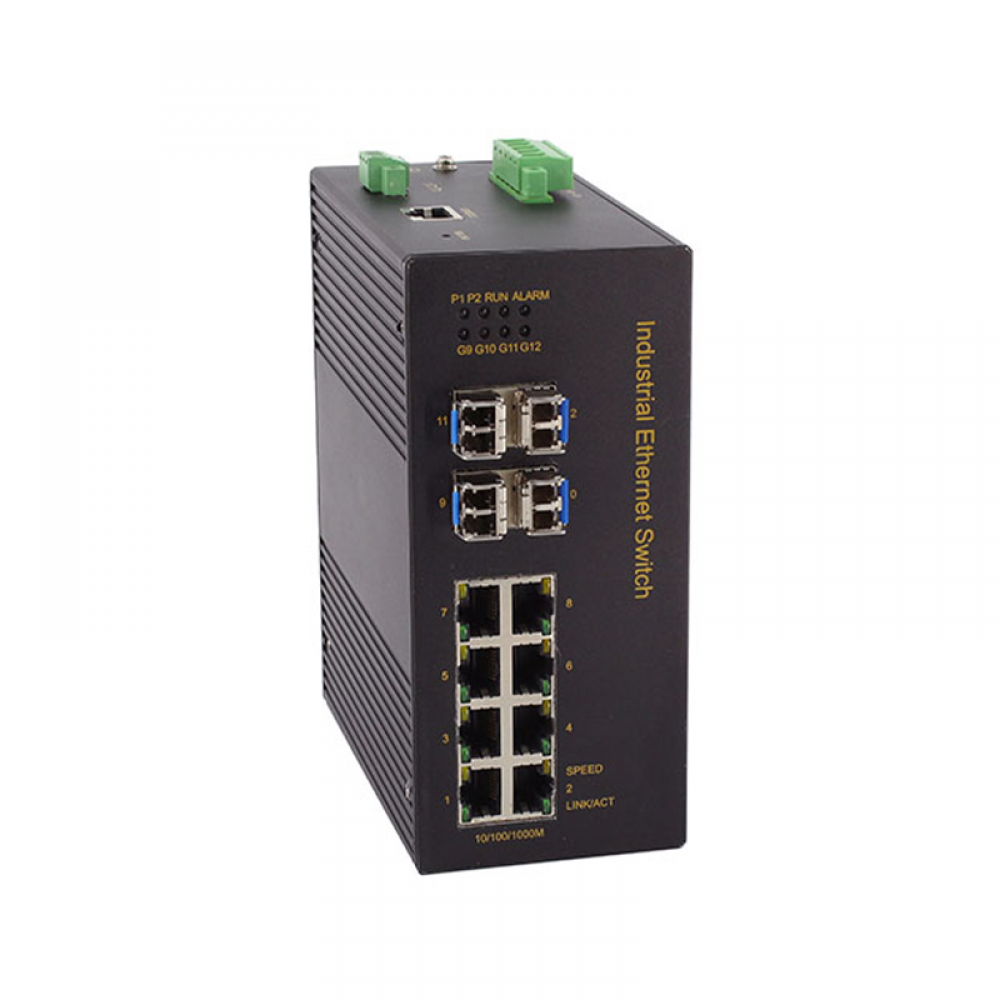

TMIE7212-4GF layer 2 full Gigabit industrial Ethernet switch is the high-performance Ethernet communication product
for industrial communication. It supports 4 Gigabit Fx ports + 8 Gigabit Tx ports, it is a standard 35mm din-rail installation switch
-
4 Gigabit Fx ports + 8 Gigabit Tx ports;
-
Supports indicator status display;
-
Supports T-Ring ring network patent technology (failure recovery time is less than 20ms);
-
Supports static multicast filtering technology, IGMP Snooping;
-
Supports broadcast storm suppression and port rate control functions;
-
Supports industrial grade dual power input backup;
-
Supports power-down status relay alarm output;
-
Supports network management functions such as VLAN, QoS, port aggregation, and port mirroring;
-
Industrial grade wide temperature design, fanless design;
|
Software performance
|
|
Redundancy protocol
|
Support T-Ring and the recovery time<20 ms.
Support STP/RSTP
|
|
Multicast routing
|
Support IGMP snooping/ IGMP v1/v2/v3
Support GMRP
Support static multicast
|
|
Management and
maintenance
|
Support CLI, WEB management method
Support SNMPv1/v2c
Support unified PC software management
|
|
Technical specifications
|
|
Ethernet Standard
|
IEEE802.3-10BaseT
IEEE802.3u-100BaseTX/100Base-FX
IEEE802.3x-Flow Control
IEEE802.3z-1000BaseLX
IEEE802.3ab-1000BaseTX
IEEE802.1ab logical link discovery protocol
IEEE802.1D-Spanning Tree Protocol
IEEE802.1w-Rapid Spanning Tree Protocol
IEEE802.1Q-VLAN Tagging
IEEE802.1p-Class of Service
IEEE802.1X -Port Based Network Access Control, etc.
|
|
Switch properties
|
|
Priority queue
|
8
|
|
Number of VLANs
|
4096
|
|
Number of multicast groups
|
512
|
|
MAC table
|
16k
|
|
Switch Bandwidth
|
24Gbps
|
|
Switch Delay
|
<5μs
|
|
Interface
|
|
Gigabit ports
|
Port numbers:12
|
|
Connector: SFP type Fx port(LC interface, single or multi-mode), or RJ45
type Tx port
|
|
Baud rate:1000Base-LX(fiber port), adaptive 10/100/1000M-Tx port
|
|
Console port
|
RS232/RJ45
|
|
Terminal block for power input
|
5.08mm terminal block
|
|
Terminal block for relay alarm
|
5.08mm terminal block,1A@24VDC
|
|
Communication distance
|
|
Twisted-pair
|
100m(CAT5/CAT5e cable)
|
|
Multi-mode fiber
|
Gigabit multi-mode: 850nm, 550m;
|
|
Single mode fiber
|
Gigabit single mode: 1310nm, 20km;
|
|
LED indicator lights
|
|
Front panel LED
|
Port light: LINK/ACT;SPEED;
|
|
Running light: RUN
|
|
Power LED: PWR1/PWR2
|
|
Alarm indicator: ALARM
|
|
Power
Requirements
|
|
Power input
|
Standard DC24V dual power supply; optional DC48V dual power supply,
AC/DC220V (85-264VAC/110-370VDC) single power supply
|
|
Full-load consumption
|
<15W
|
|
Overload
protection
|
support
|
|
Reverse
protection
|
support
|
|
Redundancy
protection
|
support
|
|
Working Environment
|
|
Operating
Temperature
|
-40°C~80°C
|
|
Storage temperature
|
-40°C~85°C
|
|
Ambient Humidity
|
5%~95%(
non-condensing)
|
|
Physical Characteristics
|
|
Shell
|
IP40
protection, aluminum alloy shell
|
|
Installation
|
Standard
35mm rail mounting
|
|
Dimension
|
156mm×120mm×72mm
|
|
Industry standard
|
|
EMC
|
EN61000-4-2(ESD),
Level 4
EN61000-4-3(RS),
Level 4
EN61000-4-4(EFT),
Level 4
EN61000-4-5(Surge),
Level 4
EN61000-4-6(CS),
Level 4
EN61000-4-8,
Level 5
|
|
Impact
|
IEC60068–2-27
|
|
Falling
|
IEC60068-2-32
|
|
Shock
|
IEC60068-2-6
|
|
Warranty
|
|
Warranty
period
|
5
Years
|
|
Certification
|
CE,
FCC, RoHS
|
|
TMIE7212-4GF
|
4 Gigabit Fx
ports +8 Gigabit Tx ports, dual DC12~48V wide voltage power supply.
|
|
TMIE7212-4GF-DC48
|
4 Gigabit Fx
ports +8 Gigabit Tx ports, dual DC48V (36~72V) isolated power supply.
|
|
TMIE7212-4GF-AD220
|
4 Gigabit Fx
ports +8 Gigabit Tx ports,, single AC85-264V/ DC110~370V isolated power
supply.
|
