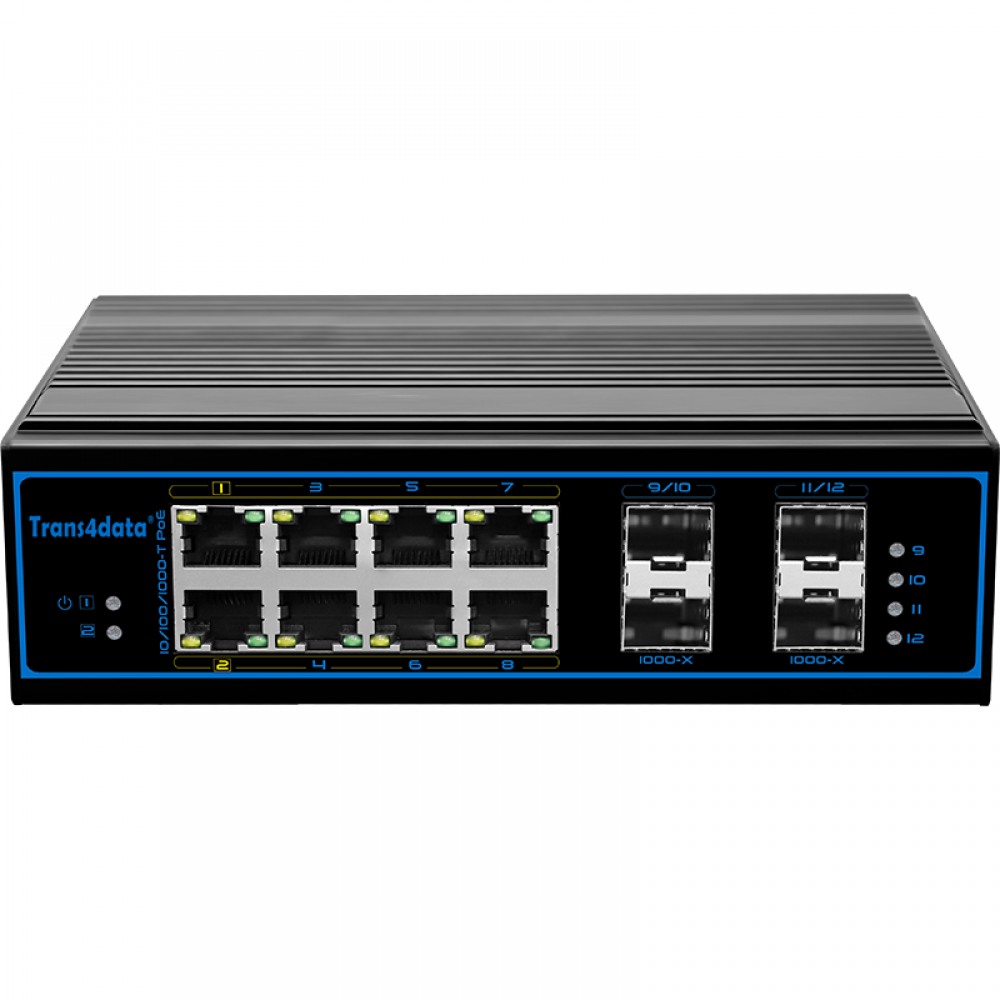

12 ports managed industrial PoE switch, 2 ports support 90W PoE

TMIE7212P-4GF is a 12-port full gigabit industrial managed PoE switch that supports up to 8*10/100/1000M PoE downlink ports,
4* 1000M SFP ports. 8*10/100/1000M ports support PoE+, conforming to IEEE 802.3af/at standard, support 2 port PoE power each up to 90W,
6 port PoE power each up to 30W.

TMIE7212P-4GF supports L2 management, such as QoS, VLAN, MSTP, Multi-brocast, ports management and PoE management.
It supports 6KV surge protection, 8KV contact/15KV air ESD protection.

TMIE7212P-4GF supports wall hanging, desktop and Din-rail installation, reliable and durable, and can be used in security network video monitoring,
network engineering and other occasions

8*10/100/1000M PoE downlink ports, 4*1000M SFP ports, with L2 network management;
Supports 2 port PoE power each up to 90W,6 port PoE power each up to 30W;
Supports L2 management, such as QoS, VLAN, MSTP, Multi-brocast, ports management and PoE management;
6KV surge protection, 8KV contact /15KV air ESD protection;
Supports working temperature -40℃～80℃

Parameter	Specifications
Power supply	Powered by power adaptor
Range of voltage	DC 48~57V
Consumption	Self consumption<20W
Downlink ports	Ports 1~2 10/100/1000Base-T 90W PoE RJ45(IEEE802.3bt,also support IEEE 802.3af/at) 3~8 10/100/1000Base-T 30W PoE RJ45(IEEE 802.3af/at)
Uplink ports	Ports 9~12 1000M SFP slots
Cable and distance	Use cat5e/6,100m max
Standard	IEEE802.3, IEEE802.3u, IEEE802.3z
Switch fabric	24Gbps
Though put	17.9Mpps
Buffer	4M
MAC address table	8K
Indicator	Power: 2 *red ; Uplink 9~12: green LEDs indicate Link/Act Downlink 1~8: On RJ45 green LEDs indicate Link/Act, yellow LEDs indicate PoE
Protection	Surge: 6KV, standard: IEC61000-4-5 ESD: 8KV: contact/15KV: air, standard:IEC61000-4-2
Working temperature	-40℃~80℃
Storage temperature	-40℃~85℃
Humidity	0~95%(No condensation)
Dimension(L×W×H)	165 mm×115 mm×50mm
Material	Metal
Colour	Black
Net-weight	1000g

Software

L2 Features	Port configuration	Auto-negotiation
		Flow Control
		Port Mirror
		Traffic statistics
	Link Aggregation	Static link aggregation
		LACP
		Algorithm based on Source/Destination MAC
		Algorithm based on Source/Destination IP
		8 groups
		8 ports per group
	MAC Table	Aging Time
		Static MAC address
		Dynamic MAC address management
	VLAN	4K Active VLANs
		4K VID
		802.1Q Tag VLAN
		Port VLAN
		Protocol VLAN
		MAC VLAN
		Management VLAN
		Voice VLAN
		Q-in-Q
		Private VLAN
		GARP/GVRP
	ACL	64 ACLs
		L2, L3 e L4
		Time-based ACL
	Spanning tree	802.1D Spanning Tree Protocol (STP)
		802.1w Rapid Spanning Tree Protocol (RSTP)
		802.1s Multiple Spanning Tree Protocol (MSTP)
		Loop Guard
		Root Guard
		TC-BPDU Guard
		BPDU Guard
		BPDU Filter
	Multicast	256 groups
		IGMP v1/v2/v3
		Fast Leave
		Multicast VLAN
		Static Multicast
		Multicast Filter
		IGMP Statistics
		MLD Snooping
	PoE management	Support total power consumption control
		Support single port PoE ON/OFF
		Support port output priority
	QOS	4 priority queues
		CoS port-based
		CoS 802.1p-based
		CoS DSCP-based
		Scheduling algorithms SP, WRR, SP+WRR
		Storm Control (Broadcast, Multicast, Unknown Unicast)
		Bandwidth control per port
Security Features	Port Security
	MAC address filter
	ARP Association (Manual, ARP scanning, DHCP snooping) up to 200 entries
	ARP Protection
	DoS (Denial of Service)
	Classification of packages based on: End.MAC, IP End, TCP / UDP Ports, Protocol Type
	802.1x Autentication (port-based e MAC-based)
	TACACS/TACACS+ Autentication
	RADIUS Autentication
	DHCP Filter
	Guest VLAN
	SSLv2/SSLv3/TLSv1
	SSHv1/SSHv2
	Restriction of WEB access based on: IP Address, And. MAC and Port
	Port Isolation
	Local User Name Password Authentication (2 levels)
	Loopback detection
Management	SNMP v1/v2c/v3
	RMON 4 grupos
	WEB (HTTP/HTTPS)
	CLI (Telnet, Console, SSHv1/v2)
	Firmware upgrade via console/web/TFTP
	Configuration Backup/Reload
	All possible configurations in the CLI must exist in the WEB interface
	LLDP
Other Features	DHCP Relay
	DHCP Client
	DHCP Snooping
	DHCP Option 82
	SNTP Client
	BOOTP Client
Maintenance	Ping and Tracert
	System log (Local and Remote)
	Memory and CPU Monitoring

Model

Description

TMIE7212P-4GF

8*10/100/1000M PoE ports, 4*1000M SFP ports,1~2 support 90W,3~8 port support 30W;

Supports L2 management, such as QoS, VLAN, MSTP, Multi-brocast, ports management and PoE management; 6KV surge protection, 8KV contact /15KV air ESD protection.

12 ports full gigabit managed industrial PoE switch, 2 ports support 90W
