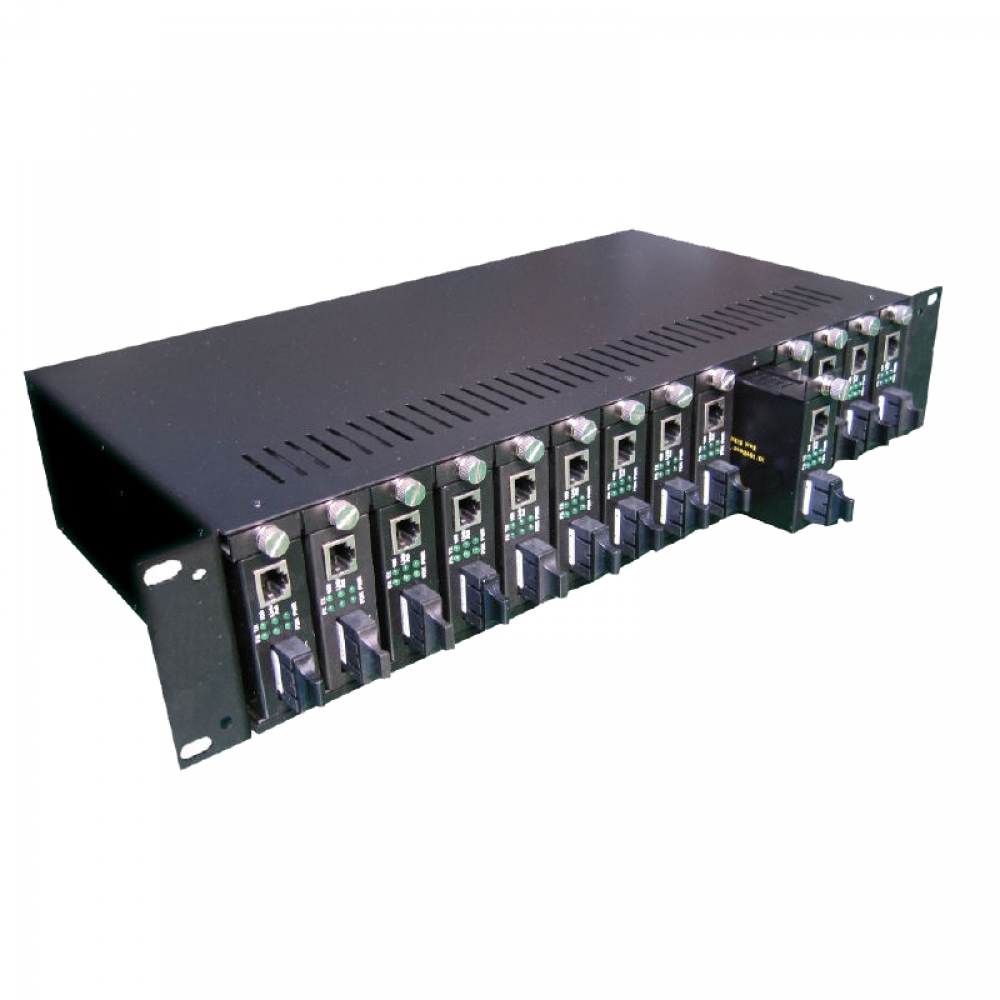

TS14 is a kind of cost-effective chassis (2U) widely used to provide power for media converter
standalone type in the equipment room. Different types of module type media converter developed
by our company can be inserted into this rack, whose total slots up to 14.

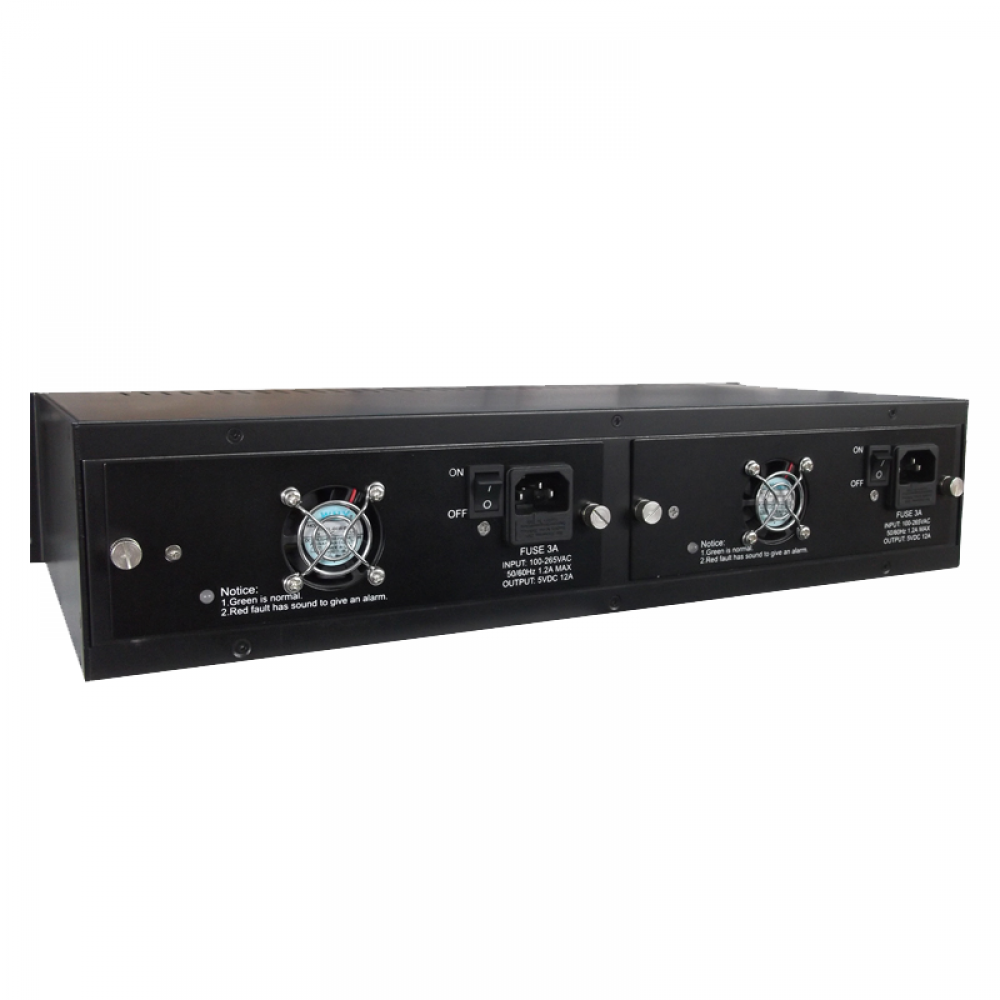

It is furnished with two power supplies: main power supply and spare one, and supports its automatic switch-over
-
The configuration of active/standby power supply ensures uninterruptible operation of the system
-
Provides two power supplies (two AC 220V or two DC -48V, or one AC 220V and one DC 48V), enabling the system can work under many operating environments
-
Supporting simultaneous operation of several module-type media converters at different rates, which greatly improves system adaptability
-
Every card supports hot swapping
-
Application for module types: TMC1100 series, TMC2100, TMC2101 series
|
Parameter
|
Specifications
|
|
Number of slots
|
14
|
|
Structure
|
2U rack
|
|
Power input
|
AC Voltage: AC 85~265V; frequency: 50/60 Hz
|
|
|
DC voltage: DC -36~72V
|
|
Power output
|
DC5V 16A
|
|
Ripple
|
≤20 mv
|
|
Power configuration
|
Single power supply, or Dual power supply for warm backup mode
|
|
LED indication
|
POWER (power supply)
|
|
Max power consumption
|
95W
|
|
Operating temperature
|
-10~55ºC
|
|
Operating humidity
|
5%~90%
|
|
Maintaining temperature
|
-40~70ºC
|
|
Maintaining humidity
|
5% ~ 90% non-condensing
|
|
Dimensions of rack
|
90mm (H)×428mm (W)×245mm (D) (excl. suspension loop)
|
|
TS14-2-A
|
14 slots media converter chassis with 2*AC220 power supply
|
|
TS14-2-D
|
14 slots media converter chassis with 2*DC48 power supply
|
|
TS14-A-D
|
14 slots media converter chassis with one AC220V and one DC 48V power supply
|
