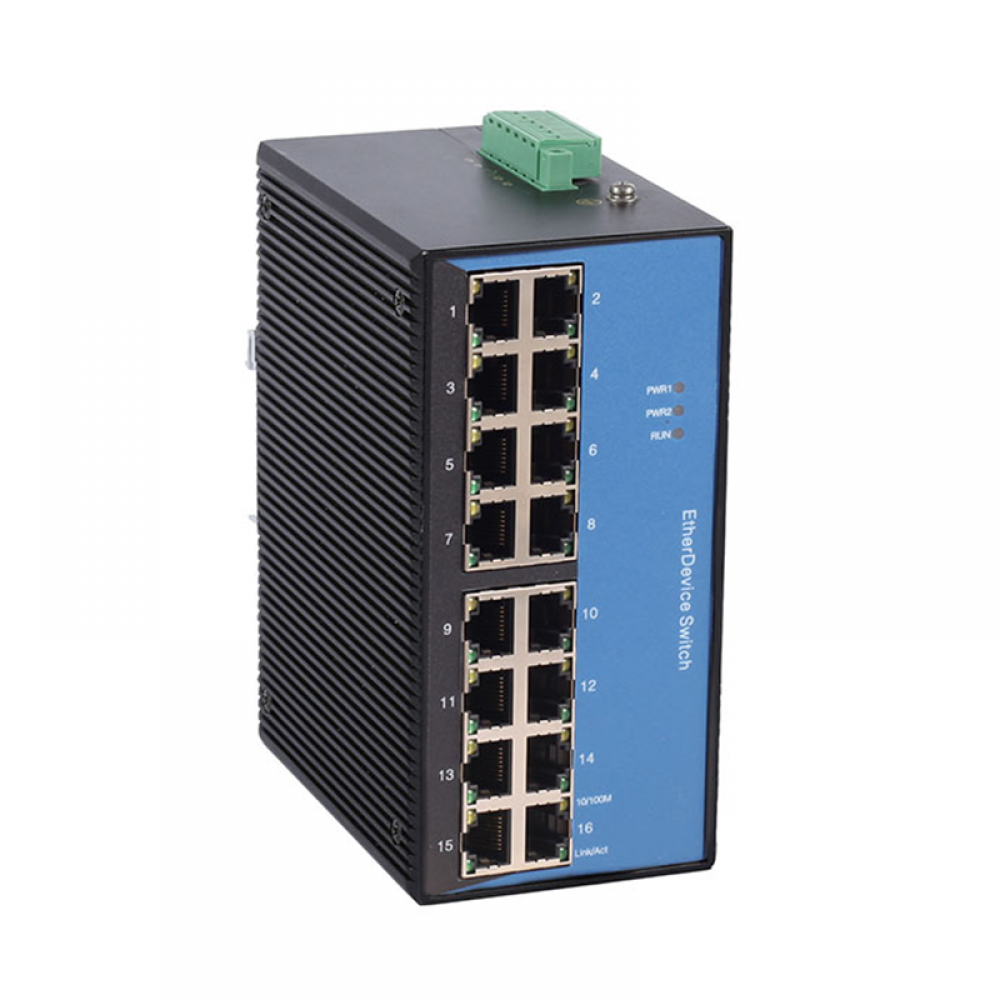

16 ports 10/100M Din-rail mounting unmanaged industrial Ethernet switch

TIE6216 is an industrial Ethernet switch designed and developed for industrial high-speed communication network applications.
The switch is mainly used for simple application in plug and play. All electrical ports support auto-negotiation, Auto-MDI/ MDI-X
and other functions. It makes industrial communications smoother, more reliable and faster which meets the needs of customers
to innovate to increase value-added applications. It supports AC and DC 220V power and also supports wide range DC and AC power inputs

16x10/100M RJ45 ports
Starts working once connected, quick and convenient
Supports status display indicator lights
Supports industry power supply
Supports power-down status reply alarm output
Wide temperature range design, fan-less thermal design
Industrial level 4 protection, satisfy harsh industrial environment
5 years warranty

Technical parameters
Protocol Standard	IEEE802.3i-10BaseT, IEEE802.3u-100BaseTX/100BaseFX IEEE802.3x-Flow Control
Switch capability
MAC Table Size	8k
Backplane bandwidth	3.2Gbps
Switch Delay	<5μs
Interface
100M port	Number: 16
	Connector: RJ45 100M TX port
	Baud rate: Self-adaption 10/100Mbase-TX
Terminal block for power input	5.08mm terminal block
Terminal block for relay alarm	5.08mm terminal block, 1A@24VDC
Communication distance
Twisted-pair	100m(CAT5/CAT5e cable)
LED indicator lights
Front panel LED lights	Port light: LINK/ACT; SPEED
	System work light: RUN
	Power status light: PWR1; PWR2
Power
Input power	DC110~220V (Wide voltage: DC110~370V) or AC100~240V (Wide voltage: AC85~264V) Support optional for DC12V, DC24V, DC48V
Power consumption	<10W@(MAX)
Overload protection	support
Inversed protection	support
Redundancy protection	support
Working Environment
Operating Temperature	-40°C~80°C
Storage temperature	-40°C~85°C
Ambient Humidity	5%~95%
Physical Characteristics
Shell	IP40 protection, aluminum alloy shell
Installation	Standard 35mm DIN-rail Mounting
Dimension	72.0mm144.0mm110.0mm
Industry standard
EMC	EN61000-4-2(ESD), Level 4 EN61000-4-3(RS), Level 4 EN61000-4-4(EFT), Level 4 EN61000-4-5(Surge), Level 4 EN61000-4-6(CS), Level 4 EN61000-4-8, Level 5
Impact	IEC60068–2-27
Falling	IEC60068-2-32
Shock	IEC60068-2-6
Warranty
Warranty	5 Years
Certification	CE, FCC, RoHS

TIE6216-DC12	16 *10/100M Tx ports, din-rail mounted, dual DC12V(9~18V) isolate power supply
TIE6216-DC24	16*10/100M Tx ports, din-rail mounted, dual DC24V(18~36V) isolate power supply
TIE6216-DC48	16 *10/100M Tx ports, din-rail mounted, dual DC48V(36~72V) isolate power supply
TIE6216-AD220	16* 10/100M Tx ports, din-rail mounted, single AC85-264V/DC110~370V isolate power supply
