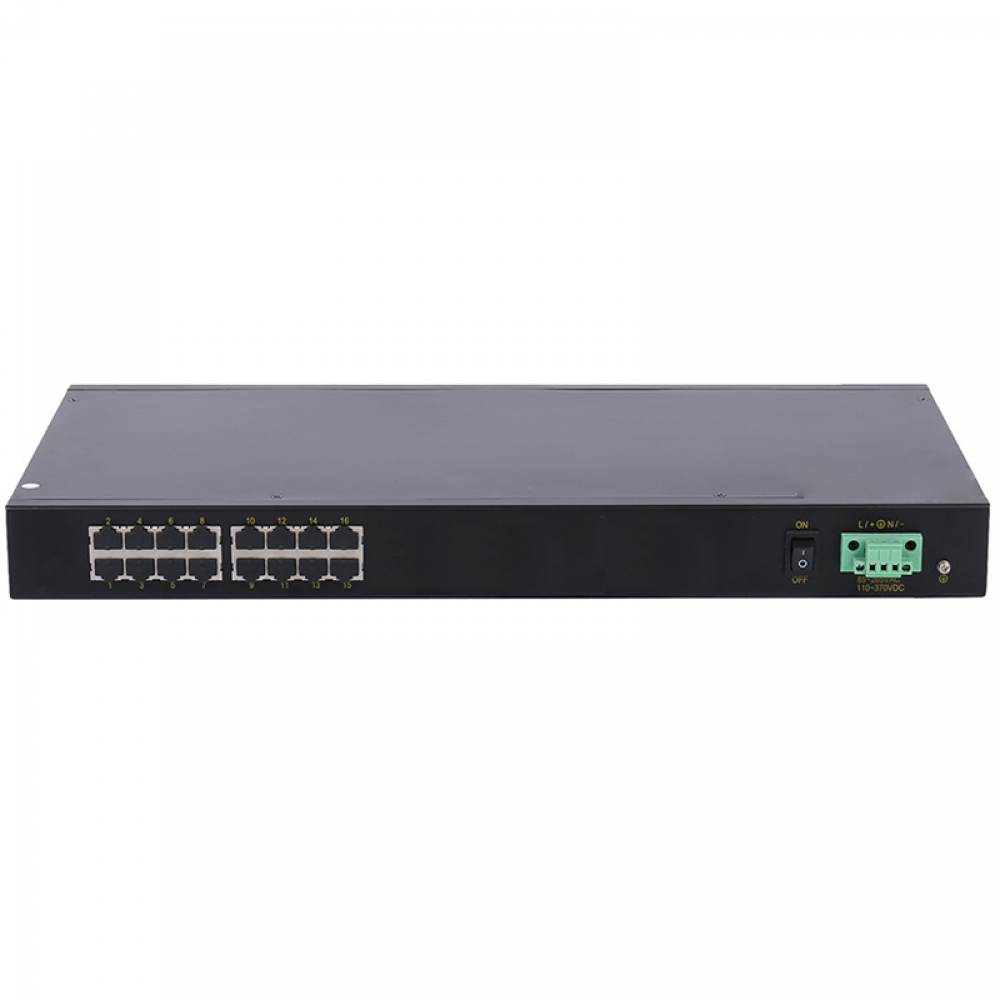

16 ports 10/100MBase rack-mount Layer 2 unmanaged industrial Ethernet switch

TIE6116 is an industrial Ethernet switch designed and developed for industrial high-speed communication network applications.
The switch is mainly used for simple application in plug and play. All electrical ports support auto-negotiation,
Auto-MDI/MDI-X and other functions. It makes industrial communications smoother, more reliable and faster,
which meets the needs of customers to innovate to increase value-added applications.
It supports AC and DC 220V power supply and also supports wide range of DC and AC power inputs

16x10/100M RJ45 ports;
Supports front and back sides indicator lights, fiber indicator lights with status display ;
Starts work once connected, quick and convenient;
Supports isolated power supply, optional dual redundant power supply;
Wide temperature range design, fan-less thermal design;
Satisfy harsh industrial environment;
5 years warranty

Technical parameters

Protocol Standard

IEEE802.3(Ethernet )、IEEE802.3u (100Base-TX&100Base-FX)、IEEE802.3x (Flow Control)

Switch capability

MAC Table Size

8k

Backplane bandwidth

4.8Gbps

Switch Delay

<5μs

Interface

100M port

Number:16

Connector: RJ45 100M TX port

Baud rate: Self-adaption 10/100Mbase-TX

Terminal block for power input

 5.08mm terminal block

Communication distance

Twisted-pair

TIE6116-AD220

16 10/100M Tx ports, layer 2 rack-mounted industrial Ethernet switch, single AC85-264V/DC110~370Visolate power supply.
