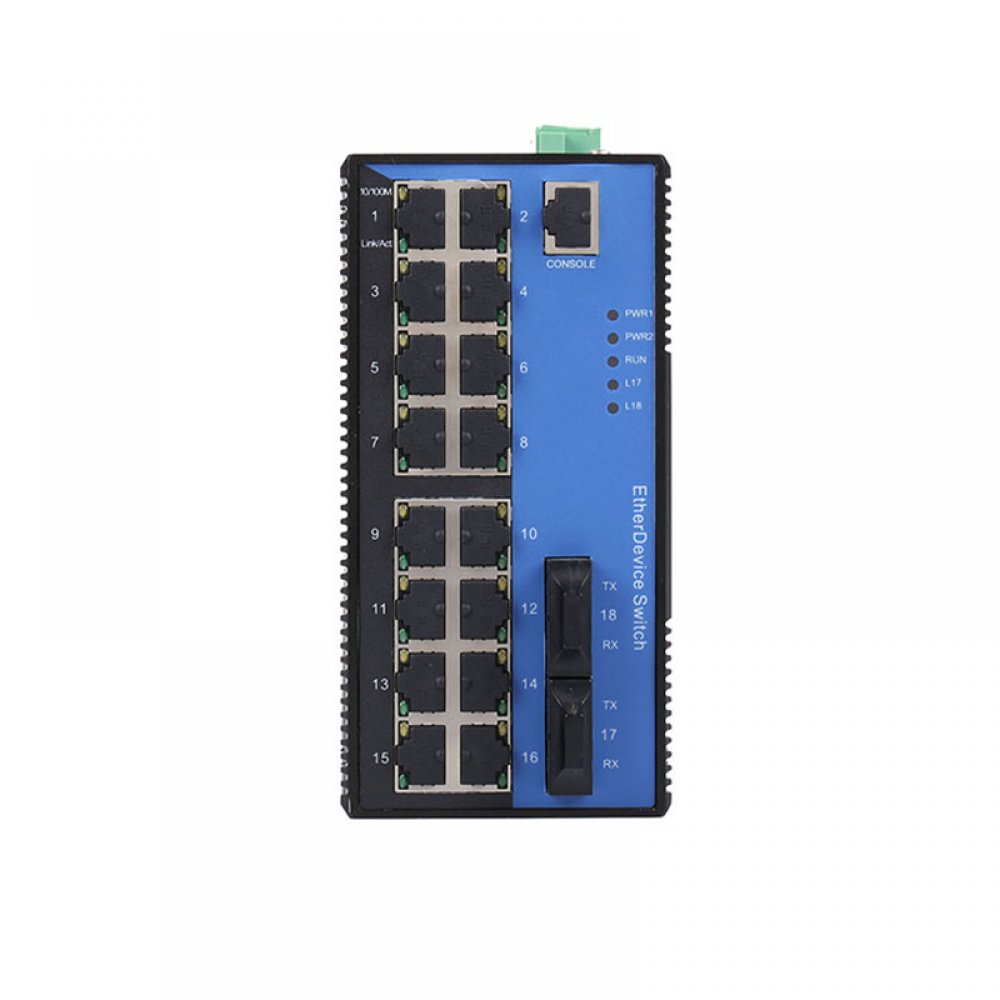

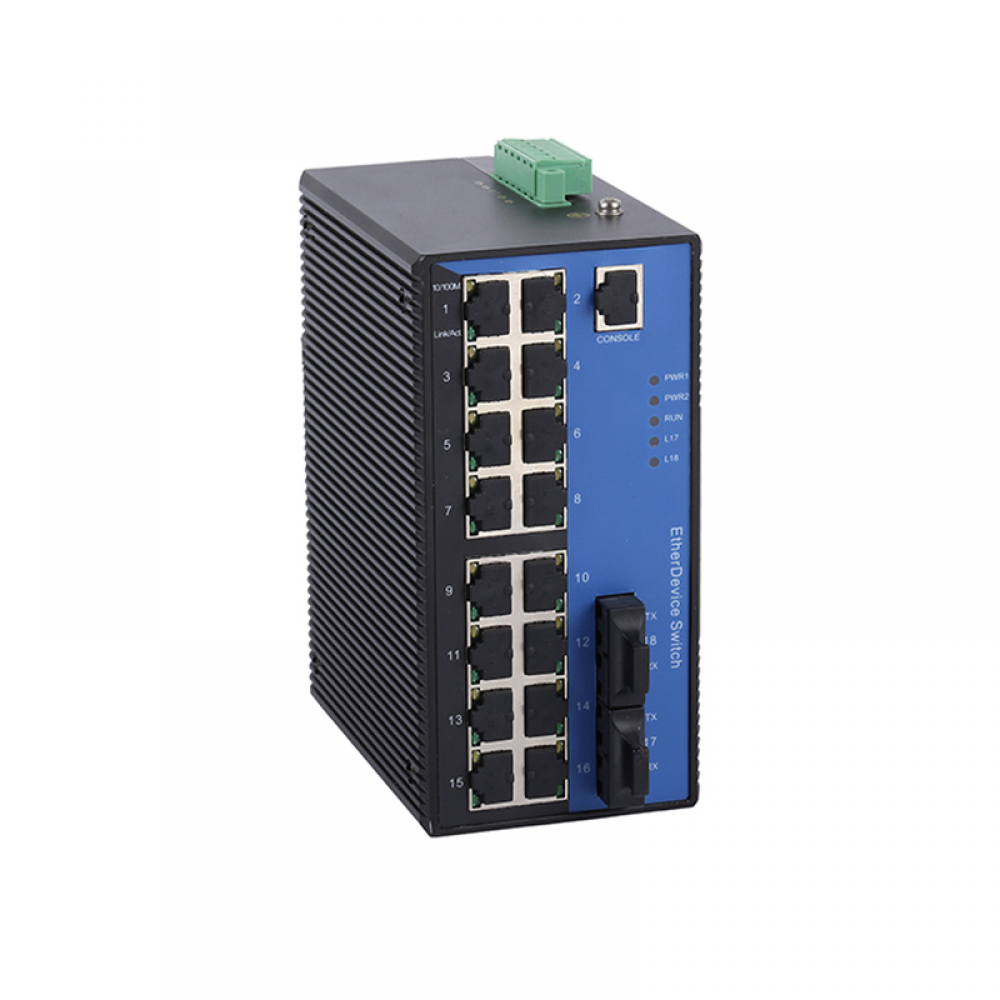

TMIE6218-2F 10/100M managed din rail industrial Ethernet switch is an industrial Ethernet switch designed and
developed by Trans4data for industrial high-speed communication network applications. It provides a high-end
industrial Ethernet communication solution for flexible industrial applications, making industrial communications smoother,
more reliable and faster, meeting the needs of customers for innovative value-added applications
-
2x10/100BaseF(x) port+16x10/100BaseT(x);
-
Supports T-Ring with the recovery time<20ms;
-
Supports broadcast storm suppression/ Rate limit;
-
Support static multicast/IGMP Snooping;
-
Supports VLAN/ Qos/ Port link aggregation /port mirroring ;
-
Supports industrial grade dual power input backup;
-
Supports power-down status relay alarm output;
-
Industrial grade wide temperature/ fanless design;
-
5 years warranty.
|
Software performance
|
|
Redundancy
protocol
|
Support T-Ring and the recovery time<20ms.
Support STP/RSTP
|
|
Multicast
routing
|
Support IGMP snooping/ IGMP v1/v2/v3
Support GMRP
Support static multicast
|
|
Management
and maintenance
|
Support Console and Web management methods
Support SNMPv1/v2c
Support unified PC software management
|
|
Technical specifications
|
|
Ethernet
Standard
|
IEEE802.3-10BaseT
IEEE802.3u-100BaseTX/100Base-FX
IEEE802.3x-Flow Control
IEEE802.1D-Spanning Tree Protocol
IEEE802.1w-Rapid Spanning Tree Protoco
IEEE802.1Q -VLAN Tagging
IEEE802.1p -Class of Service
IEEE802.1X-Port Based Network Access Control
|
|
Switch
properties
|
|
Priority queue
|
4
|
|
VLAN ID
|
1-4096
|
|
IGMP Groups
|
256
|
|
MAC table
|
8k
|
|
Switch Bandwidth
|
4Gbps
|
|
Switch Delay
|
<5μs
|
|
Interface
|
|
10/100Base ports
|
Port numbers:18
|
|
Connector: 9 fixed F(x)(Single/multi-mode or SC/FC/ST
port available) or RJ45
|
|
Baud rate: 100Base-FX(fiber port), 10/100/1000M for
adaptive port
|
|
Console port
|
RS232/RJ45
|
|
Terminal block for power input
|
5.08mm terminal block
|
|
Terminal block for relay alarm
|
5.08mm terminal block, 1A@24VDC
|
|
Communication distance
|
|
Twisted-pair
|
100m(CAT5/CAT5e cable)
|
|
Multi-mode fiber
|
10/100Base multi-mode: 1310nm 2km
|
|
Single mode fiber
|
10/100Base single mode: 1310nm 20/40km;1550nm 60/80km
|
|
LED indicator
lights
|
|
Front panel LED
|
Port light: LINK/ACT, SPEED
|
|
Running light: RUN
|
|
Power LED: PWR1/PWR2
|
|
Power
Requirements
|
|
Power input
|
DC110~220V（DC110~370V range）or AC100~240V（AC85~264V range）DC12V/DC24V/DC48V available
|
|
Full-load consumption
|
<10W
|
|
Overload protection
|
support
|
|
Inversed protection
|
support
|
|
Redundancy protection
|
support
|
|
Working Environment
|
|
Operating Temperature
|
-40°C~80°C
|
|
Storage temperature
|
-40°C~85°C
|
|
Ambient Humidity
|
5%~95%( non-condensing)
|
|
Physical Characteristics
|
|
Shell
|
IP40 protection, aluminum alloy shell
|
|
Installation
|
35mm din rail-mounted installation
|
|
Dimension
|
72mmx144mmx110mm
|
|
Industry
standard
|
|
EMC
|
EN61000-4-2(ESD), Level 4
EN61000-4-3(RS), Level 4
EN61000-4-4(EFT), Level 4
EN61000-4-5(Surge), Level 4
EN61000-4-6(CS), Level 4
EN61000-4-8, Level 5
|
|
Impact
|
IEC60068–2-27
|
|
Falling
|
IEC60068-2-32
|
|
Shock
|
IEC60068-2-6
|
|
Warranty
|
|
Warranty period
|
5 Years
|
|
Certification
|
CE/FCC/RoHS
|
|
TMIE6218 -2F(S/M)-DC12
|
2 10/100M Fx ports +16 10/100M Tx
ports, dual DC12V(9~18V) isolate power supply
|
|
TMIE6218-2F(S/M)-DC24
|
2 10/100M Fx ports +16 10/100M Tx
ports, dual DC24V(18~36V) isolate power supply
|
|
TMIE6218-2F(S/M)-DC48
|
2 10/100M Fx ports +16 10/100M Tx
ports, dual DC48V(36~72V) isolate power supply
|
|
TMIE6218-2F(S/M)-AD220
|
2 10/100M Fx +16 10/100M Tx, single AC85-264V/ DC110~370V isolate power supply
|
