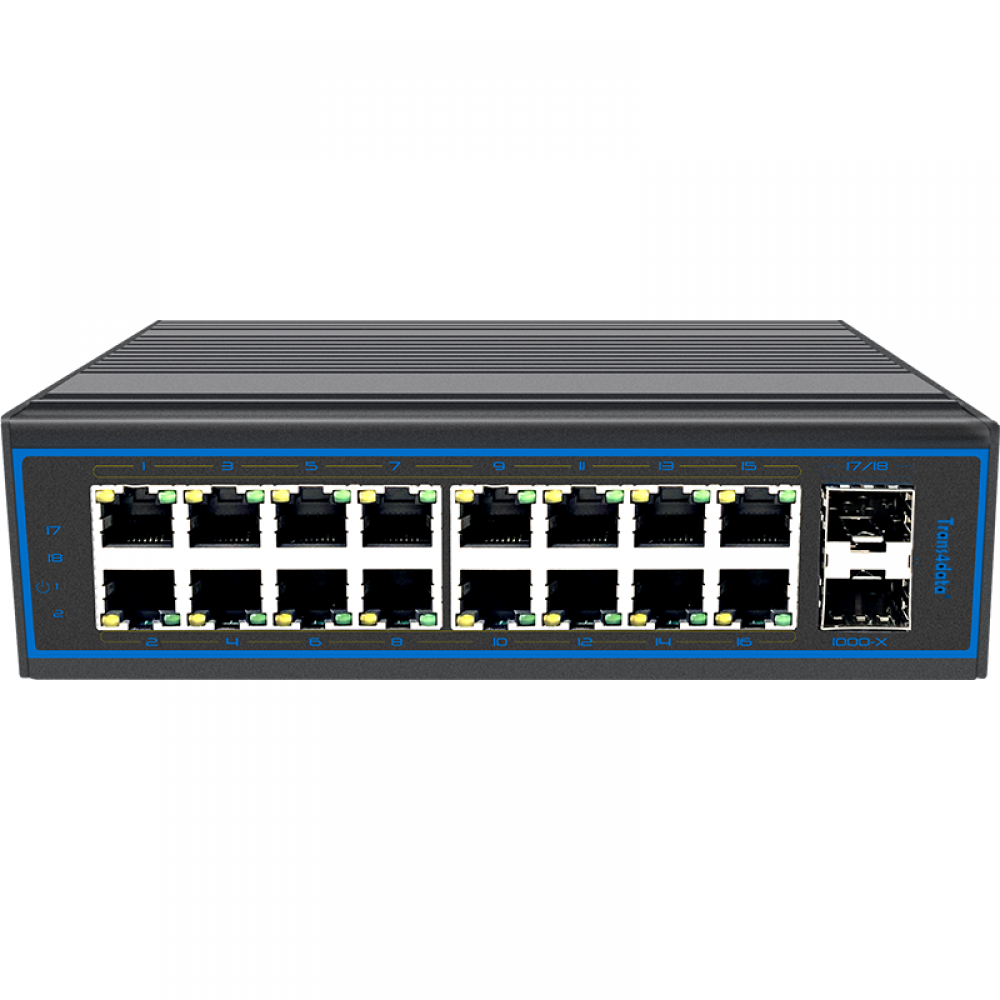

18 ports full gigabit layer 3 managed industrial PoE switch

Model No.: TMIE7218P-2GF-L3

  • 16*10/100/1000M PoE downlink ports, 2*1000M SFP ports;
  • Supports PoE power each up to 30W;
  • Supports L3 managment, such as OSPF, RIP, QoS, VLAN, MSTP, Multi-brocast, ports management and PoE management;
  • 6KV surge protection, 8KV contact /15KV air ESD protection;
  • Supports working temperature -40℃~80℃
  • 5 years warranty

OverviewFeaturesSpecificationApplicationOrder Information
TMIE7218P-2GF-L3 is a 16-port full gigabit industrial managed PoE switch that supports up to 16*10/100/1000M PoE downlink ports,
2* 1000M SFP ports. 16*10/100/1000M ports support PoE+, conforming to IEEE 802.3af/at standard, PoE power each port up to 30W.

TMIE7218P-2GF-L3 supports L3 managment, such as OSPF, RIP, QoS, VLAN, MSTP, Multi-brocast, ports management and PoE management
and supports 6KV surge protection, 8KV contact/15KV air ESD protection.

TMIE7218P-2GF-L3 supports wall hanging, desktop and Din-rail installation, reliable and durable, and can be used in
security network video monitoring, network engineering and other occasions


  • 16*10/100/1000M PoE downlink ports, 2*1000M SFP ports;
  • Supports PoE power each up to 30W;
  • Supports L3 managment, such as OSPF, RIP, QoS, VLAN, MSTP, Multi-brocast, ports management and PoE management;
  • 6KV surge protection, 8KV contact /15KV air ESD protection;
  • Supports working temperature -40℃~80℃


Parameter

 Specifications

Power supply

Powered by power adaptor

Range of voltage

2*DC 48~57V, redundancy power supply

Consumption

Self consumption<20W

Downlink ports

10/100/1000Base-T 30W PoE RJ45(IEEE 802.3af/at)

Uplink ports

Ports 17~18 1000M SFP slots

Cable and distance

Use cat5e/6,100m max

Standard

IEEE802.3, IEEE802.3u, IEEE802.3z

Switch fabric

36Gbps

Though put

26.78Mpps

Buffer

4M

MAC address table

16K

Indicator

Power: 2 *red ;

Uplink 17~18: green LEDs indicate Link/Act

Downlink 1~16: On RJ45 green LEDs indicate Link/Act, yellow LEDs indicate PoE

Protection

Surge: 6KV, standard: IEC61000-4-5

ESD: 8KV: contact/15KV: air, standard:IEC61000-4-2

Working temperature

-40~80

Storage temperature

-40~85

Humidity

0~95%(No condensation)

Dimension(L×W×H)

165 mm×115 mm×50mm

Material

  Metal

Colour

Black

Net-weight

530g


Software

L2 Features

Port configuration

Auto-negotiation



Flow Control

Port Mirror



Traffic statistics



Link Aggregation

Static link aggregation



LACP



Algorithm based on Source/Destination MAC



Algorithm based on Source/Destination IP



8 groups



8 ports per group



MAC Table

Aging Time



Static MAC address



Dynamic MAC address management



VLAN

4K Active VLANs



4K VID



802.1Q Tag VLAN



Port VLAN



Protocol VLAN



MAC VLAN



Management VLAN



Voice VLAN



Q-in-Q



Private VLAN



GARP/GVRP



ACL

64 ACLs



L2, L3 e L4



Time-based ACL



Spanning tree

802.1D Spanning Tree Protocol (STP)



802.1w Rapid Spanning Tree Protocol (RSTP)



802.1s Multiple Spanning Tree Protocol (MSTP)



Loop Guard



Root Guard



TC-BPDU Guard



BPDU Guard



BPDU Filter



Multicast

256 groups



IGMP v1/v2/v3



Fast Leave



Multicast VLAN



Static Multicast



Multicast Filter



IGMP Statistics



MLD Snooping



PoE management

Support total power consumption control



Support single port PoE ON/OFF



Support port output priority



QOS

4 priority queues



CoS port-based



CoS 802.1p-based



CoS DSCP-based



Scheduling algorithms SP, WRR, SP+WRR



Storm Control (Broadcast, Multicast, Unknown Unicast)



Bandwidth control per port



Security Features

Port Security



MAC address filter



ARP Association (Manual, ARP scanning, DHCP snooping) up to 200 entries



ARP Protection



DoS (Denial of Service)



Classification of packages based on: End.MAC, IP End, TCP / UDP Ports, Protocol Type



802.1x Autentication (port-based e MAC-based)



TACACS/TACACS+ Autentication



RADIUS Autentication



DHCP Filter



Guest VLAN



SSLv2/SSLv3/TLSv1



SSHv1/SSHv2



Restriction of WEB access based on: IP Address, And. MAC and Port



Port Isolation



Local User Name Password Authentication (2 levels)



Loopback detection



Management

SNMP v1/v2c/v3



RMON 4 grupos



WEB (HTTP/HTTPS)



CLI (Telnet, Console, SSHv1/v2)



Firmware upgrade via console/web/TFTP



Configuration Backup/Reload



All possible configurations in the CLI must exist in the WEB interface



LLDP



Other Features

DHCP Relay



DHCP Client



DHCP Snooping



DHCP Option 82



SNTP Client



BOOTP Client



Maintenance

Ping and Tracert



System log (Local and Remote)



Memory and CPU Monitoring



L3 Features

Static Routing



OSPFv2



RIPv1/v2



DHCP Server



IPV6

IPv6 neighbor discovery (ND)



Path maximum transmission unit (MTU) discovery



Internet Control Message Protocol (ICMP) version 6



TCPv6/UDPv6



Ping6



Tracert6



Telnet(v6)



Http/Https



IPv6 TFTP



Static Routing



Interface IPV6








Model

Description

TMIE7218P-2GF-L3

16*10/100/1000M PoE ports, 2*1000M SFP ports,

1~16 ports support 30W;

2*48~57VDC; Support L3 management, such as OSPF, RIP, QoS, VLAN, MSTP, Multi-brocast, ports management and PoE management;

6KV surge protection, 8KV contact /15KV air ESD protection.
