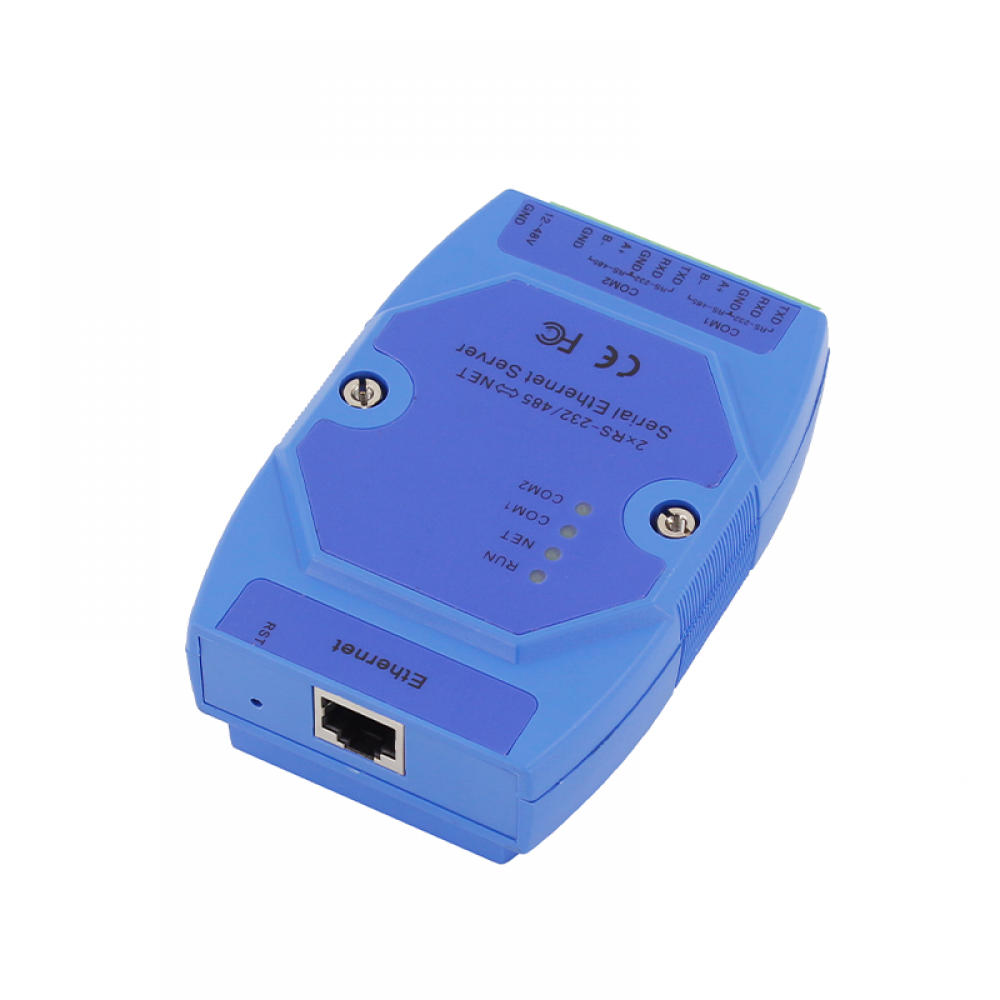

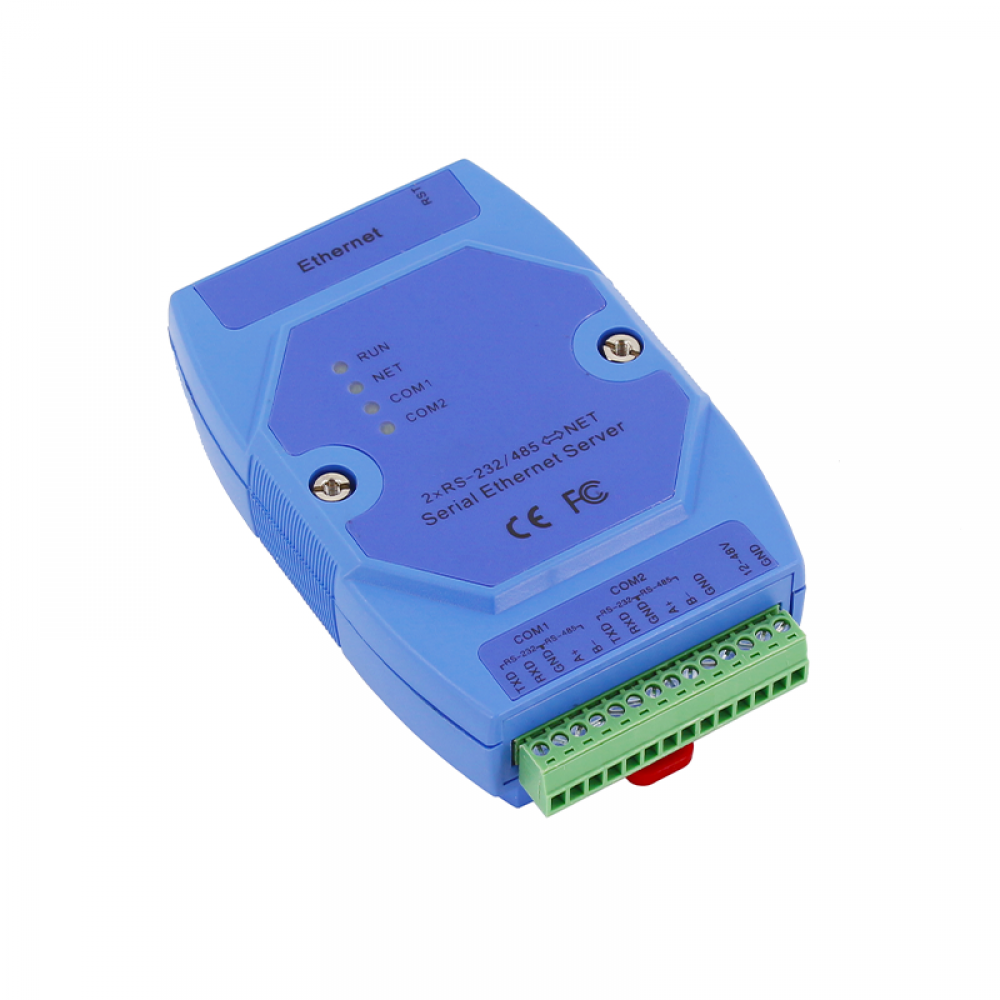

2 ports RS232/RS485/RS422 serial To Ethernet server

Model No.: TSD322

  • 1 *10/100M Tx port, 2 *RS232/RS485/RS422 serial to Ethernet;
  • Support Windows/Linux COM/TTY driver;
  • Standard TCP/IP interface and rich application mode;
  • 15KV ESD protection for all serial ports;
  • Convenient Web/Telnet operation configuration;
  • Ultra low voltage starts up technology;
  • Supports V4-Lite management software.
OverviewFeaturesSpecificationApplicationOrder Information
TSD322 series products mainly realize data transmission between Ethernet and serial port (RS-232/RS-485/RS-422).
This series of products is based on the 32-bit ARMCortex-M4 master CPU to realize one Ethernet interface and
one serial port communication and data exchange. These series of products converts serial devices
into Ethernet network communication in industrial automation fields

  • 1 *10/100M Tx port, 2 *RS232/RS485/RS422 serial to Ethernet
  • Ultra-low power design
  • Support Windows/Linux COM/TTY driver
  • Standard TCP/IP interface and rich application mode;
  • 15KV ESD protection for all serial ports;
  • Convenient Web/Telnet operation configuration
  • Ultra low voltage starts up technology;
  • Supports V4-Lite management software

Technical parameters

Standard

IEEE802.3u, IEEE802.3x

protocol

TCP, UDP, TCP/ IP, ICMP

CPU Parameter

CPU

ARM Cortex-M4 core 100MHz/32-bit

RAM

128KB

FLASH

512KB

Build-in watchdog

Support

Interface

Interface form

100M TX port:10/100Base-TX self-adaptive RJ45 port

Serial port: RS-232/RS-485, Industrial Terminals

Ethernet Port : 10/100Base-TX,RJ45 port(Support auto-negotiation, support MDX/MDIX )

Serial port

Data transmission error rate: <10-9
Interface electrical characteristics: Compliant with 3-wire RS-232, 2-wire, RS-485 related standards

Data bit: 8

Stop bit: 1

Check Digit: None, Even, Odd, Space, Mark

Flow Control: Auto-control

Baud rate: 300bps~115200bps

Power indicator

System operation light

RUN

Network indicator light

NET

Serial port transceiver indicator

RX,TX

Power

Power Supply

DC12~ 48V

Power consumption

1.4W@24V

Power protection

Reverse power polarity protection

Physical Characteristics

Shell

DB9 plastic case

Dimension

102mm×26mm×72mm

Transmission distance

Serial port line

RS-232,15m@9600bps

RS-422/RS-485, 1.2km@9600bps

Twisted-pair

100m(CAT5/CAT5e cable)

Working Environment

Operating Temperature

-40°C~70°C

Storage temperature

-40°C~80°C

Ambient Humidity

5%~95%

Warranty

Warranty

3 Years

Certification

Certification

CE, FCC



TSD322

2 *RS232/485/422 terminal block to 1 *10/100M Ethernet port din-rail mounted serial to Ethernet server, DC12~48V power supply. The power adapter is not included as standard
