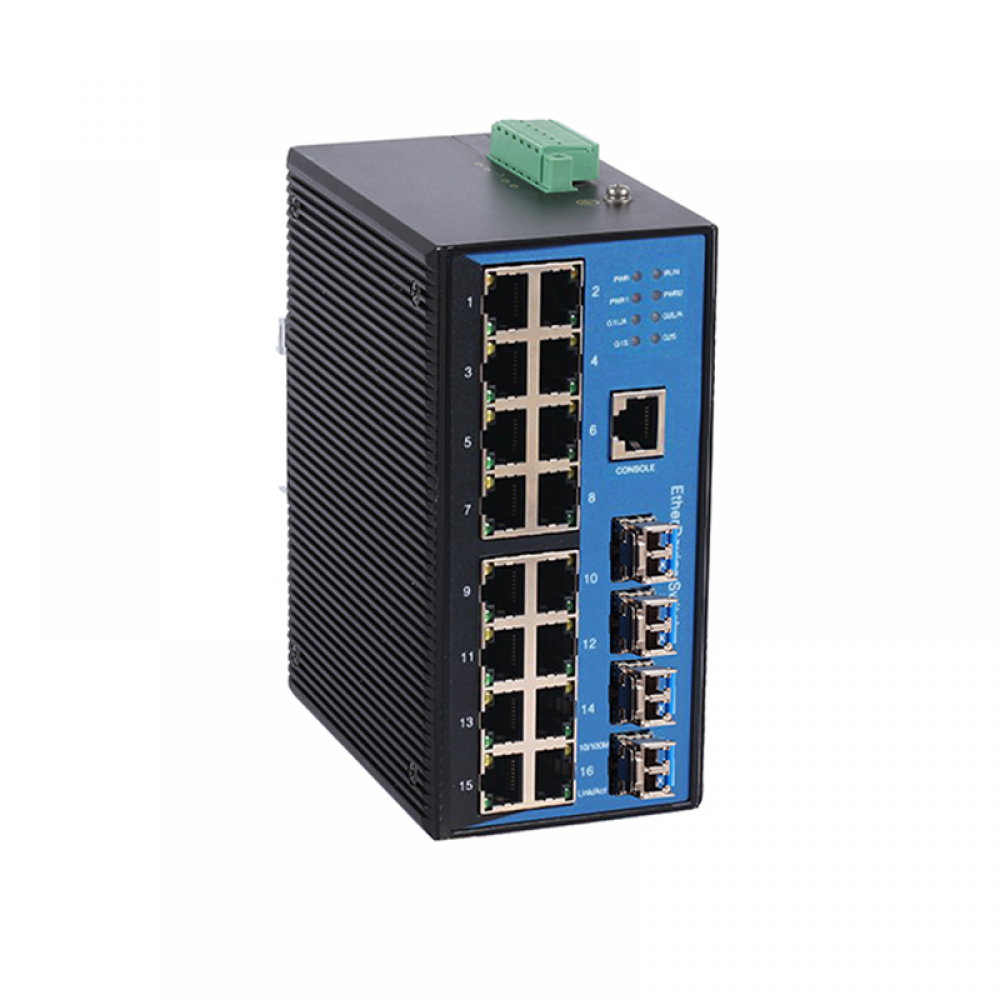

TMIE7220-4GF 10/100M managed din rail industrial Ethernet switch is an industrial Ethernet switch designed and
developed by Trans4data for industrial high-speed communication network applications. It provides a high-end
industrial Ethernet communication solution for flexible industrial applications, making industrial communications smoother,
more reliable and faster, meeting the needs of customers for innovative value-added applications
-
4x1000BaseF(x) port+16x10/100BaseT(x);
-
Supports T-Ring with the recovery time<20ms;
-
Supports broadcast storm suppression/ Rate limit;
-
Support static multicast/IGMP Snooping;
-
Supports VLAN/ Qos/ Port link aggregation /port mirroring ;
-
Supports industrial grade dual power input backup;
-
Supports power-down status relay alarm output;
-
Industrial grade wide temperature/ fanless design;
-
5 years warranty.
|
Software performance
|
|
Redundancy protocol
|
Support T-Ring and the recovery time<20 ms.
Support STP/RSTP
|
|
Multicast routing
|
Support IGMP snooping/ IGMP v1/v2/v3
Support GMRP
Support static multicast
|
|
Management and
maintenance
|
Support Console and Web management methods
Support SNMPv1/v2c
Support unified PC software management
|
|
Technical specifications
|
|
Ethernet Standard
|
IEEE802.3-10BaseT
IEEE802.3u-100BaseTX/100Base-FX
IEEE802.3x-Flow Control
IEEE802.3z-1000BaseLX
IEEE802.3ab-1000BaseTX
IEEE802.1ab
IEEE802.1D-Spanning Tree Protocol
IEEE802.1w-Rapid Spanning Tree Protocol
IEEE802.1Q -VLAN Tagging
IEEE802.1p -Class of Service
IEEE802.1X-Port Based Network Access Control
|
|
Switch properties
|
|
Priority queue
|
4
|
|
VLAN ID
|
1-4096
|
|
IGMP Groups
|
256
|
|
MAC table
|
8k
|
|
Switch Bandwidth
|
12.8Gbps
|
|
Switch Delay
|
<5μs
|
|
Interface
|
|
Gigabit ports
|
Port numbers: 4
|
|
Connector: SFP for fiber port(LC, single or multi-mode)or adaptive
10/100/1000M-Tx module
|
|
Baud rate:1000Base-LX(fiber port), 10/100/1000M for copper port
|
|
10/100Base port
|
Port numbers:16
|
|
Connector:9 fixed FX(single/multi-mode; SC/FC/ST) or RJ45 port
|
|
Baud rate:100Base-FX;adaptive 10/100Base-Tx
|
|
Console port
|
RS232/RJ45
|
|
Terminal block for power input
|
5.08mm terminal block
|
|
Terminal block for relay alarm
|
5.08mm terminal block,1A@24VDC
|
|
Communication distance
|
|
Twisted-pair
|
100m(CAT5/CAT5e cable)
|
|
Multi-mode fiber
|
Gigabit multi-mode: 850nm 550m;
10/100Base multi-mode: 1310nm 2km
|
|
Single mode fiber
|
Gigabit single mode: 1310nm 20km;
10/100Base single mode:1310nm 20/40km;1550nm 60/80km
|
|
LED indicator lights
|
|
Front panel LED
|
Port light: LINK/ACT; SPEED; Gx
|
|
Running light: RUN
|
|
Power LED: PWR1/PWR2
|
|
Power
Requirements
|
|
Power input
|
DC12V/DC24V/DC48V available
|
|
Full-load consumption
|
＜15W
|
|
Overload
protection
|
support
|
|
Inversed
protection
|
support
|
|
Redundancy
protection
|
support
|
|
Working Environment
|
|
Operating
Temperature
|
-40°C~80°C
|
|
Storage temperature
|
-40°C~85°C
|
|
Ambient Humidity
|
5%~95%(
non-condensing)
|
|
Physical Characteristics
|
|
Shell
|
IP40
protection, aluminum alloy shell
|
|
Installation
|
35mm
din rail-mounted installation
|
|
Dimension
|
72mmx140mmx110mm
|
|
Industry standard
|
|
EMC
|
EN61000-4-2(ESD), Level 4
EN61000-4-3(RS), Level 4
EN61000-4-4(EFT), Level 4
EN61000-4-5(Surge), Level 4
EN61000-4-6(CS), Level 4
EN61000-4-8,
Level 5
|
|
Impact
|
IEC60068–2-27
|
|
Falling
|
IEC60068-2-32
|
|
Shock
|
IEC60068-2-6
|
|
Warranty
|
|
Warranty
period
|
5
Years
|
|
Certification
|
CE,
FCC, RoHS
|
|
TMIE7220-4GF-DC12
|
4 Gigabit Fx ports +16 *10/100M Tx
ports, dual DC12V(9~18V)
isolate power supply
|
|
TMIE7220-4GF-DC24
|
4 Gigabit Fx ports +16 *10/100M Tx ports, dual DC24V(18~36V)
isolate power supply
|
|
TMIE7220-4GF-DC48
|
4 Gigabit Fx ports +16 *10/100M Tx ports, dual DC48V(36~72V)
isolate power supply
|
|
TMIE7220-4GF-AD220
|
4 Gigabit Fx ports +16* 10/100M Tx ports, single
AC85-264V/DC110-370V
|
