20 Ports full gigabit layer 2 managed Din-rail industrial Ethernet switch

TMIE7120-4GF series layer 2 full Gigabit industrial Ethernet switch is a high-performance Ethernet communication product
developed for industrial communication. The product uses high-performance industrial-grade switch chip,
supports 4 Gigabit SFP + 16 Gigabit RJ45 ports with AC220V/DC110V industrial power input,
which can improve the stability of network communication and save wiring.

The TMIE7120-4GF series products can meet the high-end requirements of the smart grid especially in the
industrial application environment and the communication performance of the equipment

4x1000BaseF(x) port+16x10/100/1000BaseT(x);
Supports T-Ring with the recovery time<20ms;
Supports broadcast storm suppression/ Rate limit;
Support static multicast/IGMP Snooping;
Supports VLAN/ Qos/ Port link aggregation /port mirroring ;
Supports industrial grade dual power input backup;
Supports power-down status relay alarm output;
Industrial grade wide temperature/ fanless design;
5 years warranty.

Software function
Switch Properties	Supports Rate limit, Trunking, flow control, VLAN Support IEEE 802.1Q VLAN Support broadcast storm suppression
Redundancy Protocols	Support T-Ring patent redundancy technique (failure recovery time <20ms) Support STP/RSTP
Multicast	Support v1/v2/v3, IGMP Snooping Support GMRP and static multicast filtering
Security	Support IEEE 802.1x, HTTP, RADIUS, user grading and MAC address binding
Service quality management	Supports SP and WRR queuing. Support QoS setting
IP address management	Support DHCP server
Management and maintenance	Supports CLI, Web management methods, LLDP and SNTPv4 Support SNMPv1/v2c, ACL Support software updating Supports the IP/MAC address conflict alarm Support power off, power alarm, port alarm Support port mirroring; Support log viewing Support Link-check and NTP Support accept and transfer frame statistics
Technical Parameters
Protocol Standard	IEEE802.3, IEEE802.3u (100Base-TX&100Base-FX), IEEE802.3x (Flow control), IEEE802.3ab (1000Base-T), IEEE802.3z(1000Base-LX), IEEE802.1D(STP), IEEE802.1w (RSTP), IEEE802.1Q (VLAN), IEEE802.1p (Priority), IEEE802.1 x(Access control)
Switch capability
Priority Queues	4
VLAN Number	4096
multicast group	512
MAC Table Size	16k
Backplane bandwidth	40Gbps
Switch delay	<5μs
Interface
Gigabit ports	Port numbers:20
	Connector: SFP fiber port(LC connector, single-mode/multimode) & Self-adaption 10/100/1000M-TX
	Baud rate:1000Base-LX (optical port), Self-adaption 10/100/1000MBase-TX
Console port	RS232, RJ45
Terminal block for relay alarm	5.08mm terminal block, 1A@24VDC
Terminal block for power input	5.08mm terminal block
Communication distance
Twisted-pair	100m(CAT5/CAT5e cable)
Multi-mode fiber	Gigabit multi-mode: 850nm, 500m
Single-mode fiber	Gigabit single-mode: 1310nm, 20km

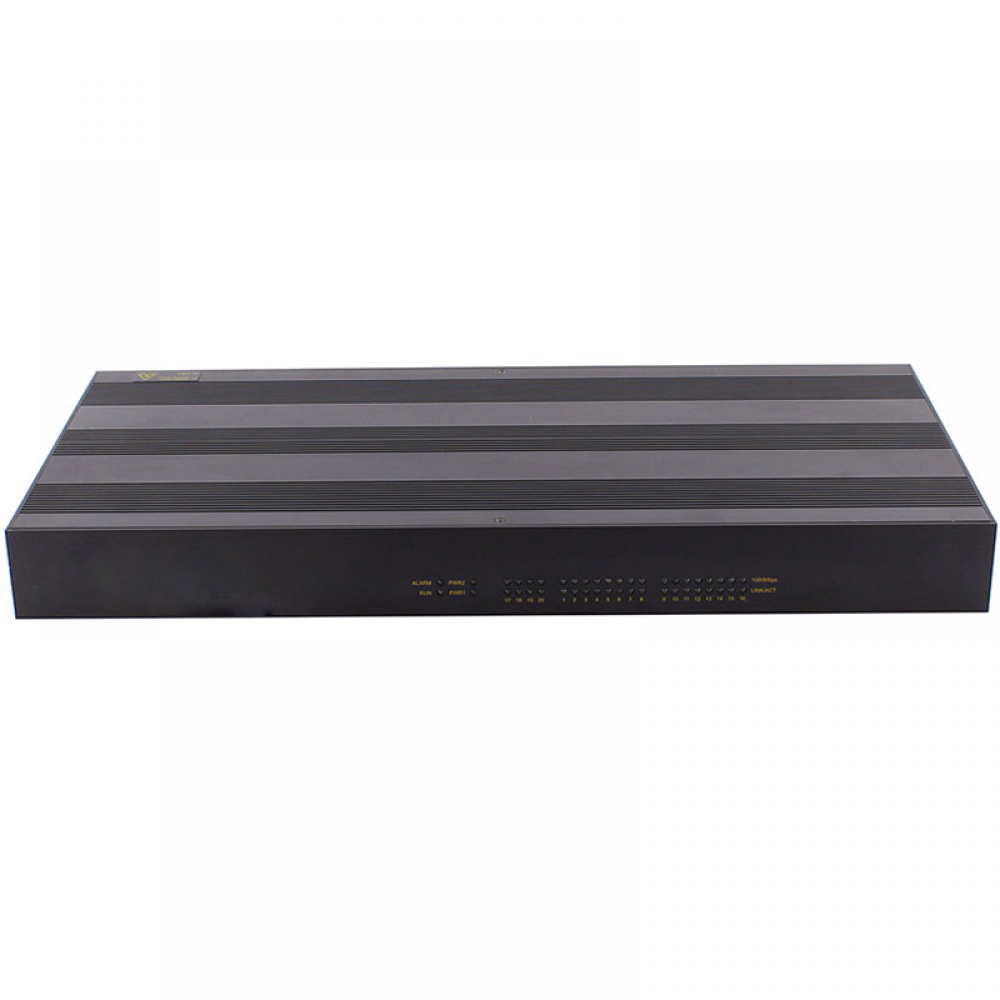

LED indicator lights
Front panel LED lights	Port light: LINK/ACT; SPEED
	System work light: SYS
	Power status light:PWR1;PWR2;PWR
	Alarm light: ALARM

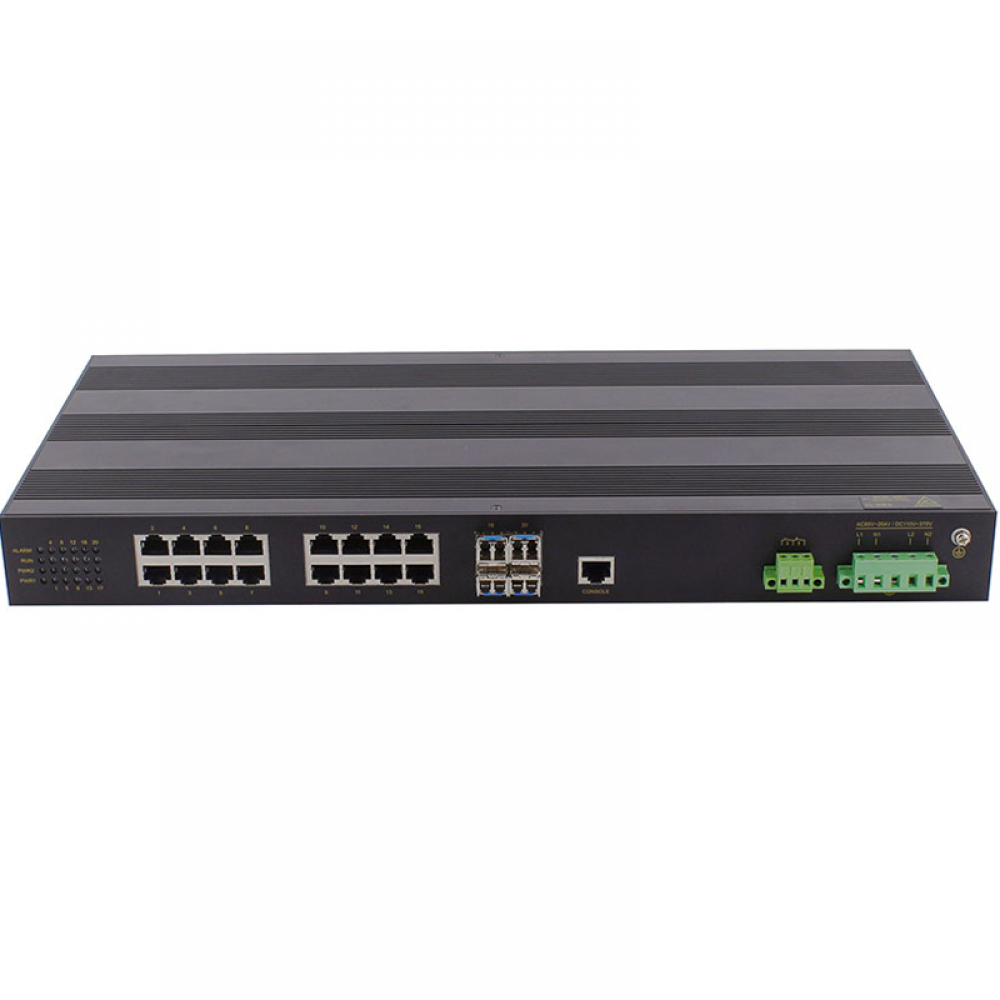

Back panel LED lights	RJ45 Port light: LINK/ACT;SPEED
	Fiber light: LINK/ACT
	Power status light:PWR1;PWR2;PWR
	System work light: SYS
Power
Input power	AC/DC220V(85-264VAC/110-370VDC)
Power consumption	<15W@(MAX)
Overload protection	support
Inversed protection	support
Working Environment
Operating Temperature	-40°C~80°C
Storage temperature	-45°C~85°C
Ambient Humidity	5%~95%
Physical Characteristics
Shell	IP40 protection, aluminum alloy shell
Installation	Standard 19-inch rack mounting, Support front and rear outlet installation
Dimension	482.6mm×44mm×210mm
Industry standard
EMC	EN61000-4-2(ESD), Level 4 EN61000-4-3(RS), Level 4 EN61000-4-4(EFT), Level 4 EN61000-4-5(Surge), Level 4 EN61000-4-6(CS), Level 4 EN61000-4-8, Level 5
Impact	IEC60068–2-27
Falling	IEC60068-2-32
Shock	IEC60068-2-6
Warranty
Warranty	5 Years
Certification	CE, FCC, RoHS

TMIE7120-4GF-AD220

4 Gigabit Fx ports +16 Gigabit Tx ports, single AC85-264V/ DC110~370V isolate power supply

20 Ports full gigabit layer 2 managed rack-mount industrial Ethernet switch
