TIE6220-4F series switches can be used for simple application in plug-and-play mode to meet the needs of users.
All electrical ports support auto-negotiation, 10/100Mbps full-duplex and half-duplex, flow control, Auto-MDI/MDI-X and more.
It provides redundant power supply support as well as wide range of DC and AC power inputs.
In terms of structural installation, the switch is a compact switch that takes up less space and is installed using a rail
-

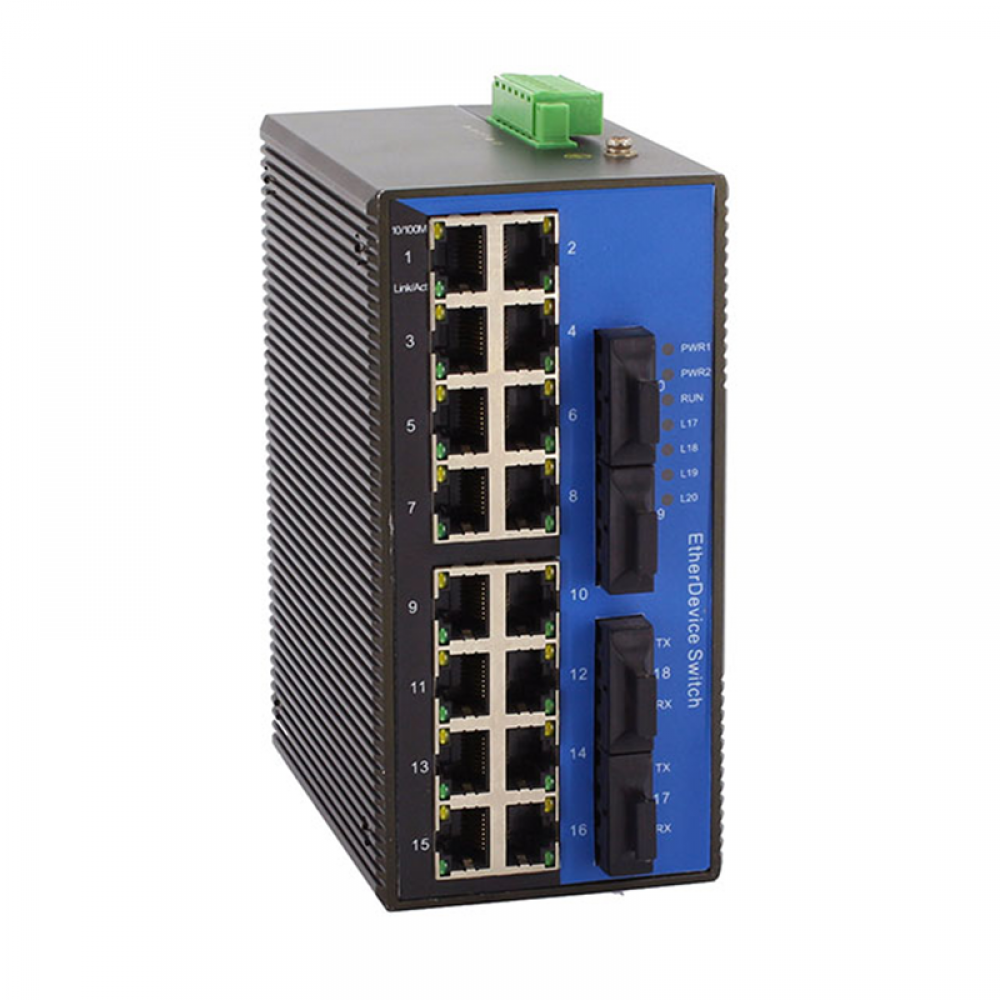

Supports 4x100M FX ports+16x10/100M RJ45 ports
-
Starts working once connected, quick and convenient
-
Supports status display indicator lights
-
Supports industry power supply
-
Supports power-down status reply alarm output
-
Wide temperature range design, fan-less thermal design
-
Industrial level 4 protection, satisfy harsh industrial environment
-
5 years warranty
|
Technical
parameters
|
|
Protocol
Standard
|
IEEE802.3(Ethernet)、IEEE802.3u (100Base-TX& 100Base-FX)
|
|
Switch
capability
|
|
MAC
Table Size
|
8k
|
|
Backplane bandwidth
|
4.8Gbps
|
|
Switch
Delay
|
<5μs
|
|
Interface
|
100M port
|
Number:20
|
Connector:1×9 fixed optical port(single/multi-mode optional, SC/FC/ST interface) or RJ45 100M TX port
|
Baud rate:100Base-FX(Optical port),Self-adaption 10/100Mbase-TX
|
Terminal block for relay alarm
|
5.08mm terminal block ,1A@24VDC
|

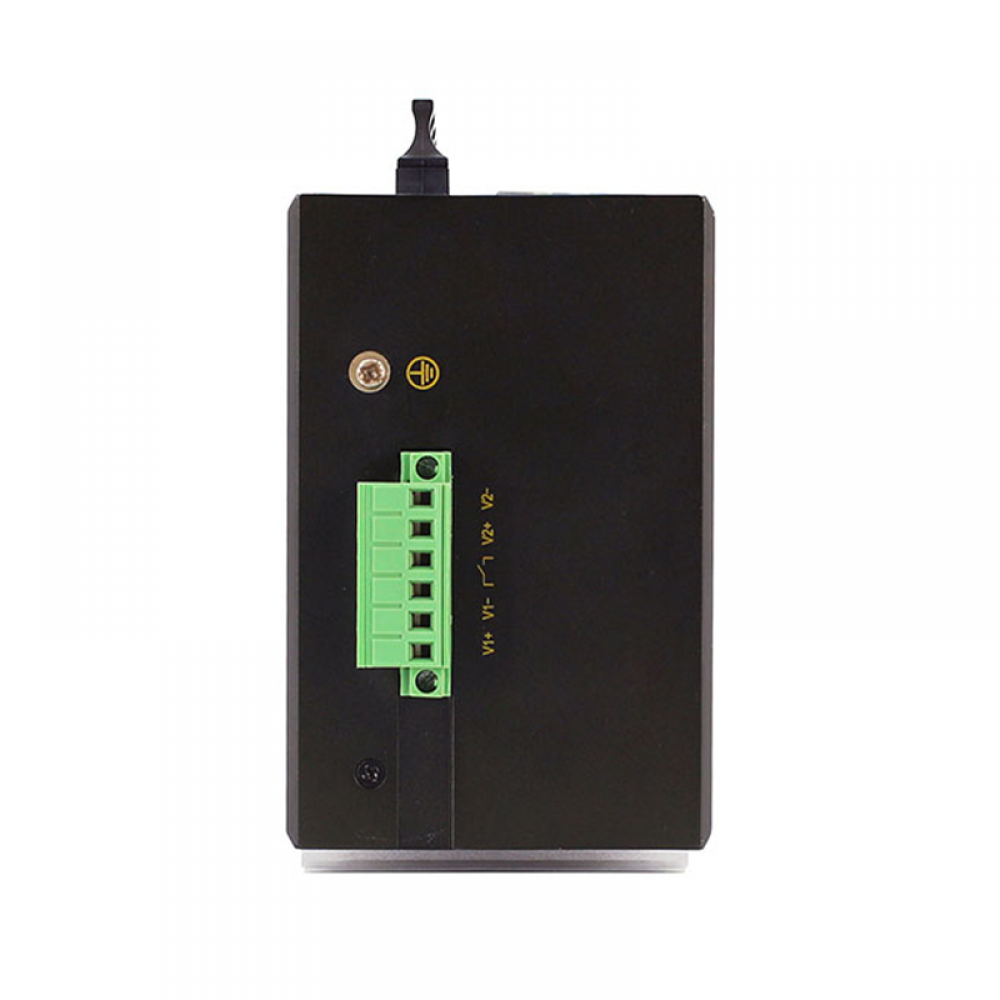

Terminal block for power input
|
5.08mm terminal block
|
|
Communication distance
|
Twisted-pair
|
100m(CAT5/CAT5e cable)
|
Multimode fiber
|
100M multimode: 1310nm, 2km
|
Single mode fiber
|
100M single mode: 1310nm, 20/40km; 1550nm, 60/80km
|
|
LED indicator
lights
|
|

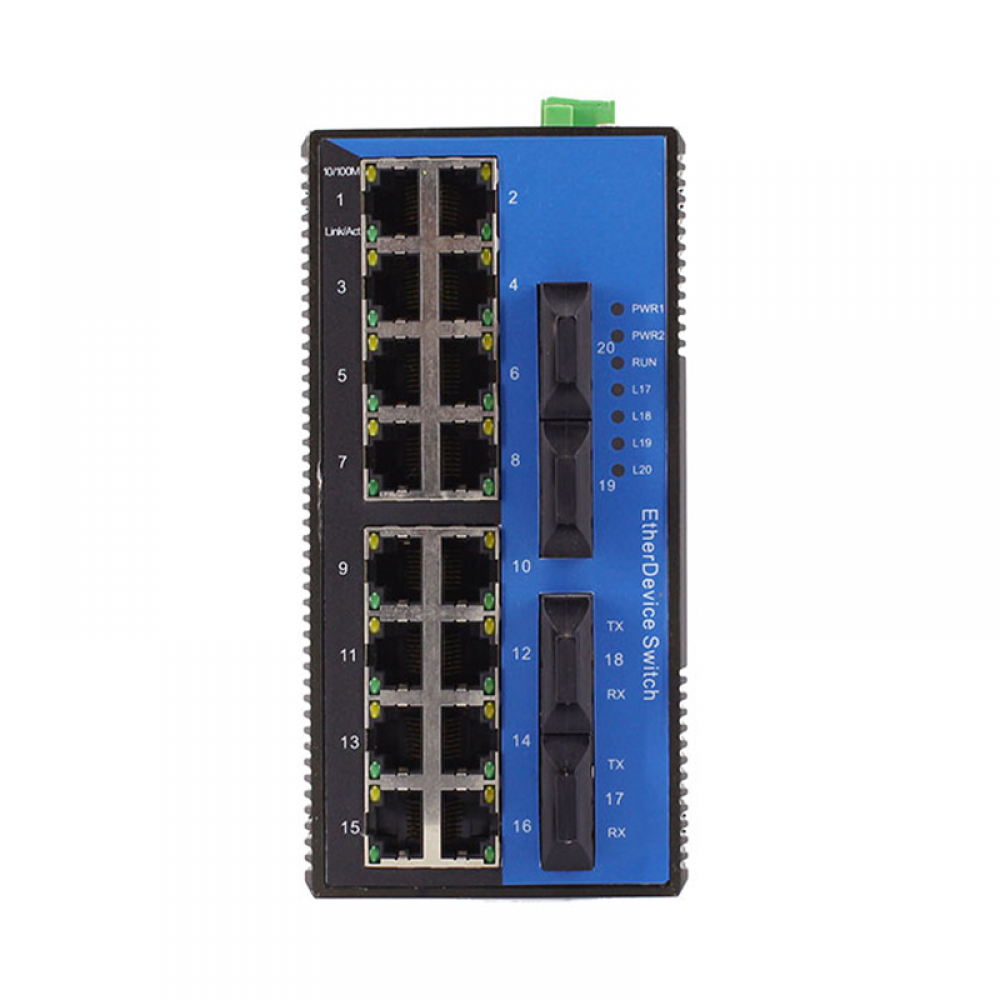

Front panel LED lights
|
Port light: LINK/ACT; SPEED
|
|
System work light: RUN
|
|
Power status light: PWR1; PWR2
|
|
Power
|
|
Input power
|
DC110~220V
(Wide voltage: DC110~370V) or AC100~240V (Wide voltage: AC85~264V)
Support: DC12~48V, DC48V
|
|
Power consumption
|
<6W@(MAX)
|
|
Overload protection
|
support
|
|
Inversed protection
|
support
|
|
Redundancy protection
|
support
|
|
Working Environment
|
|
Operating Temperature
|
-40°C~80°C
|
|
Storage temperature
|
-40°C~85°C
|
|
Ambient Humidity
|
5%~95%
|
|
Physical Characteristics
|
|
Shell
|
IP40 protection, aluminum alloy shell
|
|
Installation
|
Standard 35mm DIN-rail Mounting
|
|
Dimension
|
72.0mm*144.0mm*110.0mm
|
|
Industry standard
|
|
EMC
|
EN61000-4-2(ESD), Level 4
EN61000-4-3(RS0, Level 4
EN61000-4-4(EFT), Level 4
EN61000-4-5(Surge), Level 4
EN61000-4-6(CS), Level 4
EN61000-4-8, Level 5
|
|
Impact
|
IEC60068–2-27
|
|
Falling
|
IEC60068-2-32
|
|
Shock
|
IEC60068-2-6
|
|
Warranty
|
|
Warranty
|
5 Years
|
|
Certification
|
CE, FCC, RoHS
|
|
TIE6220-4F-DC12
|
4 *10/100M Fx ports +16 10/100M
Tx ports, dual DC12V(9~18V) isolate power supply
|
|
TIE6220-4F-DC24
|
4 *10/100M Fx ports +16 10/100M Tx
ports, dual DC24V(18~36V) isolate power supply
|
|
TIE6220-4F-DC48
|
4 *10/100M Fx ports +16 10/100M Tx
ports, dual DC48V（36~72V） isolate power supply
|
|
TIE6220-4F-AD220
|
4 *10/100M Fx ports
+16 10/100M Tx ports, single AC85-264V/DC110~370V isolate power supply
|
