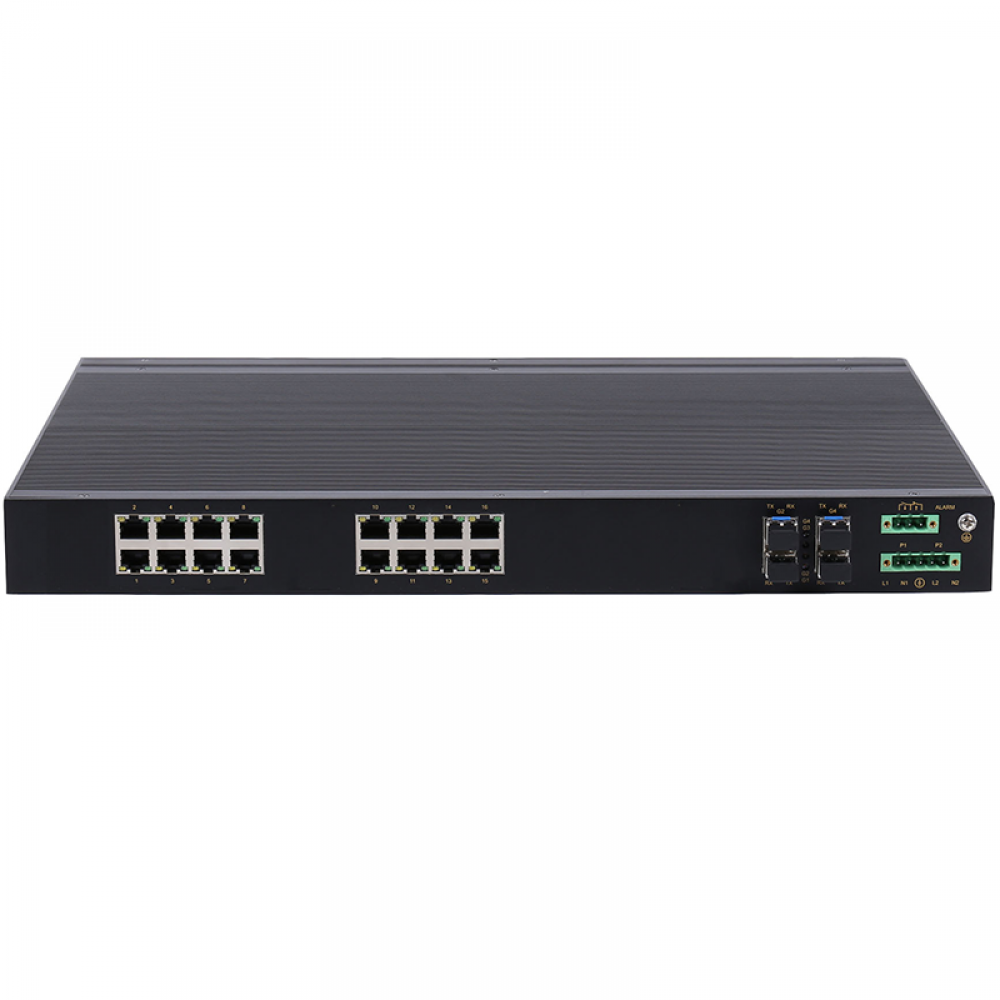

TIE7120-4GF full Gigabit rack-mount Ethernet switch，4 Gigabit SFP ports +16 Gigabit RJ45 ports，
is designed for high-speed communication network applications.
It provides a high-performance Ethernet communication solution for flexible and changeable application requirements,
breaking through the 10/100M backbone network communication bottleneck, making communication smoother,
reliable and faster which meets the customers’requirements of innovation to increase value-added.
-
Supports 4 Gigabit SFP ports+16 Gigabit RJ45 ports
-
Supports front and back sides indicator lights, fiber indicator lights with status display
-
Starts work once connected, quick and convenient
-
Supports isolated power supply, optional dual redundant power supply
-
Supports power-down status reply alarm output.
-
Wide temperature range design, fan-less thermal design
-
Satisfy harsh industrial environment
-
5 years warranty
|
Technical
parameters
|
|
Protocol
Standard
|
IEEE802.3(Ethernet), IEEE802.3u
(100Base-TX&100Base-FX), IEEE802.3x (Flow control), IEEE802.3ab(1000Base-T), IEEE802.3z(1000Base-LX), 802.1az, 802.1ab;
|
|
Switch
capability
|
|
MAC
Table Size
|
16k
|
|
Backplane bandwidth
|
40Gbps
|
|
Switch
Delay
|
<5μs
|
|
Interface
|
|
Gigabit
port
|
Port numbers: 20
|
Connector: 4 Gigabit SFP ports+16 Gigabit RJ45 ports
|
Baud rate: 1000Base-LX(Optical port), Self-adaption 10/100/1000MBase-TX
|
|
Terminal
block for power input
|
5.08mm terminal block
|
|
Terminal
block for relay alarm
|
5.08mm
terminal block ,1A@24VDC
|
|
Communication distance
|
|
Twisted-pair
|
100m(CAT5/CAT5e cable)
|
|
Multi-mode
fiber
|
Gigabit
multi-mode: 850nm, 500m
|
|
Single-mode
fiber
|
Gigabit
single-mode: 1310nm, 20km
|
|
LED indicator
lights
|
|
Front
panel LED lights
|
Port light: LINK/ACT; SPEED
|
|
System work light: SYSTEM
|
|
Power
status light: POWER
|
|
Power
|
|
Input power
|
AC/DC220V(85-264VAC/110-370VDC)
|
|
Power consumption
|
<15W@(MAX)
|
|
Overload protection
|
support
|
|
Inversed protection
|
support
|
|
Redundancy protection
|
Support
|
|
Working Environment
|
|
Operating Temperature
|
-40°C~80°C
|
|
Storage temperature
|
-40°C~85°C
|
|
Ambient Humidity
|
5%~95%
|
|
Physical Characteristics
|
|
Shell
|
IP40 protection, aluminum alloy shell
|
|
Installation
|
Standard 19-inch rack mounting,
|
|
Dimension
|
482.6mm×44mm×315mm (W×H×D)
|
|
Industry standard
|
|
EMC
|
EN61000-4-2(ESD), Level 4
EN61000-4-3(RS), Level 4
EN61000-4-4(EFT), Level 4
EN61000-4-5(Surge), Level 4
EN61000-4-6(CS), Level 4
EN61000-4-8, Level 5
|
|
Impact
|
IEC60068–2-27
|
|
Falling
|
IEC60068-2-32
|
|
Shock
|
IEC60068-2-6
|
|
Warranty
|
|
Warranty
|
5 Years
|
|
Certification
|
CE, FCC, RoHS
|
|
TIE7120-4GF-AD220
|
4 Gigabit Fx ports +16 Gigabit Tx ports, layer 2
full Gigabit ports rack mounted industrial Ethernet switch, single AC85-264V/DC110~370V isolate power supply
|
