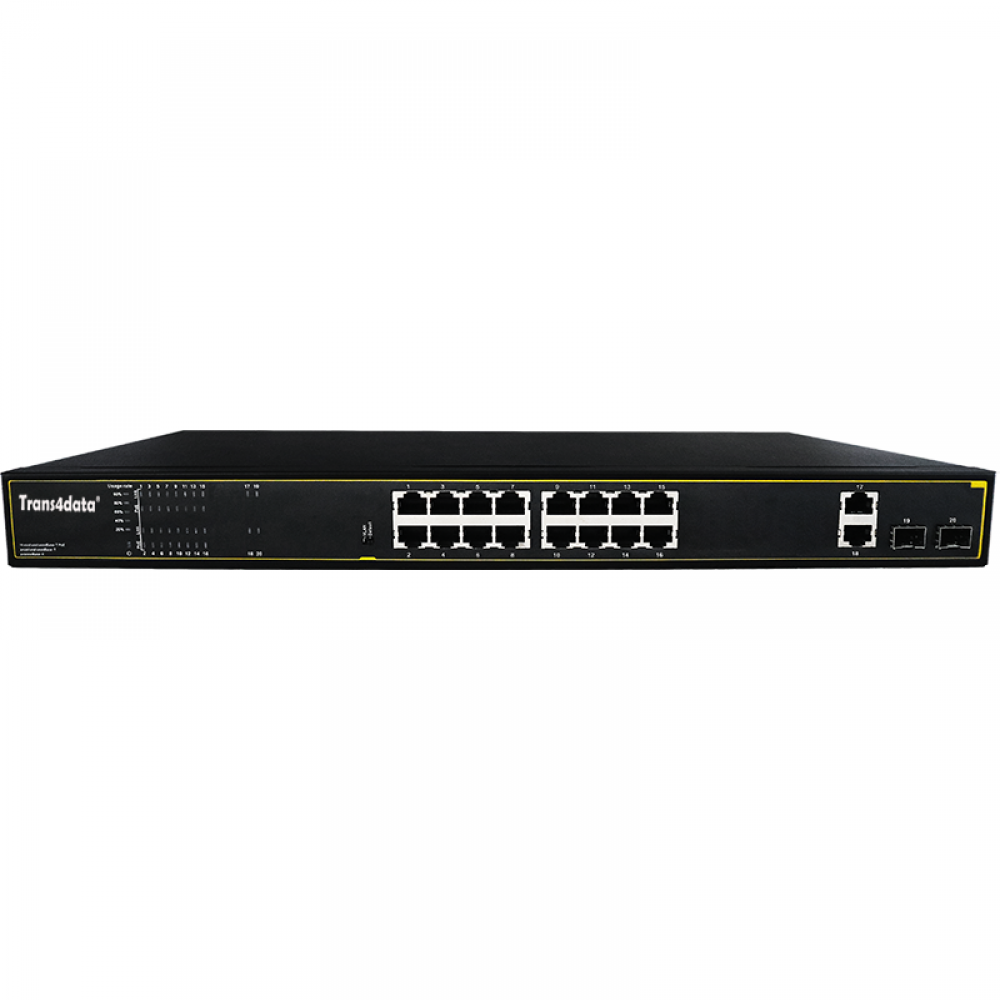

TCE3120P-2GE-2GF is 20-port PoE unmanaged switch series that supports up to 16*10/100/1000M PoE ports,
2*10/100/1000M uplink ports and 2*1000M SFP uplink ports. 16*10/100/1000M ports support PoE+, conforming to
IEEE 802.3af/at standard, single port PoE power up to 30W.
It provides 2 modes of Default and VLAN to adapt to various complex environments.
It provides PoE usage indication function, convenient to display PoE power consumption
It has a high anti-interference ability, the product supports 6KV surge protection, and 6KV contact / 8KV
air ESD protection. It supports wall hanging and desktop installation, reliable and durable, and can be used
in security network video monitoring, network engineering and other occasions
-
16*10/100/1000M PoE ports, 2*10/100/1000M ports and 2*1000M SFP ports;
-
The maximum PoE power of single port is 30W;
-
It provides two modes of Default and VLAN to adapt to various complex environments;
-
Supports PoE power usage indication, convenient to display PoE power consumption;
-
Supports 6KV lightning protection, 6KV contact / 8KV air ESD protection.
-
Supports wall hanging and desktop placement.
|
Parameter
|
Specifications
|
|
Power supply
|
Mains power supply，AC100~240V，50/60Hz
|
|
Power consumption
|
Self-consumption<10W
|
|
Downlink ports
|
Ports1~16: 10/100/1000Base-T 30W PoE RJ45(IEEE802.3af/at
PSE)
|
|
Uplink ports
|
17~18 ports: 10/100/1000 Base-T; 19~20 ports: 1000Base-X SFP slots
|
|
Working mode
|
Default mode: normal switch mode.
VLAN mode: ports1~16 are isolated from each other and can only
communicate with the
uplink port; restrain the network storm; turn off
the flow control.
|
|
1~16 PoE ports
|
IEEE802.3af/at，end-span, single
port≤30W
|
|
Cable and distance
|
Use cat5e/6 100m max.(Extend mode max.250m)
|
|
Standard
|
IEEE802.3,
IEEE802.3u, IEEE802.3z
|
|
Switch fabric
|
40 Gbps
|
|
Though put
|
29.8 Mpps
|
|
Buffer
|
4M
|
|
MAC address table
|
8K
|
|
Indicator
|
Power: 1 *red ;
Uplink 17~20：RJ45green LED indicate Link/Act
Downlink 1~16：RJ45 green LED indicate Link/Act，yellow LED indicate PoE
|
|
Protection
|
Surge: 6KV, standard: IEC61000-4-5 ESD：6KV contact 8KV: air, standardIEC61000-4-2
|
|
Working
temperature
|
-10℃~50℃
|
|
Storage
temperature
|
-40℃~85℃
|
|
Humidity
|
0~95%（No condensation）
|
|
Dimension(L×W×H)
|
442 mm×285 mm×44mm
|
|
Material
|
Metal
|
|
Colour
|
Black
|
|
Net-weight
|
4kg
|
|
Model
|
Description
|
|
TCE3120P-2GE-2GF-300W
|
Input DC48-57V；
16*10/100/1000M PoE ports, 2*10/100/1000M ports, 2*1000M SFP ports;
16 1000M ports support PoE+ and IEEE 802.3af/at standard;
Supports two working modes are provided: standard and VLAN mode;
Supports 6KV surge protection, 6KV/8KV anti-static, can
be used in a variety of harsh environment;
300W built-in power supply, 270W PoE output.
|
