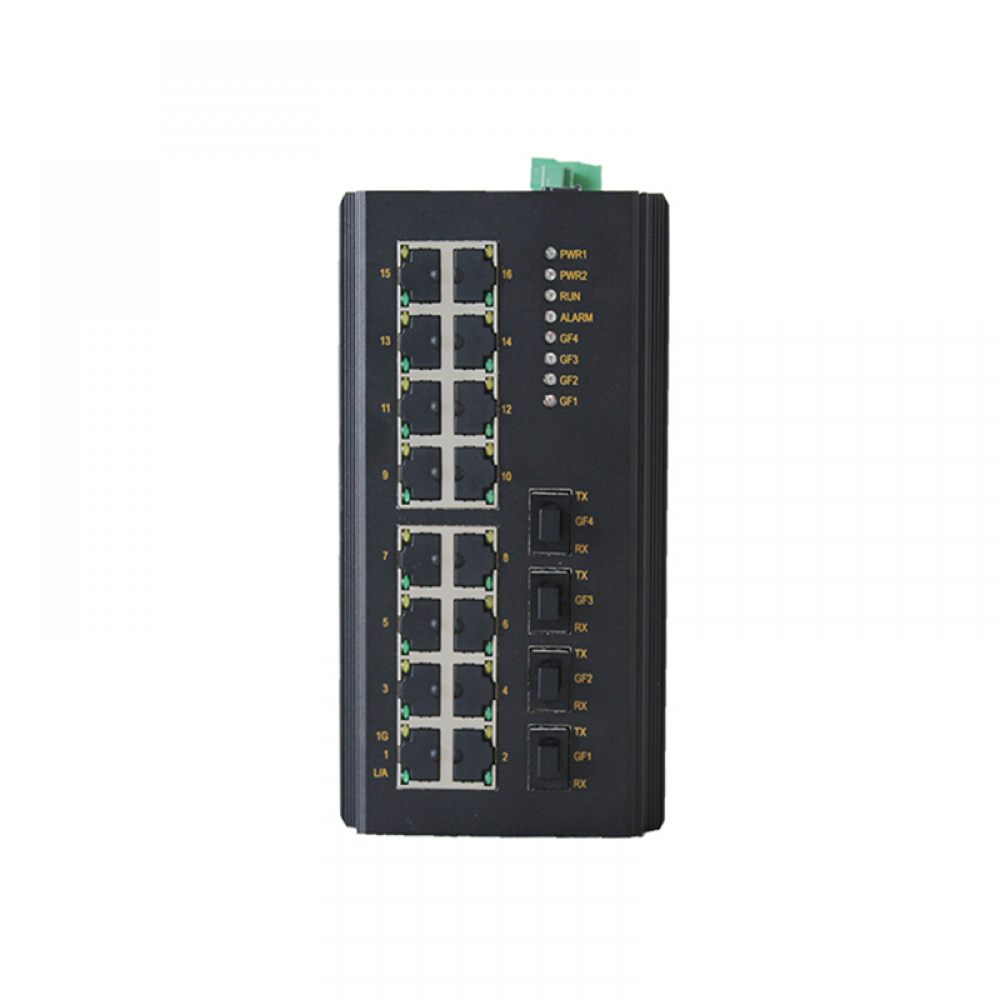

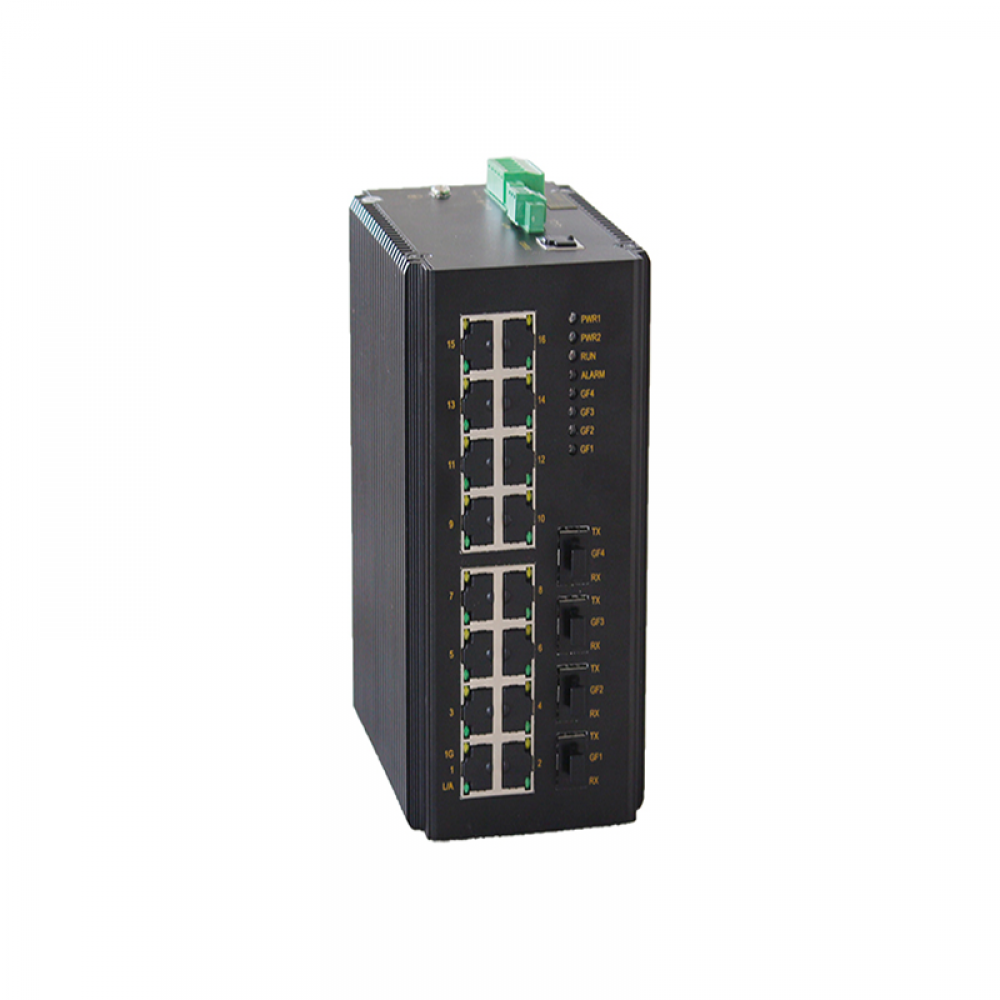

TMIE8220-4GF-L3 layer 3 full Gigabit industrial Ethernet switch is a high-performance Ethernet communication product
developed by Trans4data for industrial communication. TMIE8220-4GF-L3 supports 4 Gigabit fiber ports + 16 Gigabit copper ports.
It is a standard 35mm rail-mounted installation. It supports port, VLAN, multicast, QoS, and fast redundancy ring layer 2 functions,
it also support static and dynamic routing, multicast routing, support Console, Web management methods and
PC network management software, providing high-performance and highly reliable solutions for industrial communications
-
4 Gigabit fiber ports + 16 Gigabit copper ports
-
Supports RIP/OSPF/PIM Layer 3 Routing Protocol
-
Supports T-Ring/MSTP/VRRP/EAPS for network redundancy
-
Supports multiple management methods and network centralized management
-
Single rib type fanless design
-
Support
industrial grade dual power input backup
-
EN61000 Level 4 protection
-
IEC61850-3 certified，State Grid Class A standard
-
5 years warranty
|
Software performance
|
|
Switch
Function
|
Support VLAN
Support GVRP
Support port aggregation
Support flow control
Support Rate limit
Support broadcast storm suppression.
|
|
Redundancy protocol
|
Support VRRP/EAPS
Support T-Ring and the recovery time<20ms
Support RSTP/MSTP and compatible with STP
|
|
Multicast routing
|
Support IGMP snooping/ IGMP v1/v2/v3
Support GMRP
Support static multicast
Support PIM-SM/PIM-DM/PIM-DMv6
|
|
Unicast Routing
|
Support RIPv1/v2/RIPng/OSPFv1/v2
Support Static Routing
Support PIM-SM/PIM-DM
|
|
Service quality
management
|
Support ACL and L2-L4 data Filter
Support SP/ WRR queuing
|
|
IP management
|
Support DHCP server/relay/client
|
|
Management and
maintenance
|
Support Console/Telnet/and Web management methods/RMON
Support SNMPv1/v2c
Support FTP/TFTP file transfer and software update
Support power failure alarm/power alarm/ port link down
alarm/ring alarm
Support port mirroring/Syslog/ LLDP/ RTC/SNTPv4
|
|
Technical specifications
|
|
Ethernet Standard
|
IEEE802.3-10BaseT
IEEE802.3u-100BaseTX/100Base-FX
IEEE802.3x-Flow Control
IEEE802.3z-1000BaseLX
IEEE802.3ab-1000BaseTX
IEEE802.1ab
IEEE802.1D-Spanning Tree Protocol
IEEE802.1w-Rapid Spanning Tree Protoco
IEEE802.1Q-VLAN Tagging
IEEE802.1s Multiple Spanning Tree Protocol
IEEE802.1p-Class of Service
IEEE802.1X-Port Based Network Access Control
GVRP/RIPv1/v2&OSPFv1/v2/v3/VRRP/DHCP/CLI/EAPS/Qos/LACP/LLDP/IGMP/PIM/SNMP/SNTP/SSH
|
|
Switch
properties
|
|
Priority queue
|
8
|
|
VLAN ID
|
1-4096
|
|
IGMP Groups
|
512
|
|
MAC table
|
16k
|
|
Switch Bandwidth
|
40Gbps
|
|
Route Table
|
8k
|
|
Switch Delay
|
<5μs
|
|
Interface
|
|
Gigabit ports
|
Port numbers: 20
|
|
Connector: SFP for fiber port(LC, single or multi-mode),
RJ45 for copper port
|
|
Baud rate: 1000Base-LX(fiber port), 10/100/1000M for
copper port
|
|
Console port
|
RS232/RJ45
|
|
Terminal block for power input
|
5.08mm terminal block
|
|
Terminal block for relay alarm
|
5.08mm terminal block,1A@24VDC
|
|
Communication distance
|
|
Twisted-pair
|
100m(CAT5/CAT5e cable)
|
|
Multi-mode fiber
|
Gigabit multi-mode: 850nm 550m
|
|
Single mode fiber
|
Gigabit single mode: 1310nm 20km
|
|
LED indicator
lights
|
|
Front panel LED
|
Port light: LINK/ACT; SPEED
|
|
Running light: RUN
|
|
Power LED: PWR1/PWR2
|
|
Alarm LED: Alarm
|
|
Power
Requirements
|
|
Power input
|
Standard DC24 dual power supply: DC48V dual power/
AC/DC220V(85-264VAC/110-370VDC) sing power available
|
|
Full-load consumption
|
<15W
|
|
Overload protection
|
support
|
|
Inversed protection
|
support
|
|
Redundancy protection
|
support
|
|
Working Environment
|
|
Operating Temperature
|
-40°C~80°C
|
|
Storage temperature
|
-40°C~85°C
|
|
Ambient Humidity
|
5%~95%( non-condensing)
|
|
Physical Characteristics
|
|
Shell
|
IP40 protection, aluminum alloy shell
|
|
Installation
|
3.5" din rail-mounted installation
|
|
Dimension
|
156mmx137.7mmx85mm
|
|
Industry
standard
|
|
EMC
|
EN61000-4-2(ESD), Level 4
EN61000-4-3(RS), Level 4
EN61000-4-4(EFT), Level 4
EN61000-4-5(Surge), Level 4
EN61000-4-6(CS), Level 4
EN61000-4-8, Level 5
|
|
Impact
|
IEC60068–2-27
|
|
Falling
|
IEC60068-2-32
|
|
Shock
|
IEC60068-2-6
|
|
Warranty
|
|
Warranty period
|
5 Years
|
|
Certification
|
CE, FCC, RoHS
|
|
TMIE8220-4GF-L3-DC24
|
4xGigabit
SFP+16x10/100/1000baseT(x) layer 3 managed din-rail industrial Ethernet
switch, dual DC24V(18~36V) isolated power supply
|
|
TMIE8220-4GF-L3-DC48
|
4xGigabit SFP+16x10/100/1000baseT(x)
layer 3 managed din-rail industrial Ethernet switch, dual DC48V(36V~72V) isolated
power supply
|
|
TMIE8220-4GF-L3-AD220
|
4xGigabit
SFP+16x10/100/1000baseT(x) layer 3 managed din-rail industrial Ethernet
switch, single AC85-264V/DC110~370V isolated power supply
|
