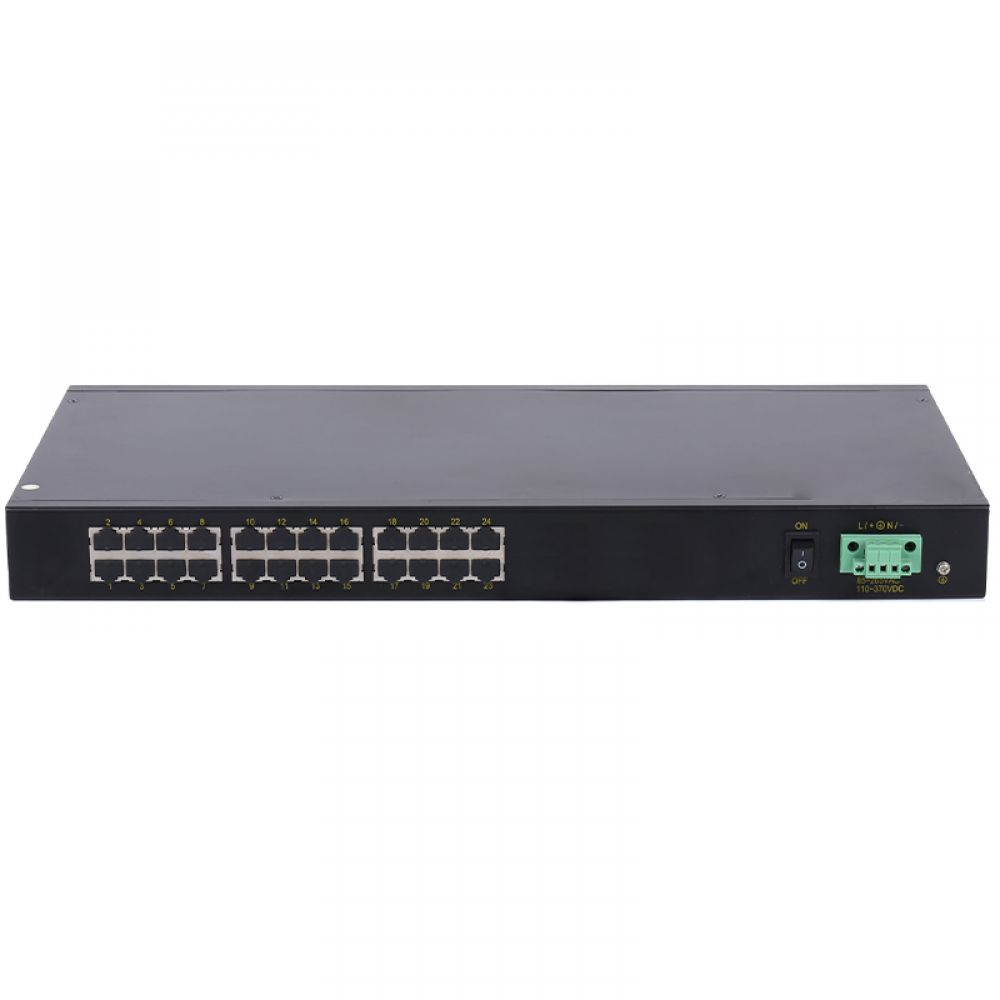

24 ports 10/100MBase rack-mount Layer 2 unmanaged industrial Ethernet switch

24 ports 10/100M rack-mount Layer 2 unmanaged industrial Ethernet switch

Model No.: TIE6124

24x10/100M RJ45 ports;
Supports isolated power supply, optional dual redundant power supply;
Supports power-down status reply alarm output;
Wide temperature range design, fan-less thermal design;
Industrial level 4 protection, satisfy harsh industrial environment;
5 years warranty

OverviewFeaturesSpecificationApplicationOrder Information

TIE6124 series rack-mount layer 2 unmanaged industrial Ethernet switches are Ethernet communication product
developed for industrial communication. It makes industrial communication smoother, reliable and faster
which also meet the customers’ requirements of innovation to increase value-added.

TIE6124 series can work once connected, all RJ45 ports support auto-negotiation and automatic MDI / MDI-X functions

24x10/100M RJ45 ports;
Supports front and back sides indicator lights, fiber indicator lights with status display ;
Starts work once connected, quick and convenient;
Supports isolated power supply, optional dual redundant power supply;
Supports power-down status reply alarm output;
Wide temperature range design, fan-less thermal design;
Satisfy harsh industrial environment;
5 years warranty

Technical parameters
Protocol Standard	IEEE802.3(Ethernet )、IEEE802.3u (100Base-TX&100Base-FX)、IEEE802.3x (Flow control)
Switch capability
MAC Table Size	8k
Backplane bandwidth	4.8Gbps
Switch Delay	<5μs
Interface
100M port	Number: 24
	Connector: RJ45 100M port
	Baud rate: Self-adaption 10/100Mbase-TX
Terminal block for power input	5.08mm terminal block
Communication distance
Twisted-pair	100m(CAT5/CAT5e cable)
LED indicator lights
Front panel LED lights	Port light: LINK/ACT;SPEED
	System work light: RUN
	Power status light: PWR
Power
Input power	AC/DC220V(85-264VAC/110-370VDC)
Power consumption	<25W@(MAX)
Overload protection	support
Inversed protection	support
Working Environment
Operating Temperature	-40°C~80°C
Storage temperature	-45°C~85°C
Ambient Humidity	5%~95%
Physical Characteristics
Shell	IP40 protection, aluminum alloy shell
Installation	Standard 19-inch rack mounting,
Dimension	482.6mm×44mm×210mm (W×H×D)
Industry standard
EMC	EN61000-4-2(ESD), Level 4 EN61000-4-3(RS), Level 4 EN61000-4-4(EFT), Level 4 EN61000-4-5(Surge), Level 4 EN61000-4-6(CS), Level 4 EN61000-4-8, Level 5
Impact	IEC60068–2-27
Falling	IEC60068-2-32
Shock	IEC60068-2-6
Warranty
Warranty	5 Years
Certification	CE, FCC, RoHS

TIE6124-AD220

24 10/100M Tx ports, layer 2 rack mounted industrial Ethernet switch, single AC85-264V/DC110~370V isolate power supply
