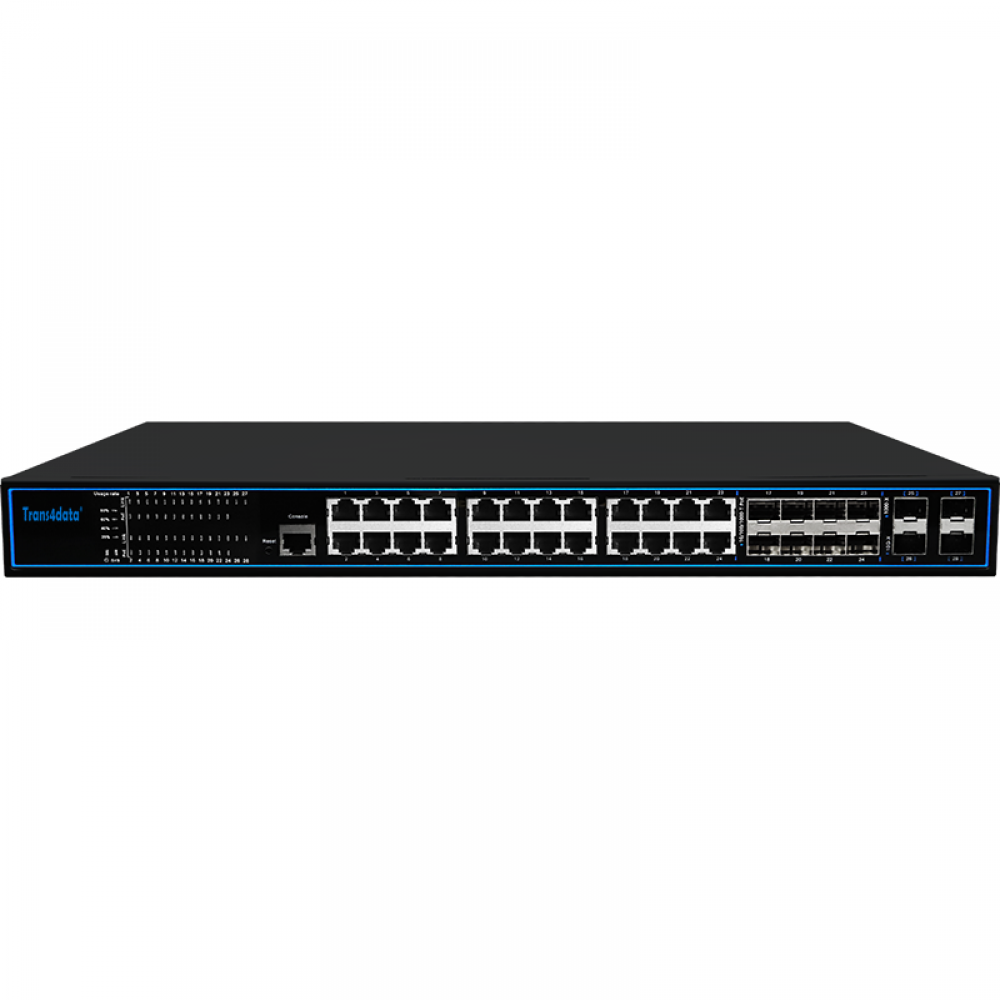

TMCE5128P-8GC-4T-L3 is a 28 port Layer 3 management PoE switch.
It supports up to 24*10/100/1000M downlink PoE ports, 4*10GBase-X SFP+ ports, 8*1000Base-X combo ports.
It supports L3 management, such as OSPF, RIP, QoS, VLAN, MSTP, Multi-brocast, ports management.
It supports wall hanging and desktop installation, reliable and durable, and can be used in security network video
monitoring, network engineering and other occasions
-
24*10/100/1000M PoE downlink ports, 8*1000Base-X combo ports, 4*10G Base-X SFP+ ports;
-
Supports L3 management, such as OSPF, RIP, QoS, VLAN, MSTP, Multi-brocast and ports management and PoE management;
-
6KV surge protection, 6KV contact / 8KV air ESD protection;
-
Supports rack-mount, wall hanging and desktop installation.
Hardware
|
Parameter
|
Specifications
|
|
Power supply
|
AC power supply
|
|
Range of voltage
|
AC100-240V, 50/60Hz
|
|
Consumption
|
Self-consumption<25W
|
|
Downlink ports
|
Ports 1-24: 10/100/1000M-T PoE ports
Ports 17~24: 8*1000Base-X combo
|
|
Uplink ports
|
25~28 ports: 4*10G Base-X SFP+ ports
|
|
Console port
|
RJ45 to serial port (38400,8,N,1)
|
|
Cable and distance
|
Use cat5e/6，100m max
|
|
Standard
|
IEEE802.3u, IEEE802.3z, IEEE802.3ae
|
|
Switch fabric
|
128 Gbps
|
|
Thoughput
|
95 Mpps
|
|
Buffer
|
4M
|
|
MAC address table
|
32K
|
|
Working
temperature
|
-10℃~50℃
|
|
Storage
temperature
|
-40℃~85℃
|
|
Humidity
|
0~95%(No condensation)
|
|
Dimension(L×W×H)
|
442mm×285mm×44mm
|
|
Material
|
Metal
|
|
Colour
|
Black
|
|
Net-weight
|
5.2KG
|
Software
|
L2 Features
|
Port configuration
|
Auto-negotiation
|
|
Flow Control
|
|
Port Mirror
|
|
Traffic statistics
|
|
Link Aggregation
|
Static link aggregation
|
|
LACP
|
|
Algorithm based on Source/Destination MAC
|
|
Algorithm based on Source/Destination IP
|
|
8 groups
|
|
8 ports per group
|
|
MAC Table
|
Aging Time
|
|
Static MAC address
|
|
Dynamic MAC address management
|
|
VLAN
|
4K Active VLANs
|
|
4K VID
|
|
802.1Q Tag VLAN
|
|
Port VLAN
|
|
Protocol VLAN
|
|
MAC VLAN
|
|
Management VLAN
|
|
Voice VLAN
|
|
Q-in-Q
|
|
Private VLAN
|
|
GARP/GVRP
|
|
ACL
|
64 ACLs
|
|
L2, L3 e L4
|
|
Time-based ACL
|
|
Spanning tree
|
802.1D Spanning Tree Protocol (STP)
|
|
802.1w Rapid Spanning Tree Protocol (RSTP)
|
|
802.1s Multiple Spanning Tree Protocol (MSTP)
|
|
Loop Guard
|
|
Root Guard
|
|
TC-BPDU Guard
|
|
BPDU Guard
|
|
BPDU Filter
|
|
Multicast
|
256 groups
|
|
IGMP v1/v2/v3
|
|
Fast Leave
|
|
Multicast VLAN
|
|
Static Multicast
|
|
Multicast Filter
|
|
IGMP Statistics
|
|
MLD Snooping
|
|
QOS
|
4 priority queues
|
|
CoS port-based
|
|
CoS 802.1p-based
|
|
CoS DSCP-based
|
|
Scheduling algorithms SP, WRR, SP+WRR
|
|
Storm Control (Broadcast, Multicast, Unknown Unicast)
|
|
Bandwidth control per port
|
|
Security Features
|
Port Security
|
|
MAC address filter
|
|
ARP Association (Manual, ARP scanning, DHCP snooping) up to 200 entries
|
|
ARP Protection
|
|
DoS (Denial of Service)
|
|
Classification of packages based on: End.MAC, IP End, TCP / UDP Ports,
Protocol Type
|
|
802.1x Authentication (port-based e MAC-based)
|
|
TACACS/TACACS+ Authentication
|
|
RADIUS Authentication
|
|
DHCP Filter
|
|
Guest VLAN
|
|
SSLv2/SSLv3/TLSv1
|
|
SSHv1/SSHv2
|
|
Restriction of WEB access based on: IP Address, And. MAC and Port
|
|
Port Isolation
|
|
Local User Name Password Authentication (2 levels)
|
|
Loopback detection
|
|
Management
|
SNMP v1/v2c/v3
|
|
RMON 4 grupos
|
|
WEB (HTTP/HTTPS)
|
|
CLI (Telnet, Console, SSHv1/v2)
|
|
Firmware upgrade via console/web/TFTP
|
|
Configuration Backup/Reload
|
|
All possible configurations in the CLI must exist in the WEB interface
|
|
LLDP
|
|
Other Features
|
DHCP Relay
|
|
DHCP Client
|
|
DHCP Snooping
|
|
DHCP Option 82
|
|
SNTP Client
|
|
BOOTP Client
|
|
Maintenance
|
Ping and Tracert
|
|
System log (Local and Remote)
|
|
Memory and CPU Monitoring
|
|
L3 Features
|
Static Routing
|
|
OSPFv2
|
|
RIPv1/v2
|
|
DHCP Server
|
|
IPV6
|
IPv6 neighbor discovery (ND)
|
|
Path maximum transmission unit (MTU) discovery
|
|
Internet Control Message Protocol (ICMP) version 6
|
|
TCPv6/UDPv6
|
|
Ping6
|
|
Tracert6
|
|
Telnet(v6)
|
|
Http/Https
|
|
IPv6 TFTP
|
|
Static Routing
|
|
Interface IPV6
|
|
Model
|
Description
|
|
TMCE5128P-8GC-4T-L3
|
24*10/100/1000M-T PoE RJ45 ports, 8*1000Base-X combo ports, 4*10G-X SFP+
ports;
L3 management; AC100~240V 50/60Hz; 19’’ rack mount
|
