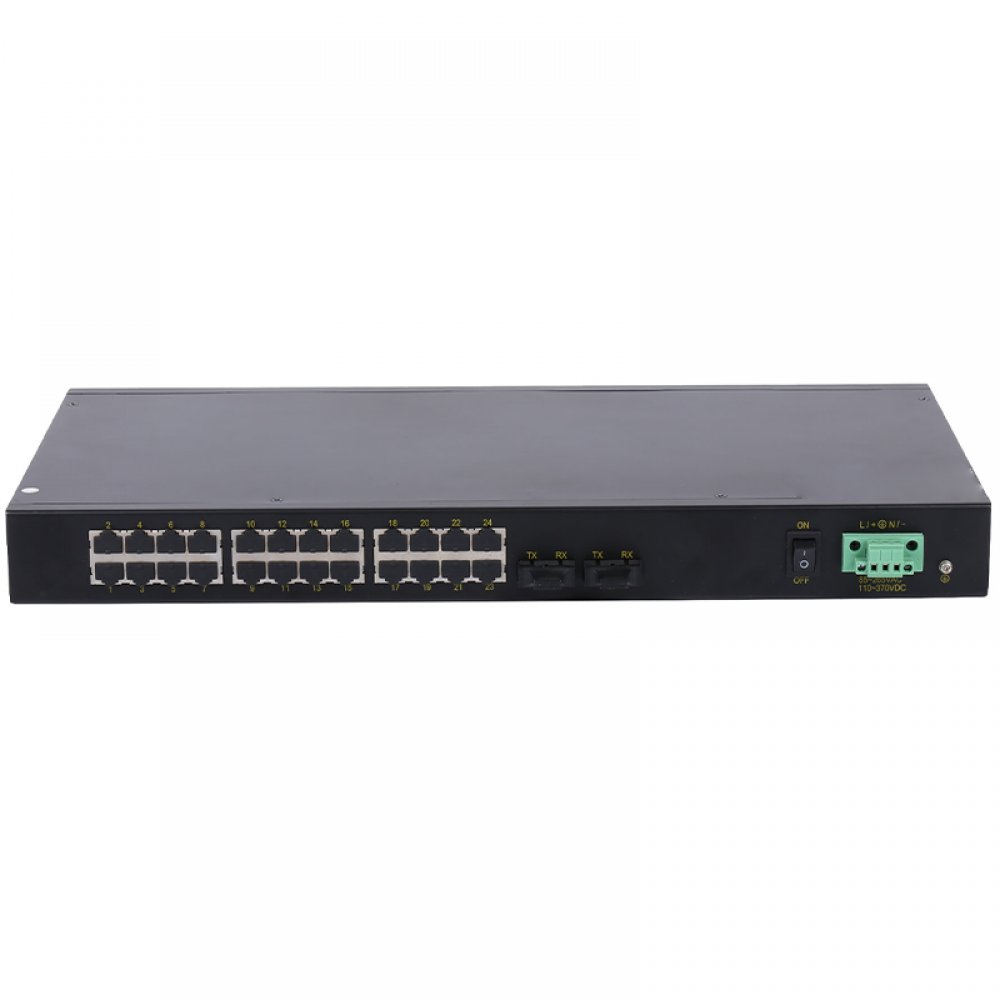

The TIE6126-2F series layer 2 unmanaged industrial Ethernet switch are Ethernet communication product
developed for industrial communication. The product uses high-performance industrial-grade switch chip.
It supports 2x100M FX ports+24x10/100M RJ45 ports , with AC220V/DC110V power input
-
2x100M FX ports+24x10/100M RJ45 ports;
-
Supports front and back sides indicator lights, fiber indicator lights with status display ;
-
Starts work once connected, quick and convenient;
-
Supports isolated power supply, optional dual redundant power supply;
-
Supports power-down status reply alarm output;
-
Wide temperature range design, fan-less thermal design;
-
Satisfy harsh industrial environment;
-
5 years warranty
|
Technical
parameters
|
|
Protocol
Standard
|
IEEE802.3(Ethernet), IEEE802.3u (100Base-TX&100Base-FX), IEEE802.3x (Flow
control)
|
|
Switch
capability
|
|
MAC
Table Size
|
8k
|
|
Backplane bandwidth
|
5.6Gbps
|
|
Switch
Delay
|
<5μs
|
|
Interface
|
|
100M port
|
Number: 26
|
|
Connector: 1×9 fixed optical port(single/multi-mode
optional, SC/FC/ST interface) or RJ45 100M TX port
|
Baud rate: 100Base-FX(Optical port), Self-adaption 10/100Mbase-TX
|
|
Terminal
block for power input
|
7.62mm
terminal block
|
|
Terminal
block for relay alarm
|
5.08mm
terminal block, 1A@24VDC
|
|
Communication distance
|
|
Twisted-pair
|
100m(CAT5/CAT5e cable)
|
|
Multi-mode
fiber
|
100M
multi-mode: 1310nm, 2km
|
|
Single-mode
fiber
|
100M single-mode:
1310nm, 20/40km; 100M single-mode: 1550nm, 60/80km
|
|
LED indicator
lights
|
|
Front
panel LED lights
|
Port light: LINK/ACT;SPEED
|
|
System work light: RUN
|
|
Power
status light: PWR1; PWR2;
|
|
Alarm light: ALARM
|
|
Back
panel LED lights
|
RJ45 Port indicator light: LINK/ACT; SPEED
|
|
Fiber indicator
light: LINK/ACT
|
|
Power
|
|
Input power
|
AC/DC220V(85-264VAC/110-370VDC)
|
|
Power consumption
|
<25W@(MAX)
|
|
Overload protection
|
support
|
|
Inversed protection
|
support
|
|
Redundancy protection
|
Support
|
|
Working Environment
|
|
Operating Temperature
|
-40°C~80°C
|
|
Storage temperature
|
-40°C~85°C
|
|
Ambient Humidity
|
5%~95%
|
|
Physical Characteristics
|
|
Shell
|
IP40 protection, aluminum alloy shell
|
|
Installation
|
Standard 19-inch rack mounting,
Support front and rear outlet
installation
|
|
Dimension
|
482.6mm×44mm×210mm (W×H×D)
|
|
Industry standard
|
|
EMC
|
EN61000-4-2(ESD), Level 4
EN61000-4-3(RS), Level 4
EN61000-4-4(EFT), Level 4
EN61000-4-5(Surge), Level 4
EN61000-4-6(CS), Level 4
EN61000-4-8, Level 5
|
|
Impact
|
IEC60068–2-27
|
|
Falling
|
IEC60068-2-32
|
|
Shock
|
IEC60068-2-6
|
|
Warranty
|
|
Warranty
|
5 Years
|
|
Certification
|
CE, FCC, RoHS
|
|
TIE6126-2F-AD220
|
2 10/100M Fx ports +24 10/100M Tx
ports, layer 2 rack mounted industrial Ethernet switch, single AC85-264V/DC110~370V
isolate power supply
|
