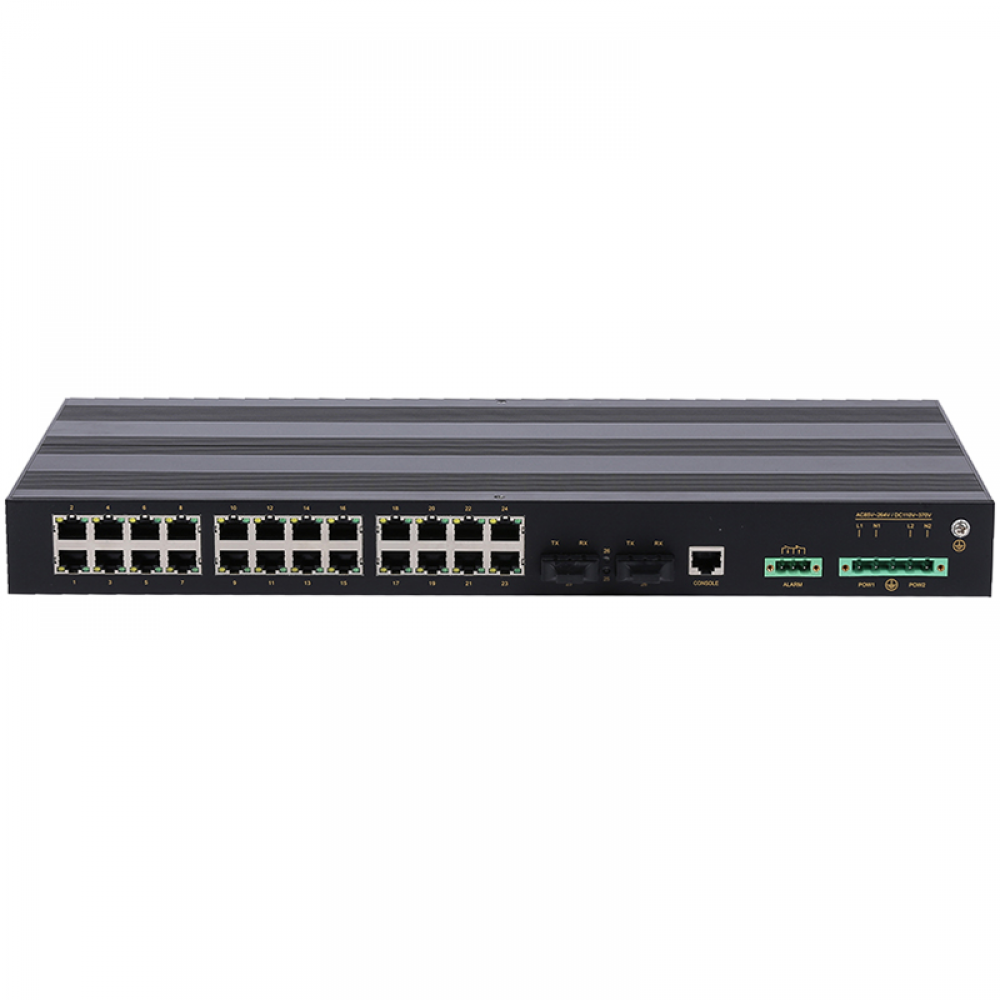

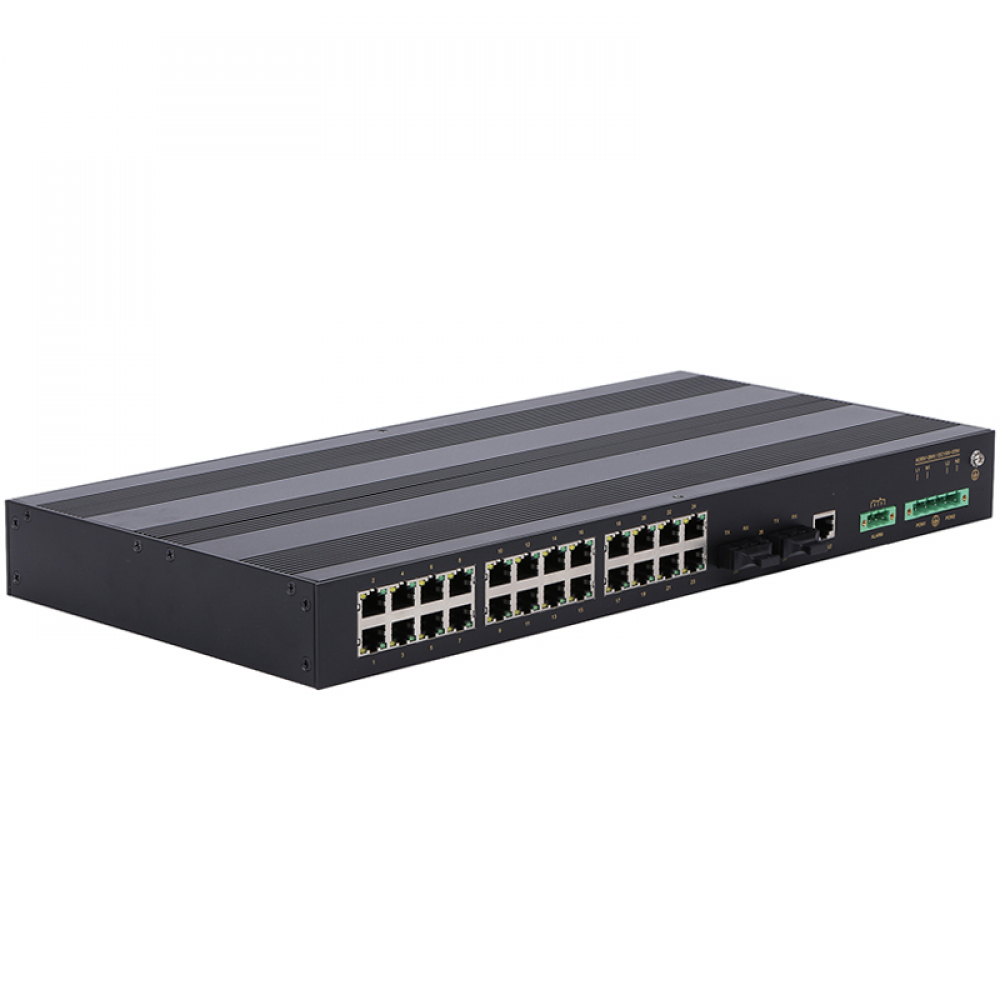

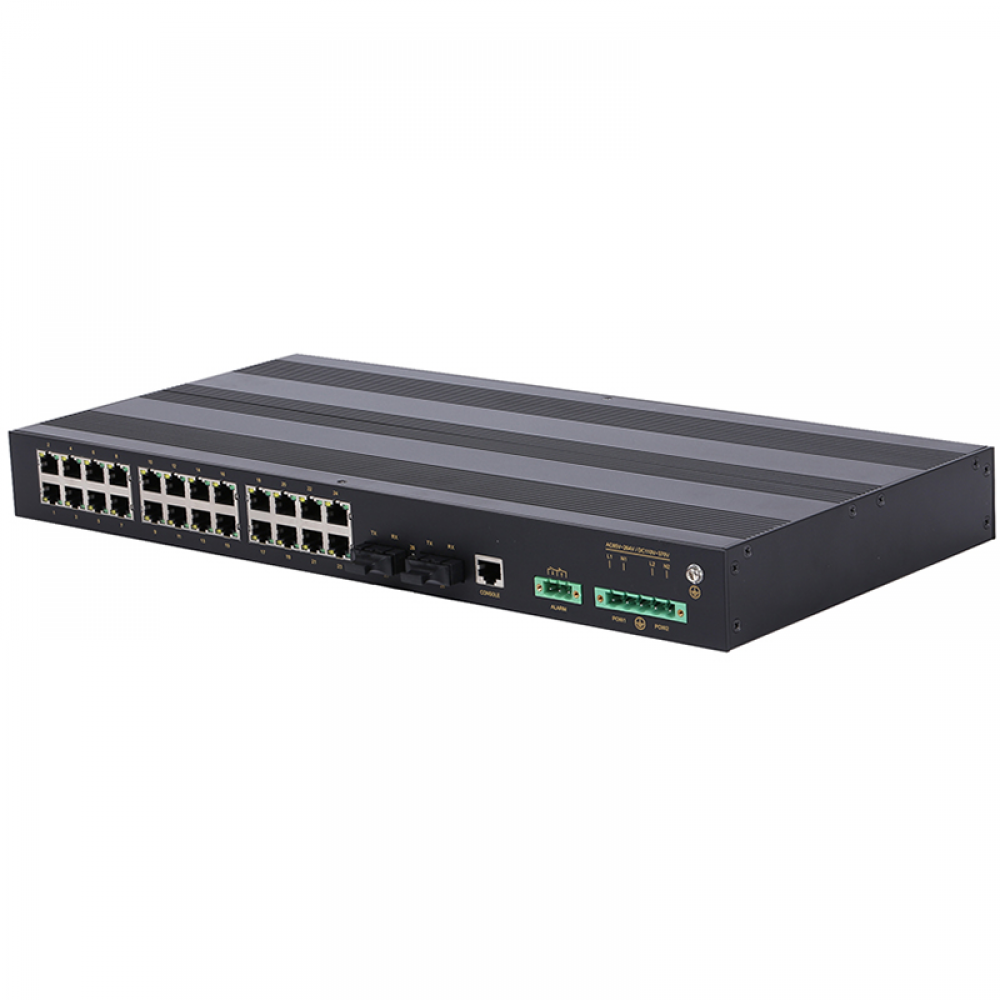

26 ports 10/100M rack-mount layer 2 managed industrial Ethernet switch

TMIE6126-2F series layer 2 industrial Ethernet switch is an industrial Ethernet communication product
developed for industrial communication. The product uses high-performance industrial-grade switch chip.
TMIE6126-2F series switches have 26 100M ports, and have AC220V/DC110V industrial power input function,
which can improve the stability of network communication and save wiring

2x100M FX ports+24x10/100M RJ45 ports;
Supports status display with front and back side indicator lights;
Supports T-Ring patent redundancy technique (failure recovery time <20ms);
Supports static multicast filtering, IGMP Snooping;
Supports broadcast storm suppression and port rate control;
Supports isolated power supply, optional dual redundant power supply;
Supports power off, fiber off, storm and other status relay alarm output;
Supports managed function such as VLAN, QoS, Trunking, and port mirroring;
Wide temperature range design, fanless thermal design.

Software function
Switch Properties	Supports Rate limit, Trunking, flow control, VLAN, IEEE 802.1Q VLAN and broadcast storm suppression
Redundancy Protocols	Support T-Ring patent redundancy technique (failure recovery time <20ms) Support STP/RSTP
Multicast	IGMP Snooping and static multicast filtering
Security	Support IEEE 802.1x,HTTP,RADIUS,user grading and MAC address binding
Service quality management	Supports SP and WRR queuing. Support QoS setting
IP address management	Support DHCP server
Management and maintenance	Supports Console, Web management methods Support SNMPv1/v2c Support software updating Support the IP/MAC address conflict alarm Support power off, power alarm, port alarm Support port mirroring; Support log viewing Support Link-check and NTP Support accept and transfer frame statistics
Technical parameters
Protocol Standard	IEEE802.3,IEEE802.3u (100Base-TX&100Base-FX),IEEE802.3x (Flow control),IEEE802.1D(STP),IEEE802.1w (RSTP),IEEE802.1Q (VLAN),IEEE802.1p (Priority),IEEE802.1x(Access control)
Switch capability
Priority Queues	4
VLAN Number	4096
Multicast group	256
MAC Table Size	8k
Backplane bandwidth	5.6Gbps
Switch Delay	<5μs
Interface
100M ports	Port numbers:26
	Connector: 1×9 fixed optical port (single/ multi-mode optional, SC/FC/ST interface)& RJ45 100M RJ45 port
	Baud rate: 100Base-FX (optical port), Self-adaption 10/100MBase-TX
Console port	RS232,RJ45
Terminal block for relay alarm	5.08mm terminal block,1A@24VDC
Terminal block for power input	7.62mm terminal block
Communication distance
Twisted-pair	100m(CAT5/CAT5e cable)
Multi-mode fiber	100M multi-mode:1310nm,2km
Single-mode fiber	100M single-mode:1310nm,20/40km;1550nm,60/80km
LED indicator lights
Front panel LED lights	Port light: LINK/ACT; SPEED
	System work light: RUN
	Power status light: PWR1, PWR2
	Alarm light: ALARM
Back panel LED lights	RJ45 Port light: LINK/ACT;SPEED
Back panel LED lights	Fiber light: LINK/ACT
Power
Input power	AC/DC220V(85-264VAC/110-370VDC)
Power consumption	<25W@(MAX)
Overload protection	support
Inversed protection	support
Redundancy protection	Support
Working Environment
Operating Temperature	-40°C~80°C
Storage temperature	-45°C~85°C
Ambient Humidity	5%~95%
Physical Characteristics
Shell	IP40 protection, aluminum alloy shell
Installation	Standard 19-inch rack mounting,
Dimension	482.6mm×44mm×210mm (W×H×D)
Industry standard
EMC	EN61000-4-2(ESD), Level 4 EN61000-4-3(RS), 4 EN61000-4-4(EFT), Level 4 EN61000-4-5(Surge), Level 4 EN61000-4-6(CS), Level 4 EN61000-4-8, Level 5
Impact	IEC60068–2-27
Falling	IEC60068-2-32
Shock	IEC60068-2-6
Warranty
Warranty	5 Years
Certification	CE, FCC, RoHS

TMIE6126-2F-AD220

2 *10/100M Fx ports +24 10/100M Tx ports, single AC85-264V/ DC110~370V isolate power supply
