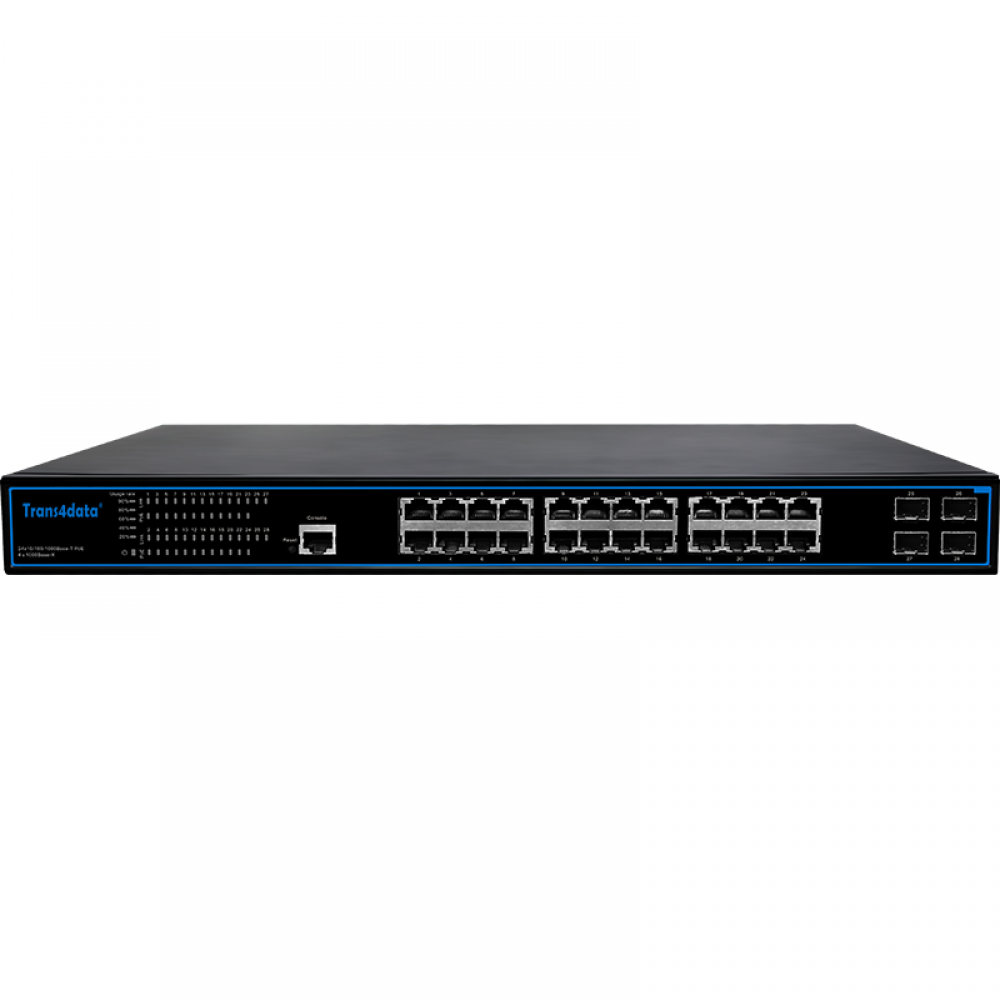

TMCE3128P-4GF-450 is a 28-port full gigabit managed PoE switch series that supports up to
24*10/100/1000M PoE ports and 4*1000M SFP ports. 24*10/100/1000M ports support PoE+,
conforming to IEEE 802.3af/at standard, single port PoE power up to 30W.
It supports L2 management, such as QoS, VLAN, MSTP, Multi-brocast, ports management
and PoE management. It has a high anti-interference ability, the product supports 6KV surge protection,
and 6KV contact / 8KV air ESD protection.
It supports wall hanging and desktop installation, reliable and durable, and can be used in security network
video monitoring, network engineering and other occasions
-
24*10/100/1000M PoE downlink ports, 4*1000M SFP ports;
-
Supports L2 management, such as QoS, VLAN, MSTP, Multi-brocast, ports management and PoE management ;
-
6KV surge protection, 6KV contact / 8KV air ESD protection;
-
Supports working temperature -10℃~50℃;
-
Supports wall hanging and desktop installation
Hardware
|
Parameter
|
Specifications
|
|
Power supply
|
AC power supply
|
|
Range of voltage
|
AC100-240V, 50/60Hz
|
|
Consumption
|
Self-consumption<20W, PoE output 390W max.
|
|
Downlink ports
|
Ports 1~24 10/100/1000Base-TX 30W PoE RJ45(IEEE
802.3af/at)
|
|
Uplink ports
|
25~28 ports：1000M SFP slots
|
|
Console port
|
RJ45 to serial port (38400, 8,N,1)
|
|
Reset key
|
Short press restart,
＞5s
press recovery to default
|
|
Cable and distance
|
Use cat5e/6, 100m max
|
|
Standard
|
IEEE802.3, IEEE802.3u, IEEE802.3z
|
|
Switch fabric
|
56Gbps
|
|
Though put
|
41.66Mpps
|
|
Buffer
|
4M
|
|
MAC address table
|
16K
|
|
Indicator
|
Power: 1 *red;
Uplink25~28: 1000M SFP
slots
Downlink
1~24: On RJ45 green LEDs indicate Link/Act,yellow LEDs indicate PoE
|
|
Protection
|
Surge: 6KV, standard: IEC61000-4-5 ESD: 6KV: contact / 8KV: air, standard:IEC61000-4-2
|
|
Working
temperature
|
-10℃~50℃
|
|
Storage
temperature
|
-40℃~85℃
|
|
Humidity
|
0~95%(No condensation)
|
|
Dimension(L×W×H)
|
442mm×285mm×44mm
|
|
Material
|
Metal
|
|
Colour
|
Black
|
|
Net-weight
|
4kg
|
Software
|
L2 Features
|
Port configuration
|
Auto-negotiation
|
|
|
Flow Control
|
|
|
Port Mirror
|
|
|
Traffic statistics
|
|
|
Link Aggregation
|
Static link aggregation
|
|
|
LACP
|
|
|
Algorithm based on Source/Destination MAC
|
|
|
Algorithm based on Source/Destination IP
|
|
|
8 groups
|
|
|
8 ports per group
|
|
|
MAC Table
|
Aging Time
|
|
|
Static MAC address
|
|
|
Dynamic MAC address management
|
|
|
VLAN
|
4K Active VLANs
|
|
|
4K VID
|
|
|
802.1Q Tag VLAN
|
|
|
Port VLAN
|
|
|
Protocol VLAN
|
|
|
MAC VLAN
|
|
|
Management VLAN
|
|
|
Voice VLAN
|
|
|
Q-in-Q
|
|
|
Private VLAN
|
|
|
GARP/GVRP
|
|
|
ACL
|
64 ACLs
|
|
|
L2, L3 e L4
|
|
|
Time-based ACL
|
|
|
Spanning tree
|
802.1D Spanning Tree Protocol (STP)
|
|
|
802.1w Rapid Spanning Tree Protocol (RSTP)
|
|
|
802.1s Multiple Spanning Tree Protocol (MSTP)
|
|
|
Loop Guard
|
|
|
Root Guard
|
|
|
TC-BPDU Guard
|
|
|
BPDU Guard
|
|
|
BPDU Filter
|
|
|
Multicast
|
256 groups
|
|
|
IGMP v1/v2/v3
|
|
|
Fast Leave
|
|
|
Multicast VLAN
|
|
|
Static Multicast
|
|
|
Multicast Filter
|
|
|
IGMP Statistics
|
|
|
MLD Snooping
|
|
|
PoE management
|
Support total power consumption control
|
|
|
Support single port PoE ON/OFF
|
|
|
Support port output priority
|
|
|
QOS
|
4 priority queues
|
|
|
CoS port-based
|
|
|
CoS 802.1p-based
|
|
|
CoS DSCP-based
|
|
|
Scheduling algorithms SP, WRR, SP+WRR
|
|
|
Storm Control (Broadcast, Multicast, Unknown Unicast)
|
|
|
Bandwidth control per port
|
|
|
Security Features
|
Port Security
|
|
|
MAC address filter
|
|
|
ARP Association (Manual, ARP scanning, DHCP snooping) up to 200 entries
|
|
|
ARP Protection
|
|
|
DoS (Denial of Service)
|
|
|
Classification of packages based on: End.MAC, IP End, TCP / UDP Ports,
Protocol Type
|
|
|
802.1x Authentication (port-based e MAC-based)
|
|
|
TACACS/TACACS+ Authentication
|
|
|
RADIUS Authentication
|
|
|
DHCP Filter
|
|
|
Guest VLAN
|
|
|
SSLv2/SSLv3/TLSv1
|
|
|
SSHv1/SSHv2
|
|
|
Restriction of WEB access based on: IP Address, And. MAC and Port
|
|
|
Port Isolation
|
|
|
Local User Name Password Authentication (2 levels)
|
|
|
Loop back detection
|
|
|
Management
|
SNMP v1/v2c/v3
|
|
|
RMON 4 groups
|
|
|
WEB (HTTP/HTTPS)
|
|
|
CLI (Telnet,
Console, SSHv1/v2)
|
|
|
Firmware upgrade
via console/web/TFTP
|
|
|
Configuration
Backup/Reload
|
|
|
All possible
configurations in the CLI must exist in the WEB interface
|
|
|
LLDP
|
|
|
Other Features
|
DHCP Relay
|
|
|
DHCP Client
|
|
|
DHCP Snooping
|
|
|
DHCP Option 82
|
|
|
SNTP Client
|
|
|
BOOTP Client
|
|
|
Maintenance
|
Ping and Trace-rt
|
|
|
System log (Local
and Remote)
|
|
|
Memory and CPU
Monitoring
|
|
|
Model
|
Description
|
|
TMCE3128P-4GF-450
|
With 24*10/100/1000M PoE downlink ports, 4*1000M SFP
ports;
Support L2 management, such as QoS, VLAN, MSTP,
Multi-brocast, ports management and PoE management; 6KV surge protection, 6KV
contact / 8KV air ESD protection.
|
