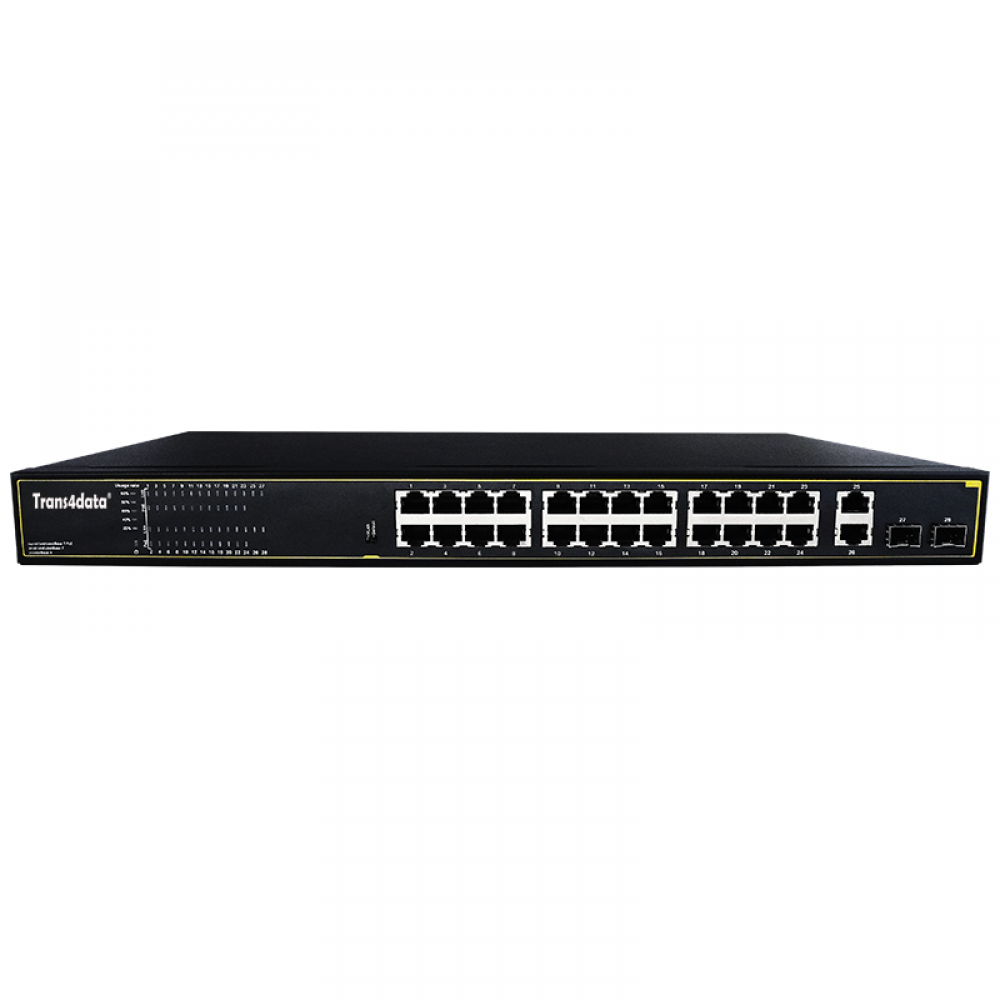

TCE3244P-2GE-2GF is a 28-port PoE unmanaged switch series that supports up to 24*10/100/1000M PoE ports,
2*10/100/1000M ports and 2 1000M SFP ports. 24*10/100/1000M ports support PoE+, conforming to IEEE 802.3af/at
standard, single port PoE power up to 30W.
It provides two modes, Default and VLAN, to adapt to various complex environments. At the same time, it supports the
PoE power usage rate indication, which is convenient to show the consumption of PoE power.
It has a high anti-interference ability, the product supports 6KV surge protection, and 6KV contact / 8KV air ESD protection .
It supports rack-mount, wall hanging and desktop installation, reliable and durable, and can be used in security network
video monitoring, network engineering and other occasions.
-
24*10/100/1000M PoE ports, 2*10/100/1000M ports and 2*1000M SFP slots;
-
The maximum PoE power of single port is 30W;
-
Provides two modes of Default and VLAN to adapt to various complex environments;
-
Supports PoE usage rate indication, which is convenient to show the consumption of PoE power.
-
6KV surge protection, 6KV contact / 8KV air ESD protection;
-
Supports rack-mount, wall hanging and desktop installation.
|
Parameter
|
Specifications
|
|
Power supply
|
AC power supply
|
|
Range of voltage
|
AC100-240V, 50/60Hz
|
|
Consumption
|
Self-consumption<20W, PoE output 390W/270W
|
|
Downlink ports
|
Ports 1~24: 10/100/1000Base-TX 30W PoE RJ45(IEEE
802.3af/at)
|
|
Uplink ports
|
25~26 ports: 10/100/1000Base-TX RJ45; 27~28 ports: 1000Base-X SFP
|
|
PoE ports
|
Ports 1~24 support IEEE802.3af/at, end-span, 30W per
port Max.
|
|
POE Usage rate
|
20%, 40%, 60%, 80%, 90% LED indicator, indicates PoE
usage.
|
|
Working mode
|
Default mode: normal
switch mode.
VLAN mode: ports 1 ~ 24 are isolated from each other
and can only communicate with the
uplink port; restrain the network storm; turn off the
flow control.
|
|
1~24 PoE ports
|
Support IEEE 802.3af/at, end-span, single
port≦30W
|
|
Cable and distance
|
Use cat5e/6, 100m max
|
|
Standard
|
IEEE802.3, IEEE802.3u, IEEE802.3z
|
|
Switch fabric
|
56Gbps
|
|
Though put
|
42Mpps
|
|
Buffer
|
4M
|
|
MAC address table
|
8K
|
|
Indicator
|
Power: 1 *red ;
20%, 40%, 60%, 80%,
90% LED indicator, indicates PoE usage.
Uplink25~26: On RJ45 yellow
and green LEDs indicate Link/Act
27~28: 1000Base-X SFP
Downlink 1~24: On RJ45
green LEDs indicate Link/Act,yellow LEDs indicate PoE
|
|
Protection
|
Surge: 6KV, standard: IEC61000-4-5 ESD: 6KV: contact 8KV: air, standard:IEC61000-4-2
|
|
Working
temperature
|
-10℃~50℃
|
|
Storage
temperature
|
-40℃~85℃
|
|
Humidity
|
0~95%(No condensation)
|
|
Dimension(L×W×H)
|
442mm×285mm×44mm
|
|
Material
|
Metal
|
|
Colour
|
Black
|
|
Net-weight
|
4kg
|
|
Model
|
Description
|
|
TCE3244P-2GE-2GF -450W
|
24*10/100/1000M PoE RJ45 ports, 2*10/100/1000M RJ45 ports, 2*1000M SFP
slots;
Default, VLAN working mode;
PoE usage indicators;
450W power module(390W PoE power output).
|
|
TCE3244P-2GE-2GF -300W
|
24*10/100/1000M PoE RJ45 ports, 2*10/100/1000M RJ45 ports, 2*1000M SFP
slots;
Default, VLAN working mode;
PoE usage indicators;
300W power module(270W PoE power output).
|
