Software performance
|
|
Switch
Function
|
Support VLAN
Support GVRP
Support port aggregation.
Support flow control.
Support Rate limit
Support broadcast storm suppression.
|
|
Redundancy
protocol
|
Support VRRP/EAPS
Support T-Ring and the recovery time<20 ms.
Support RSTP/MSTP and compatible with STP
|
|
Multicast Routing
|
Support IGMP snooping/ IGMP v1/v2/v3
Support GMRP
Support static multicast.
|
|
Unicast
Routing
|
Support RIPv1/v2/RIPng/OSPFv1/v2
Support Static Routing
Support PIM-SM/PIM-DM/PIM-DMv6
|
|
Service
quality management
|
Support ACL and L2-L4 data Filter
Support SP/ WRR queuing
|
|
IP
management
|
Support DHCP server/relay/client
|
|
Management
and maintenance
|
Support Console/Telnet/and Web management methods
Support SNMPv1/v2c centralized management
Support FTP/TFTP file transfer and software update
Support power failure alarm/power alarm/ port link down alarm/ring alarm
Support port mirroring/Syslog/ LLDP/ SNTP
|
|
Technical specifications
|
|
Ethernet
Standard
|
IEEE802.3-10BaseT
IEEE802.3u-100BaseTX/100Base-FX
IEEE802.3x-Flow Control
IEEE802.3z-1000BaseLX
IEEE802.3ab-1000BaseTX
IEEE802.1ab
IEEE802.1D-Spanning Tree Protocol
IEEE802.1w-Rapid Spanning Tree Protoco
IEEE802.1Q -VLAN Tagging
IEEE802.1s Multiple Spanning Tree Protocol
IEEE802.1p -Class of Service
IEEE802.1X-Port Based Network Access Control
GVRP/RIPv1/v2&OSPFv1/v2/v3/VRRP/DHCP/CLI/EAPS/Qos/LACP/LLDP/IGMP/PIM/SNMP/SNTP/SSH
|
|
Switch
properties
|
|
Priority queue
|
8
|
|
VLAN ID
|
1-4096
|
|
IGMP Groups
|
512
|
|
MAC table
|
16k
|
|
Switch Bandwidth
|
56Gbps
|
|
Route Table
|
8k
|
|
Switch Delay
|
<5μs
|
|
Interface
|
|
Gigabit ports
|
Port numbers:28
|
|
Connector: SFP for fiber port(LC, single or multi-mode),RJ45
for copper port
|
|
Baud rate:1000Base-LX(fiber port), 10/100/1000M for
copper port
|
|
Console port
|
RS232/RJ45
|
|
Terminal block for power input
|
5.08mm terminal block
|
|
Terminal block for relay alarm
|
5.08mm terminal block,1A@24VDC
|
|
Communication distance
|
|
Twisted-pair
|
100m(CAT5/CAT5e cable)
|
|
Multimode fiber
|
Gigabit multi-mode: 850nm 550m
|
|
Single mode fiber
|
Gigabit single mode: 1310nm 20km
|
|
LED indicator
lights
|
|

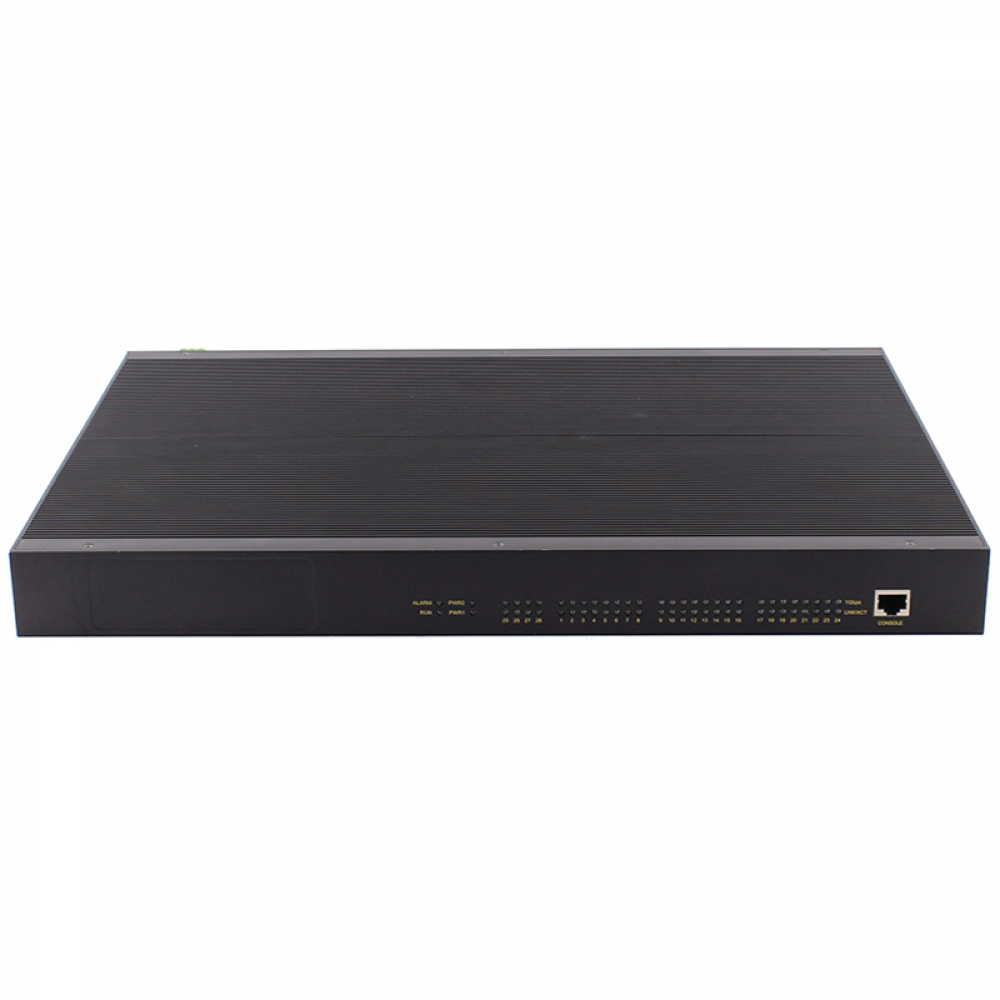

Front panel LED
|
Port light: LINK/ACT;SPEED
|
|
Running light: RUN
|
|
Power LED: PWR1, PWR2
|
|
Alarm LED: Alarm
|
|

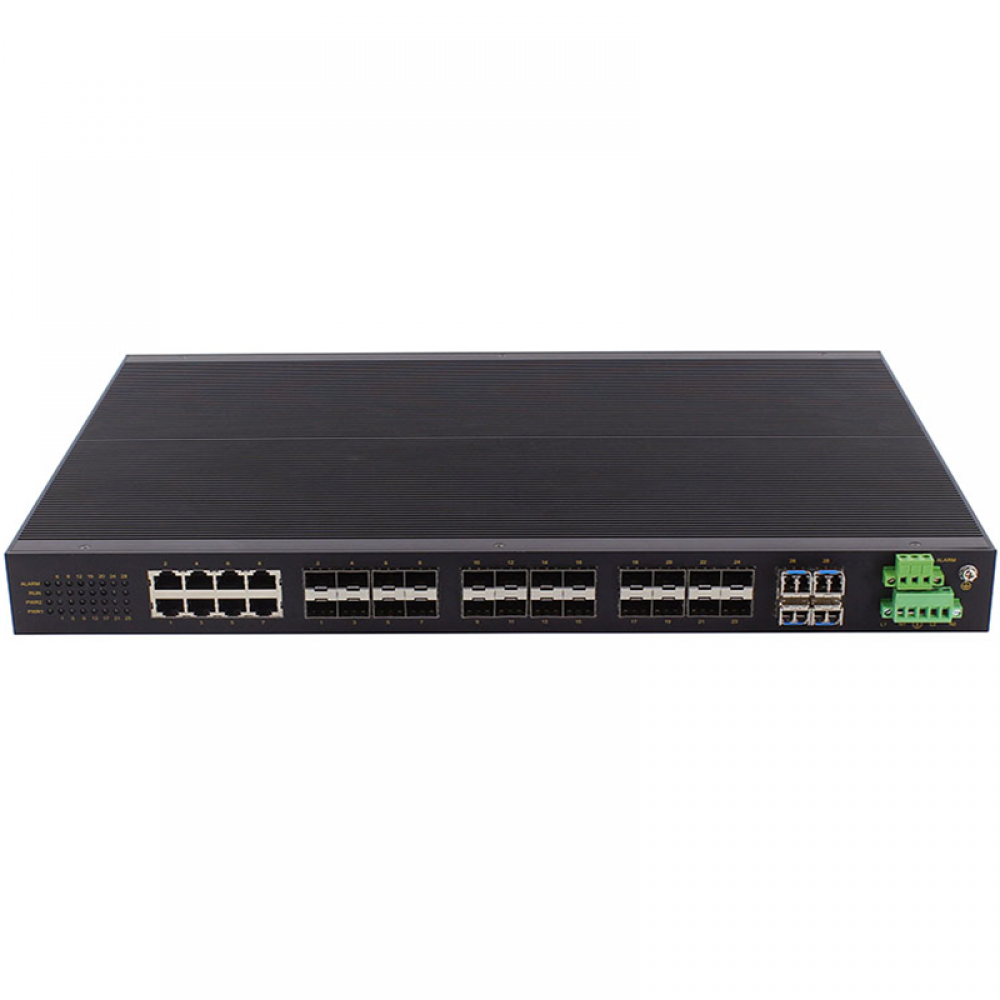

Rear panel LED
|
RJ45 LED: LINK/ACT; SPEED
|
|
Fiber LED: LINK/ACT
|
|
Power
Requirements
|
|
Power input
|
AC/DC220V(85-264VAC/110-370VDC)
|
|
Full-load consumption
|
<32W
|
|
Overload protection
|
support
|
|
Inversed protection
|
support
|
|
Redundancy protection
|
support
|
|
Working Environment
|
|
Operating Temperature
|
-40°C~75°C
|
|
Storage temperature
|
-40°C~80°C
|
|
Ambient Humidity
|
5%~95%( non-condensing)
|
|
Physical Characteristics
|
|
Shell
|
IP40 protection, aluminum alloy shell
|
|
Installation
|
19" 1U rack mounted for front and
rear outlet installation
|
|
Dimension
|
482.6 mmx44mmx315mm
|
|
Industry
standard
|
|
EMC
|
EN61000-4-2(ESD),Level 4
EN61000-4-3(RS),Level 4
EN61000-4-4(EFT),Level 4
EN61000-4-5(Surge),Level 4
EN61000-4-6(CS),Level 4
EN61000-4-8,Level 5
|
|
Impact
|
IEC60068–2-27
|
|
Falling
|
IEC60068-2-32
|
|
Shock
|
IEC60068-2-6
|
|
Warranty
|
|
Warranty period
|
5 Years
|
|
Certification
|
CE, FCC, RoHS
|
