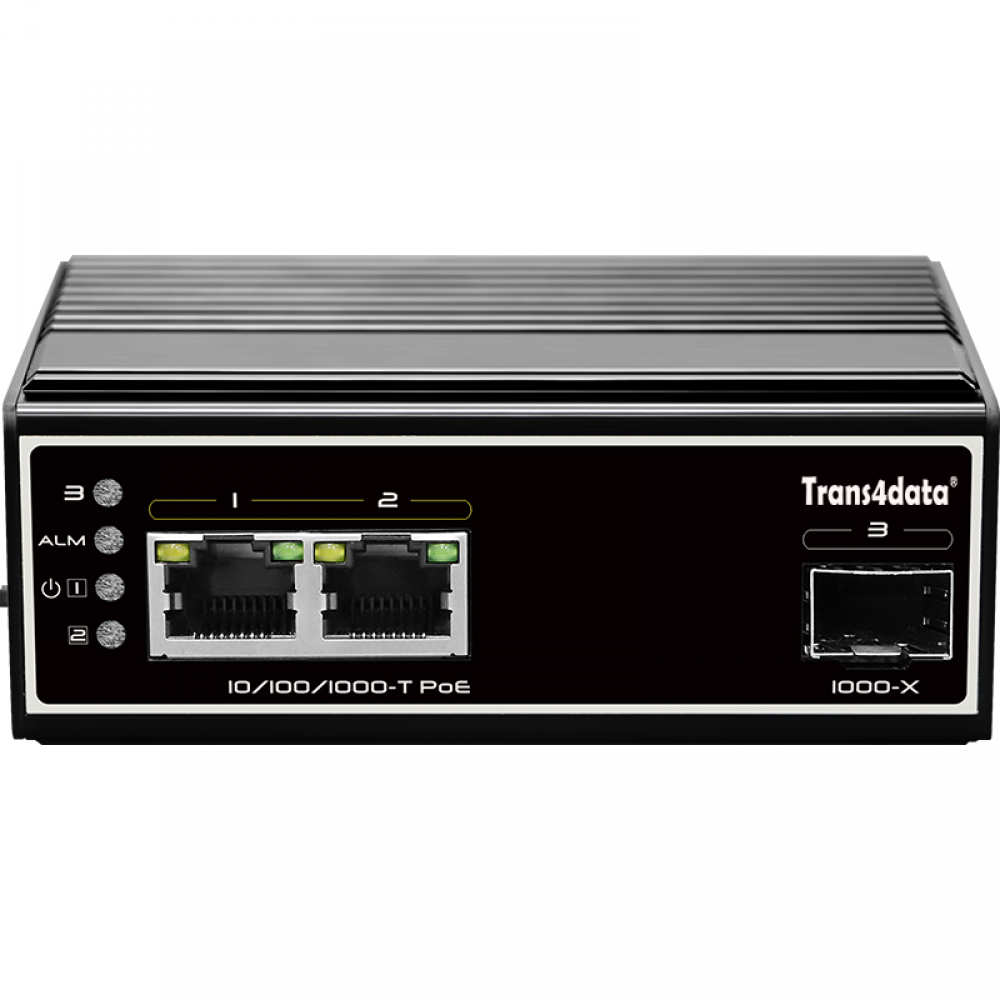

TIE5203P-1GF-Mini is a 3-port, full gigabit industrial PoE switch that supports up to 2*10/100/1000M PoE downlink ports,
1*1000M SFP port. 2*10/100/1000M ports support PoE+, conforming to IEEE 802.3af/at standard.
Supports relay alarm for power off, network off, PoE off; 6KV surge protection, 6KV contact/8KV air ESD protection;
Supports Din-rail installation, which is reliable and durable, and can be used in security network video monitoring,
network engineering and other occasions; It has the characteristics of reliable work, strong and durable, high performance and so on.
-
2*10/100/1000M 30W PSE downlink port, 1*1000M SFP port ;
-
Supports relay alarm for power off, network broken, PoE off;
-
6KV surge protection, 6KV contact/8KV air ESD protection;
-
Supports Din-rail installation, which is reliable and durable, and can be used in security network video monitoring, network engineering and other occasions.
-
Supports working temperature -40℃～80℃
|
Parameter
|
Specifications
|
|
Power supply
|
Powered by power adaptor
|
|
Range of voltage
|
DC 48~57V
|
|
Consumption
|
Self
consumption<5W
|
|
Downlink ports
|
Ports 1~2:
10/100/1000Base-T 30W PoE ;
|
|
Uplink ports
|
Port 3:
1000Base-X SFP
|
|
Relay alarm
|
Relay alarm for power off, network broken,
PoE off;
|
|
Cable and distance
|
Use
cat5e/6,100m max
|
|
Standard
|
IEEE802.3, IEEE802.3u, IEEE802.3z
|
|
Switch fabric
|
6 Gbps
|
|
Though put
|
4.46 Mpps
|
|
Buffer
|
1M
|
|
MAC address table
|
8K
|
|
Indicator
|
Power: 2 *red ;
Uplink3: Green LEDs
indicate Link/Act
Downlink 1~2: On RJ45
green LEDs indicate Link/Act
Yellow LEDs indicate
PoE
|
|
Protection
|
Surge: 6KV, standard: IEC61000-4-5
ESD: 6KV: contact / 8KV: air, standard:IEC61000-4-2
|
|
Working
temperature
|
-40℃~80℃
|
|
Storage
temperature
|
-40℃~85℃
|
|
Humidity
|
0~95%(No condensation)
|
|
Dimension(L×W×H)
|
101 mm×65 mm×36mm
|
|
Material
|
Aluminium alloy
|
|
Colour
|
Black
|
|
Net-weight
|
300g
|
|
Model
|
Description
|
|
TIE5203P-1GF-Mini
|
With 2*10/100/1000M 30W PoE downlink ports and 1*1000M
SFP port;
2*DC48-57V power supply(Power adaptor buy extra);
Supports
relay alarm function for power off, network broken and PoE off;
|
