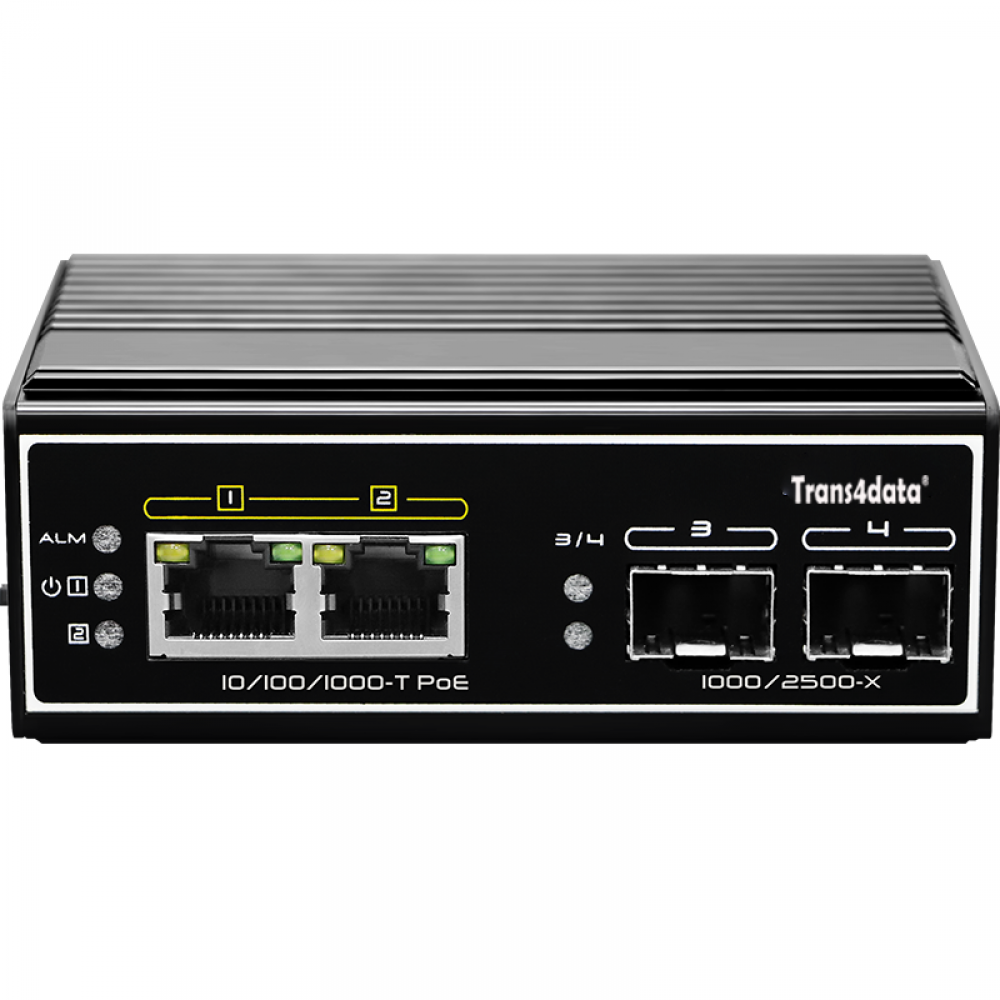

Compact size 2.5G uplink 802.3bt standard 90W industrial PoE switch

The TIE5204BT-2Q is a 4-port industrial PoE switch that supports up to 2 *10/100/1000M 90W high power PoE ports
and 2*2.5G/1000M SFP ports. 2*10/100/1000M ports support PoE+, conforming to IEEE 802.3af/at/bt standard.

Fiber ports provides 2 modes through the dip switch, 2.5GM mode and 1000M mode to adapt variety needs.
It supports the PoE Auto-check function, which is specially designed to solve the problems of equipment frozen.
It can automatically detect the frozen PD equipment and restart the ports’ output of PSE, and restart the PD device.
It greatly reduces the maintenance difficulty of engineering.

Supports Din-rail installation, which is reliable and durable, and can be used in security network video monitoring,
network engineering and other occasions.

2*10/100/1000M Hi-PoE 90W ports and 2*2.5G/1000M SFP ports;
Fiber ports provides 2 modes through the dip switch, 2.5GM mode and 1000M mode to adapt to variety needs;
Supports relay alarm for power off, network broken and PoE off;
Supports PoE Auto-check function, which is specially designed to solve the problems of equipment frozen.It can automatically detect the frozen PD equipment and restart the ports’ output of PSE, and restart the PD device. It greatly reduces the maintenance difficulty of engineering;
Supports 6KV surge protection, 6KV contact / 8KV air ESD protection;
Supports working temperature -40℃～80℃.

Parameter	Specifications
Power supply	Powered by power adaptor
Range of voltage	DC 48~57V
Consumption	Self consumption<5W
Downlink ports	Ports 1~2 10/100/1000Base-T 90W PoE RJ45
Uplink ports	Ports 3~4 supports 2 modes of 2.5G/1000Base-X
PoE Auto-check	If detect the frozen PD device, restart it
Working mode of fiber ports	It can be selected 2.5GM or 1000M work mode by dip switch
Relay alarm	1 channel relay alarm output for power off, ports PoE off, ports link down
Cable and distance	Use cat5e/6,100m max
Standard	IEEE802.3, IEEE802.3u, IEEE802.3z
Switch fabric	14Gbps
Though put	10.4Mpps
Buffer	1M bits
MAC address table	8K
Indicator	Power: 2 *red ; Uplink3~4: Green LEDs indicate Link/Act Downlink 1~2: Yellow LED indicate PoE, green LEDs indicate Link/Act
Protection	Surge: 6KV, standard: IEC61000-4-5 ESD: 6KV: contact / 8KV: air, standard:IEC61000-4-2
Working temperature	-40℃~80℃
Storage temperature	-40℃~85℃
Humidity	0~95%(No condensation)
Dimension(L×W×H)	101 mm×65 mm×36mm
Material	Aluminium alloy
Colour	Black
Net-weight	300g

Model

Description

TIE5204BT-2Q

With 2*10/100/1000M 90W PoE downlink ports and 2*2.5G/1000M SFP ports;

2*DC48-57V power supply(Power adaptor buy extra);

Fiber ports provides 2 modes through the dip switch, 2.5GM mode and 1000M mode to adapt to variety needs;Supports relay alarm function for power off, network off and PoE off;

Supports the PoE Auto-check function.

4 ports compact size 2.5G uplink industrial 90W PoE switch
