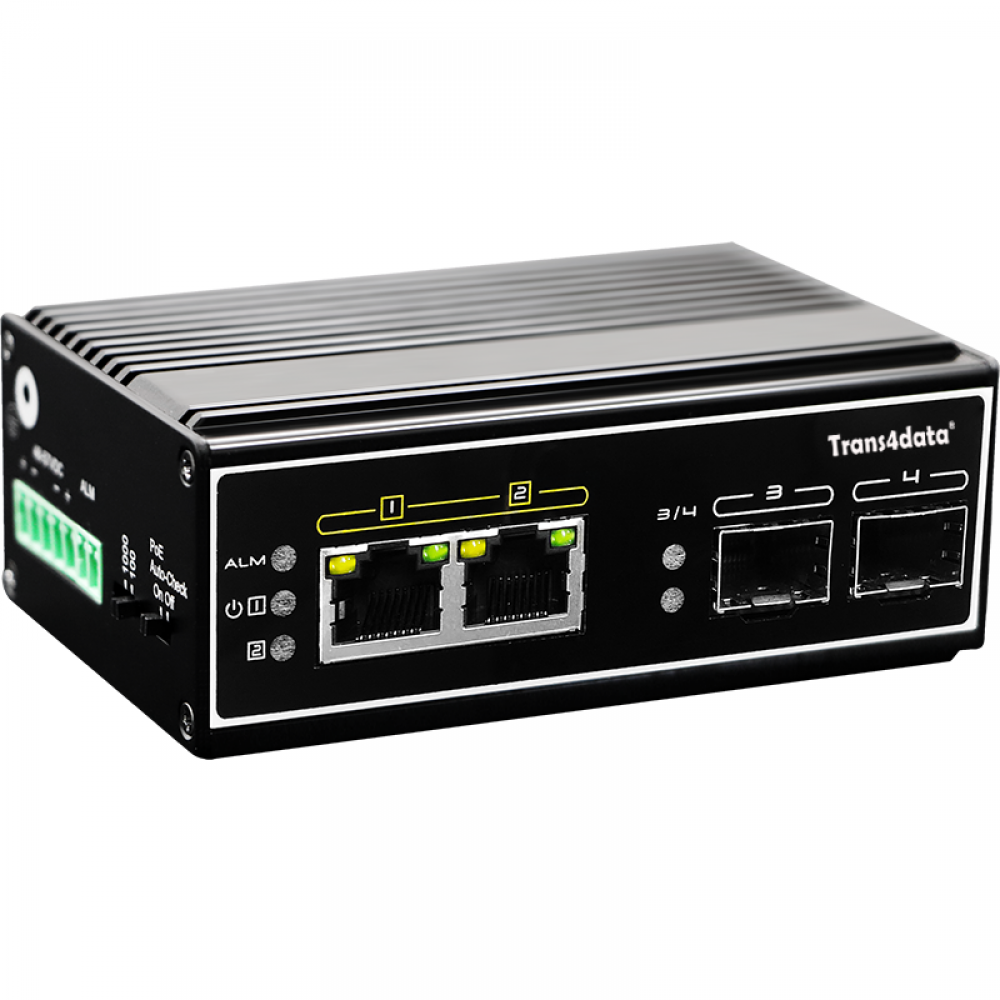

4 ports compact size full gigabit industrial 90W PoE switch

Model No.: TIE5204BT-2GF

  • 2*10/100/1000M Hi-PoE 90W ports and 2*1000M SFP ports;
  • Supports dual speed 100/1000M on fiber ports;
  • Supports relay alarm and PoE Auto-check function;
  • Supports 6KV surge protection, 6KV contact / 8KV air ESD protection;
  • Supports working temperature -40℃~80℃;
  • 5 years warranty
OverviewFeaturesSpecificationApplicationOrder Information
The TIE5204BT-2GF is a 4-port industrial full gigabit PoE switch that supports up to 2 *10/100/1000M 90W high power PoE ports
and 2*1000M SFP ports. 2*10/100/1000M ports support PoE+, conforming to IEEE 802.3af/at /bt standard.

Fiber ports provides 2 modes through the dip switch, 100M mode and 1000M mode to adapt variety needs.
It supports the PoE Auto-check function, which is specially designed to solve the problems of equipment frozen.
It can automatically detect the frozen PD equipment and restart the ports’ output of PSE, and restart the PD device.
It greatly reduces the maintenance difficulty of engineering.

Supports Din-rail installation, which is reliable and durable, and can be used in security network video monitoring,
network engineering and other occasions.

  • 2*10/100/1000M Hi-PoE 90W ports and 2*1000M SFP ports;
  • Fiber ports provides 2 modes through the dip switch, 100M mode and 1000M mode to adapt to variety needs;
  • Supports relay alarm for power off, network broken and PoE off;
  • Supports PoE Auto-check function, which is specially designed to solve the problems of equipment frozen.It can automatically detect the frozen PD equipment and restart the ports’ output of PSE, and restart the PD device. It greatly reduces the maintenance difficulty of engineering;
  • Supports 6KV surge protection, 6KV contact / 8KV air ESD protection;
  • Supports working temperature -40℃~80℃;
  • 5 years warranty

Parameter

 Specifications

Power supply

Powered by power adaptor

Range of voltage

DC 48~57V

Consumption

Self consumption<5W

Downlink ports

Ports 1~2 10/100/1000Base-T 90W PoE RJ45

Uplink ports

Ports 3~4 supports 2 modes of 100Base-FX and 1000Base-X

PoE Auto-check

If detect the frozen PD device, restart it

Working mode of

fiber ports

It can be selected 100M or 1000M work mode by dip switch

Relay alarm

1 channel relay alarm output for power off, ports PoE off, ports link down

Cable and distance

Use cat5e/6,100m max

Standard

IEEE802.3, IEEE802.3u, IEEE802.3z

Switch fabric

8 Gbps

Though put

5.95 Mpps

Buffer

1M

MAC address table

8K

Indicator

Power: 2 *red ;

Uplink3~4: Green LEDs indicate Link/Act

Downlink 1~2: Yellow LED indicate PoE, green LEDs indicate Link/Act

Protection

Surge: 6KV, standard: IEC61000-4-5   ESD: 6KV: contact / 8KV: air, standard:IEC61000-4-2

Working temperature

-40~80

Storage temperature

-40~85

Humidity

0~95%(No condensation)

Dimension(L×W×H)

101 mm×65 mm×36mm

Material

Aluminium alloy

Colour

Black

Net-weight

300g



Model

Description

 TIE5204BT-2GF

With 2*10/100/1000M 90W PoE downlink ports and 2*1000M SFP ports;

2*DC48-57V power supply(Power adaptor buy extra);

Fiber ports provides 2 modes through the dip switch, 100M mode and 1000M mode to adapt to variety needs; Supports relay alarm function for power off, network off and PoE off;

Supports the PoE Auto-check function.
