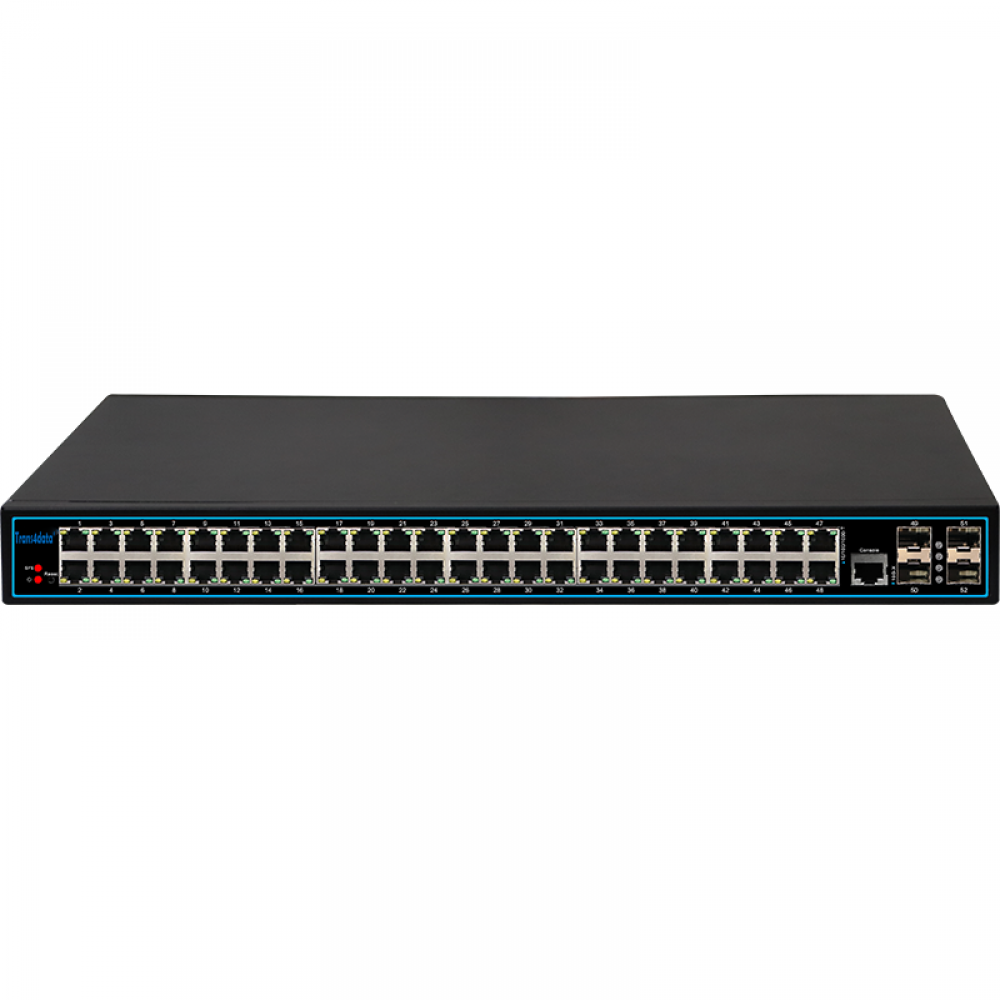

The TMCE5152-4T-L3 is a 48-port full gigabit layer 3 managed PoE switch that supports up to 48 *10/100/1000M PoE ports
and 4*10G SFP ports. 48*10/100/1000M ports support PoE+, conforming to IEEE 802.3af/at standard.
It supports L3 management, such as OSPF, RIP, QoS, VLAN, MSTP, Multi- broadcast, ports management and PoE management.
It has the characteristics of reliable work, good for engineering installation, strong and durable, high cost performance and so on.
It can be used in security network video monitoring system, network engineering and other occasions.
-
48 *10/100/1000M PoE ports and 4*10G SFP ports;
-
Supports L3 management, such as OSPF, RIP, QoS, VLAN, MSTP, Multi- broadcast, ports management and PoE management;
-
6KV surge protection, 6KV contact / 8KV air ESD protection;
-
Supports working temperature -10℃~50℃;
-
Supports rack-mount, wall mounting and desktop installation.
Hardware
|
Parameter
|
Specifications
|
|
Power supply
|
Powered by AC power
|
|
Range of voltage
|
AC 100~240V, 50/60Hz
|
|
Consumption
|
Self consumption<20W
|
|
Downlink ports
|
Ports 1~48: 10/100/1000Base-T PoE RJ45(IEEE8025.3af/at)
;
|
|
Uplink ports
|
Ports 49~52: 10G SFP slots
|
|
PoE ports
|
1-48 each ports
maximum 30W output
|
|
Cable and distance
|
Use cat5e/6，100m max.
|
|
Standard
|
IEEE802.3, IEEE802.3u, IEEE802.3z
|
|
Switch fabric
|
176Gbps
|
|
Though put
|
130.9Mpps
|
|
Buffer
|
16M
|
|
MAC address table
|
8K
|
|
Indicator
|
Power: red indicator;
Downlink1~48: On RJ45 green LEDs indicate Link/Act, yellow LEDs
indicate PoE
Uplink 49~52: Green
LEDs indicate Link/Act
|
|
Protection
|
Surge: 6KV, standard: IEC61000-4-5
ESD: 6KV: contact / 8KV: air, standard:IEC61000-4-2
|
|
Working
temperature
|
-10℃~50℃
|
|
Storage
temperature
|
-40℃~85℃
|
|
Humidity
|
0~95%(No condensation)
|
|
Dimension(L×W×H)
|
442mm×285mm×44mm
|
|
Material
|
Metal
|
|
Colour
|
Black
|
|
Net-weight
|
7.4KG
|
Software
|
L2 Features
|
Port configuration
|
Auto-negotiation
|
|
Flow Control
|
|
Port Mirror
|
|
Traffic statistics
|
|
Link Aggregation
|
Static link aggregation
|
|
LACP
|
|
Algorithm based on Source/Destination MAC
|
|
Algorithm based on Source/Destination IP
|
|
8 groups
|
|
8 ports per group
|
|
MAC Table
|
Aging Time
|
|
Static MAC address
|
|
Dynamic MAC address management
|
|
VLAN
|
4K Active VLANs
|
|
4K VID
|
|
802.1Q Tag VLAN
|
|
Port VLAN
|
|
Protocol VLAN
|
|
MAC VLAN
|
|
Management VLAN
|
|
Voice VLAN
|
|
Q-in-Q
|
|
Private VLAN
|
|
GARP/GVRP
|
|
ACL
|
64 ACLs
|
|
L2, L3 e L4
|
|
Time-based ACL
|
|
Spanning tree
|
802.1D Spanning Tree Protocol (STP)
|
|
802.1w Rapid Spanning Tree Protocol (RSTP)
|
|
802.1s Multiple Spanning Tree Protocol (MSTP)
|
|
Loop Guard
|
|
Root Guard
|
|
TC-BPDU Guard
|
|
BPDU Guard
|
|
BPDU Filter
|
|
Multicast
|
256 groups
|
|
IGMP v1/v2/v3
|
|
Fast Leave
|
|
Multicast VLAN
|
|
Static Multicast
|
|
Multicast Filter
|
|
IGMP Statistics
|
|
MLD Snooping
|
|
QOS
|
4 priority queues
|
|
CoS port-based
|
|
CoS 802.1p-based
|
|
CoS DSCP-based
|
|
Scheduling algorithms SP, WRR, SP+WRR
|
|
Storm Control (Broadcast, Multicast, Unknown Unicast)
|
|
Bandwidth control per port
|
|
Security Features
|
Port Security
|
|
MAC address filter
|
|
ARP Association (Manual, ARP scanning, DHCP snooping) up to 200 entries
|
|
ARP Protection
|
|
DoS (Denial of Service)
|
|
Classification of packages based on: End.MAC, IP
End, TCP / UDP Ports, Protocol Type
|
|
802.1x Authentication (port-based e MAC-based)
|
|
TACACS/TACACS+ Authentication
|
|
RADIUS Authentication
|
|
DHCP Filter
|
|
Guest VLAN
|
|
SSLv2/SSLv3/TLSv1
|
|
SSHv1/SSHv2
|
|
Restriction of WEB access based on: IP Address, And. MAC and Port
|
|
Port Isolation
|
|
Local User Name Password Authentication (2 levels)
|
|
Loop-back detection
|
|
Management
|
SNMP v1/v2c/v3
|
|
RMON 4 groups
|
|
WEB (HTTP/HTTPS)
|
|
CLI (Telnet, Console, SSHv1/v2)
|
|
Firmware upgrade via console/web/TFTP
|
|
Configuration Backup/Reload
|
|
All possible configurations in the CLI must exist in the WEB interface
|
|
LLDP
|
|
Other Features
|
DHCP Relay
|
|
DHCP Client
|
|
DHCP Snooping
|
|
DHCP Option 82
|
|
SNTP Client
|
|
BOOTP Client
|
|
Maintenance
|
Ping and Tracert
|
|
System log (Local and Remote)
|
|
Memory and CPU Monitoring
|
|
L3 Features
|
Static Routing
|
|
OSPFv2
|
|
RIPv1/v2
|
|
DHCP Server
|
|
IPV6
|
IPv6 neighbor discovery (ND)
|
|
Path maximum transmission unit (MTU) discovery
|
|
Internet Control Message Protocol (ICMP) version 6
|
|
TCPv6/UDPv6
|
|
Ping6
|
|
Tracert6
|
|
Telnet(v6)
|
|
Http/Https
|
|
IPv6 TFTP
|
|
Static Routing
|
|
Interface IPV6
|
|
Model
|
Description
|
|
TMCE5152-4T-L3
|
With 48 *10/100/1000M PoE ports and 4*10G SFP ports;
Support 48 ports PoE power each up to 30W；
400W built-in power supply, L3 network
management;
supports rack-mount wall mounting and desktop installation.
|
