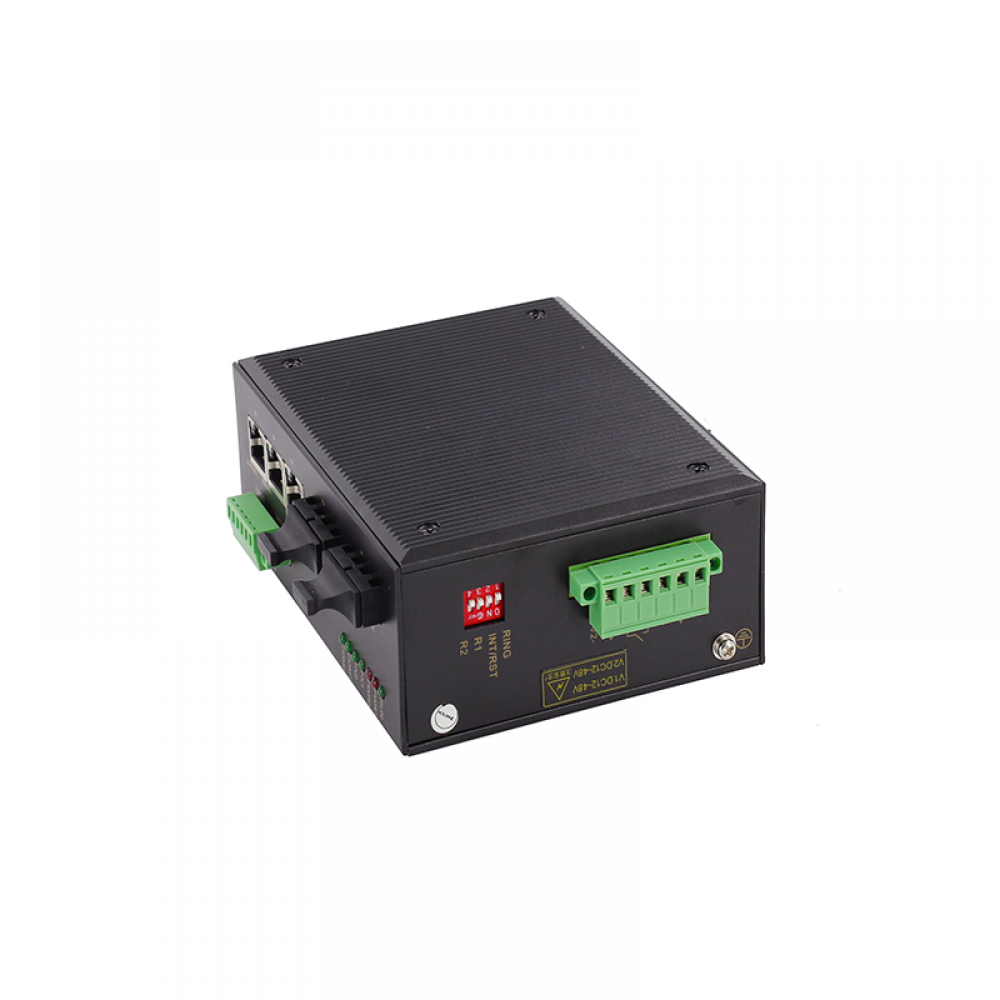

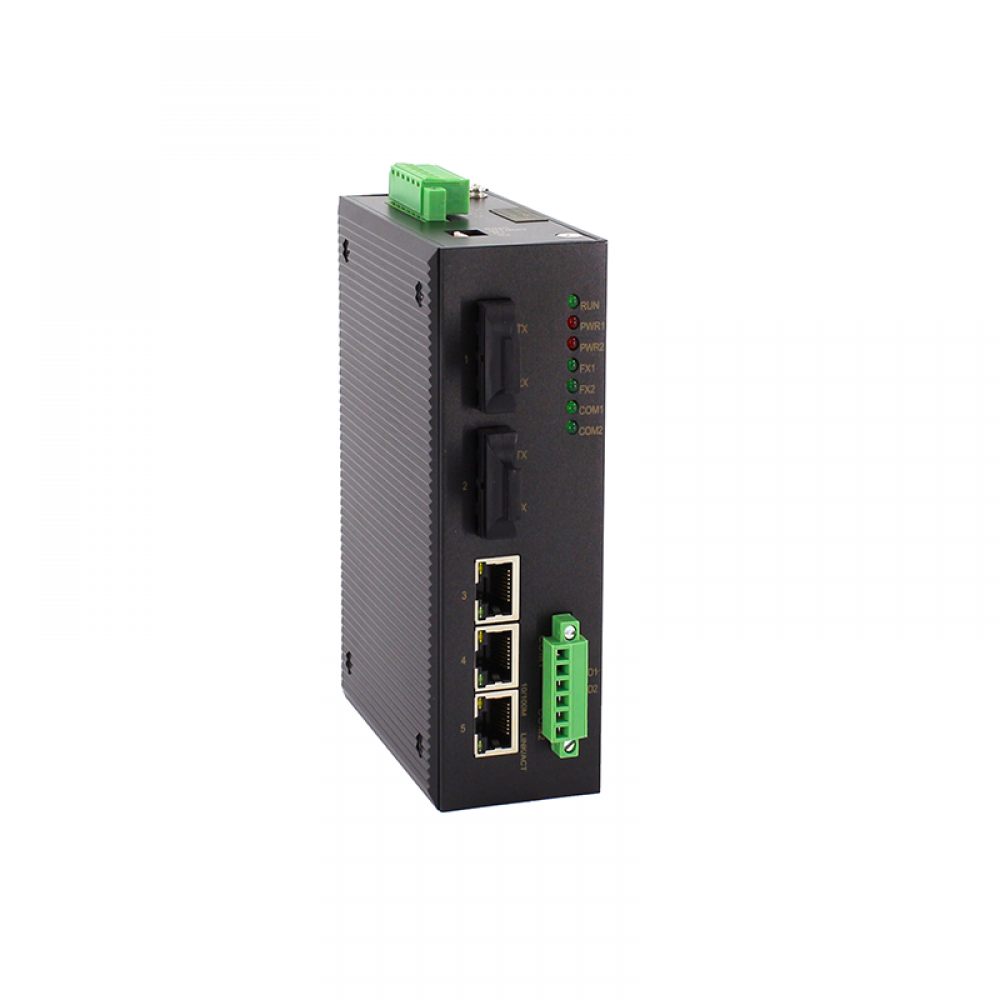

TMIE6205D-2F series products are a new-generation industrial Ethernet switch developed by Trans4data
for industrial communication front-end data access.
TMIE6205D-2F supports the traditional 3 *100M fiber ports + 3 *10/100M copper ports on the interface.
It also expands the 2-way RS232, RS485, and CANBus buses, completely solving the unified Ethernet transmission
and device management platform from the access layer for the industrial communication field
-
2x10/100BaseF(x) +3x10/100BaseT(x)
-
Supports 2RS-232/RS-485/CAN port
-
Supports indicator status display, support fast dial switch Ring control
-
Supports T-Ring with the recovery time<20ms
-
Supports broadcast storm suppression/ Rate limit
-

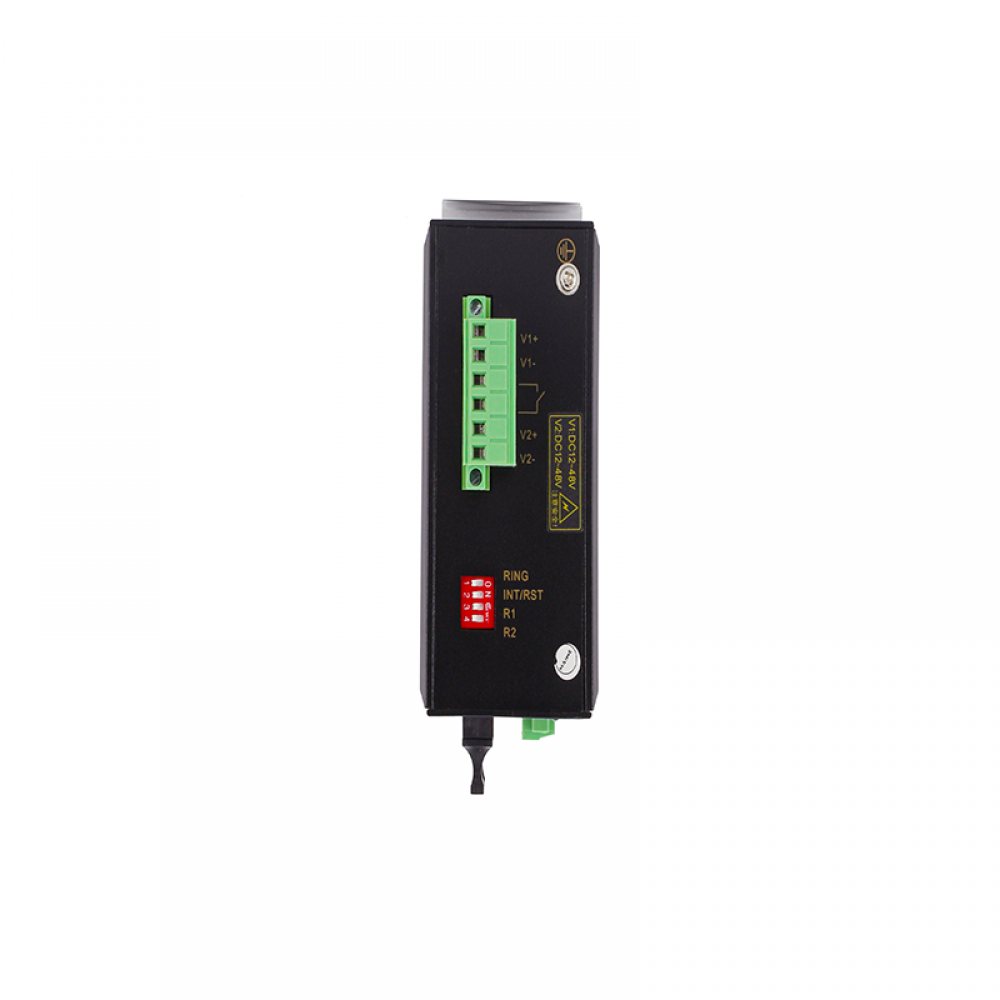

Supports industrial grade dual power input backup
-
Supports power-down status relay alarm output
-
Supports VLAN/ Qos/ Port link aggregation /port mirroring
-
Industrial grade wide temperature/ fanless design
|
Software performance
|
|
Redundancy protocol
|
Support T-Ring and the recovery time<20 ms.
Support STP/RSTP
|
|
Multicast routing
|
Support IGMP snooping/ IGMP v1/v2/v3
Support GMRP
Support static multicast
|
|
Management and
maintenance
|
Support Console and Web management methods
Support SNMPv1/v2c
Support unified PC software management
|
|
Technical specifications
|
|
Ethernet Standard
|
IEEE802.3-10BaseT
IEEE802.3u-100BaseTX/100Base-FX
IEEE802.3x-Flow Control
IEEE802.1p -Class of Service
|
|
Switch
properties
|
|
Priority queue
|
4
|
|
VLAN ID
|
1-4096
|
|
IGMP Groups
|
256
|
TMIE6205D-2F
|
2 10/100M Fx
ports +3 10/100M Tx pots +2 RS485/232 ports, layer 2 managed din-rail
industrial Ethernet switch, dual DC12~48V wide voltage power supply
|
|
