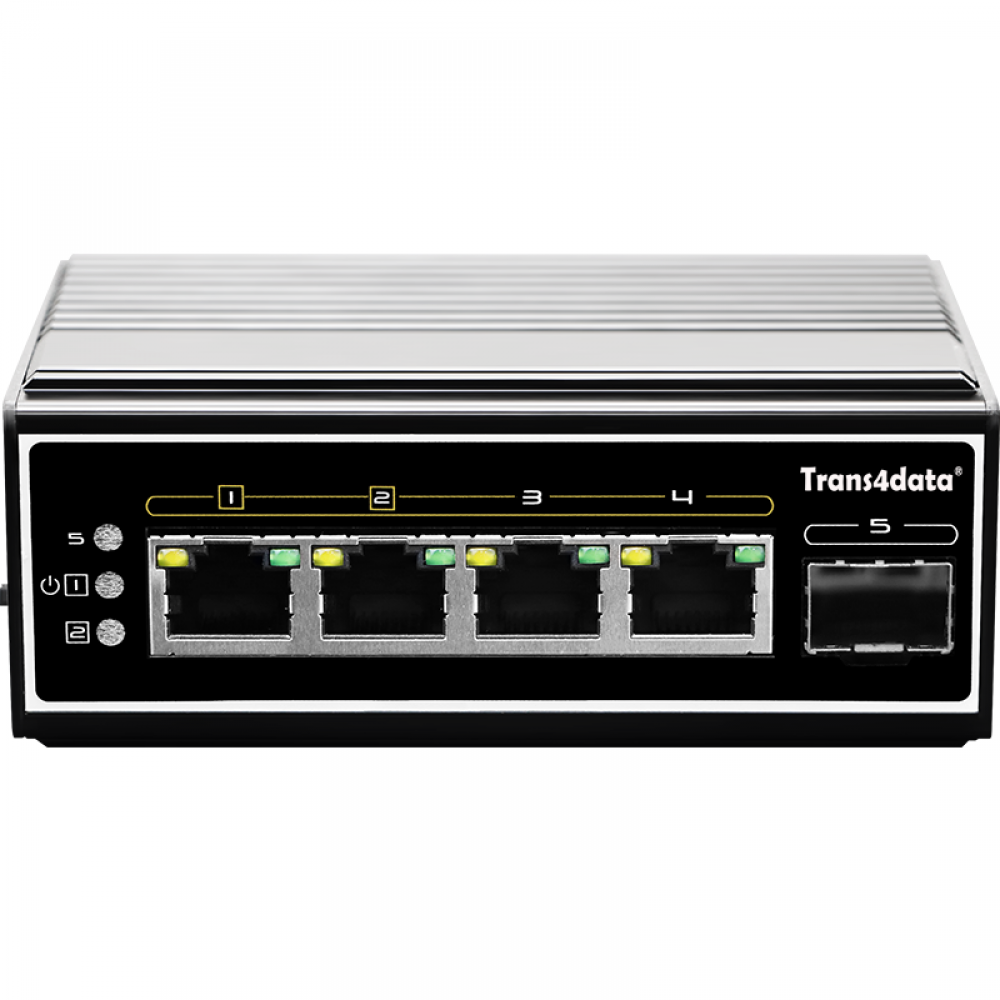

Compact size 802.3bt standard 90W industrial PoE switch

5 ports compact size full gigabit industrial 90W PoE switch

Model No.: TIE5205BT-1GF

2*10/100/1000M Hi-PoE 90W ports , 2*10/100/1000M 30W PoE ports and 1*1000M SFP slot;
Supports 6KV surge protection, 6KV contact / 8KV air ESD protection;
Supports working temperature -40℃～80℃;
5 years warranty

OverviewFeaturesSpecificationApplicationOrder Information

The TIE5205BT-1GF is a 5-port industrial full gigabit PoE switch that supports up to 2*10/100/1000M 90W PoE ports,
2*10/100/1000M 30W PoE ports and 1*1000M SFP slot; 4*10/100/1000M ports support PoE+, conforming to IEEE 802.3af/at/bt standard.
It has a high anti-interference ability, the product supports 6KV surge protection, and 6KV contact / 8KV air ESD protection;

TIE5205BT-1G supports Din-rail installation, reliable and durable, and can be used in security network video monitoring,
network engineering and other occasions

2*10/100/1000M 90W PoE ports, 2*10/100/1000M 30W PoE ports and 1*1000M SFP slot;
Supports 6KV surge protection, 6KV contact / 8KV air ESD protection;
Supports working temperature -40℃～80℃;
Supports Din-rail installation, reliable and durable. It can be used in security network video monitoring, network engineering and other occasions.

Parameter	Specifications
Power supply	Powered by power adaptor
Range of voltage	DC 48~57V
Consumption	Self consumption<5W
Downlink ports	Ports 1~2 10/100/1000Base-T 90W PoE RJ45(IEEE 802.3bt) Ports 3~4 10/100/1000Base-T 30W PoE RJ45(IEEE 802.3af/at)
Uplink ports	Port 5 1000Base-X SFP slot
Cable and distance	Use cat5e/6,100m max.
Standard	IEEE802.3, IEEE802.3u, IEEE802.3z
Switch fabric	10Gbps
Thoughput	7.44Mpps
Buffer	1M
MAC address table	8K
Indicator	Power: 2 *red; Uplink 5: green LEDs indicate Link/Act Downlink 1~4: On RJ45 green LEDsc/Act, yellow LEDs indicate PoE
Protection	Surge: 6KV, standard: IEC61000-4-5 ESD: 6KV: contact / 8KV: air, standard:IEC61000-4-2
Working temperature	-40℃~80℃
Storage temperature	-40℃~85℃
Humidity	0~95%(No condensation)
Dimension(L×W×H)	99 mm×65 mm×50mm
Material	Aluminium
Colour	Black
Net-weight	350g

Model

Description

TIE5205BT-1G

Ports 1~2: 2*10/100/1000M 90W PoE RJ45 (IEEE 802.3bt)

Ports 3~4: 2*10/100/1000M 30W PoE RJ45 (IEEE 802.3af/at)

Port 5: 1*1000M SFP slot.

DC 48V-57V power input.
