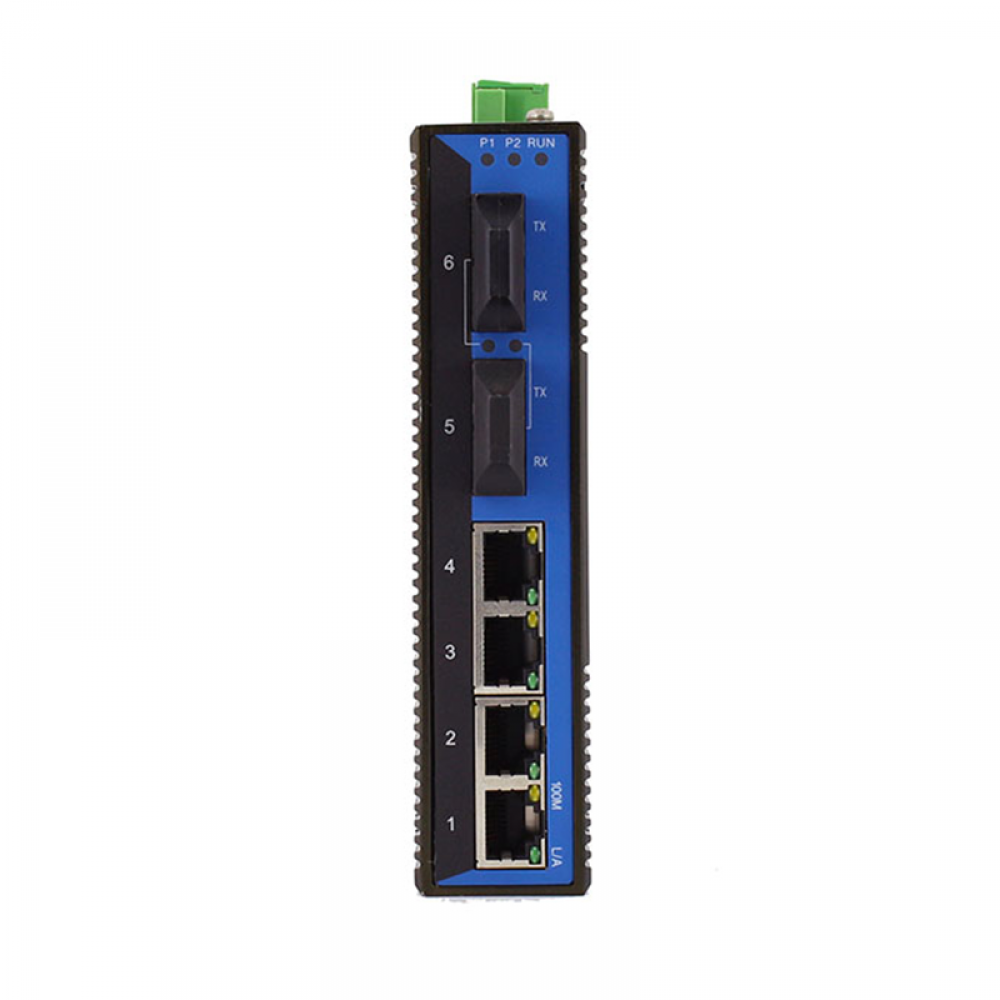

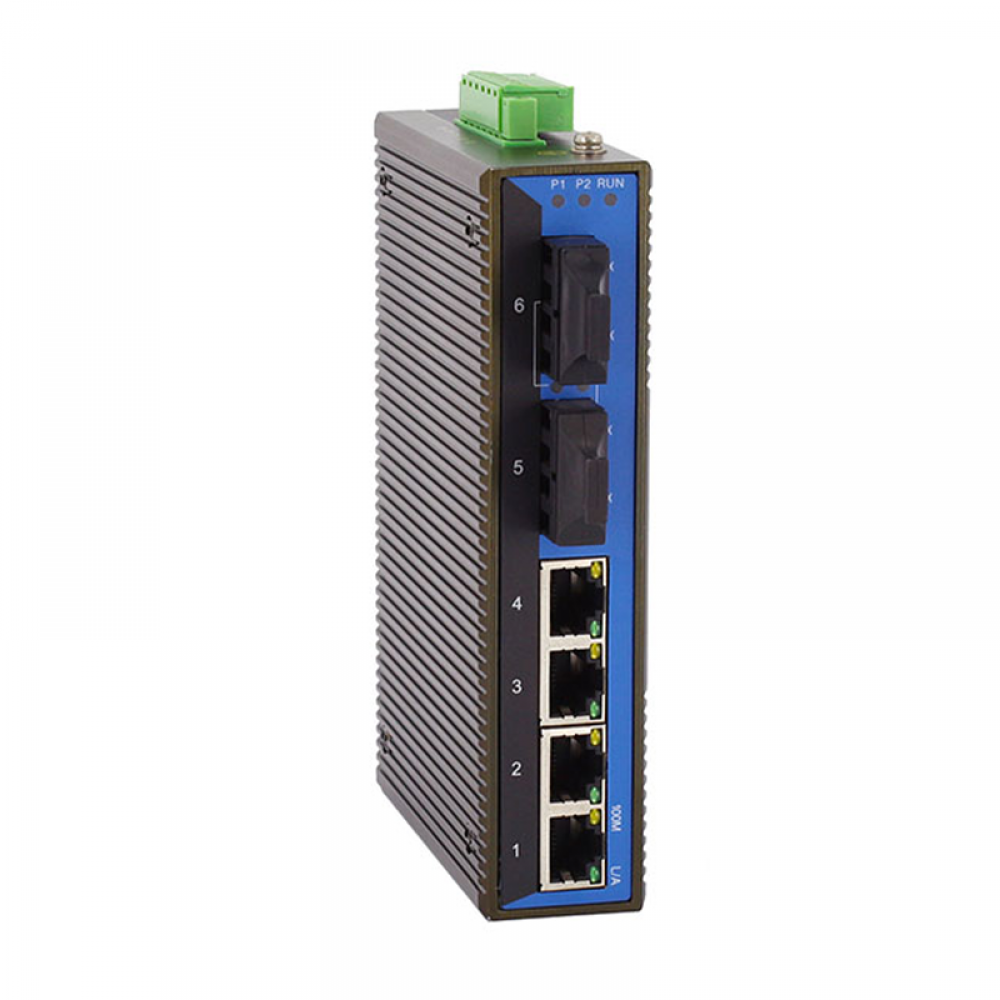

TIE6206-2F series switches can be used for simple application in plug-and-play mode to meet the needs of users.
All electrical ports support auto-negotiation, 10/100Mbps full-duplex and half-duplex, flow control, Auto-MDI/MDI-X and more.
It provides redundant power supply support as well as wide range of DC and AC power inputs.
In terms of structural installation, the switch is a compact switch that takes up less space and is installed using a rail
-
Supports 2x100M FX ports+4x10/100M RJ45 ports
-
Starts working once connected, quick and convenient
-
Supports status display indicator lights
-
Supports industry power supply
-
Supports power-down status reply alarm output
-
Wide temperature range design, fan-less thermal design
-
Industrial level 4 protection, satisfy harsh industrial environment
-
5 years warranty
|
Technical
parameters
|
|
Protocol
Standard
|
IEEE802.3(Ethernet), IEEE802.3u(100Base-TX&100Base-FX), IEEE802.3x(Flow control)
|
|
Switch
capability
|
|
MAC
Table Size
|
2k
|
|
Switch
Delay
|
<5μs
|
|
Interface
|
100M port
|
Number: 6
|
Connector: 1×9 fixed optical port(single/multi-mode optional, SC/FC/ST interface) or RJ45 100M TX port
|
Baud rate: 100Base-FX(Optical port), Self-adaption 10/100Mbase-TX
|
Terminal block for power input
|
5.08mm terminal block
|
Terminal block for relay alarm
|
5.08mm terminal block, 1A@24VDC
|
|
Communication distance
|
Twisted-pair
|
100m(CAT5/CAT5e cable)
|
Multi-mode fiber
|
100M multi-mode: 1310nm, 2km
|
Single mode fiber
|
100M single mode: 1310nm, 20/40km; 1550nm, 60/80km
|
|
LED indicator
lights
|
|
Front panel LED lights
|
Port light: LINK/ACT; SPEED; Lx
|
|
System work light: RUN
|
|
Power status light: PWR1; PWR2
|
|
Power
|
|
Input power
|
DC110~220V (Wide voltage: DC110~370V) or
AC100~240V (Wide voltage: AC85~264V)
Support optional for DC12V~DC24V,
DC48V
|
|
Power consumption
|
<5W@(MAX)
|
|
Overload protection
|
support
|
|
Inversed protection
|
support
|
|
Redundancy protection
|
support
|
|
Working Environment
|
|
Operating Temperature
|
-40°C~80°C
|
|
Storage temperature
|
-40°C~85°C
|
|
Ambient Humidity
|
5%~95%
|
|
Physical Characteristics
|
|
Shell
|
IP40 protection, aluminum alloy shell
|
|
Installation
|
Standard 35mm DIN-rail Mounting
|
|
Dimension
|
33.0mm*144.0mm*97.0m
|
|
Industry standard
|
|
EMC
|
EN61000-4-2(ESD), Level 4
EN61000-4-3(RS), Level 4
EN61000-4-4(EFT), Level 4
EN61000-4-5(Surge), Level 4
EN61000-4-6(CS), Level 4
EN61000-4-8, Level 5
|
|
Impact
|
IEC60068–2-27
|
|
Falling
|
IEC60068-2-32
|
|
Shock
|
IEC60068-2-6
|
|
Warranty
|
|
Warranty
|
5 Years
|
|
Certification
|
CE, FCC, RoHS
|
|
TIE6206-2F
|
2* 10/100M Fx ports +4 *10/100M Tx
ports, dual DC12~48V wide voltage power supply
|
|
TIE6206-2F -DC48
|
2 *10/100M Fx ports +4 *10/100M Tx
ports, dual DC48V(36~72V) isolate power supply
|
|
TIE6206-2F -AD220
|
2 *10/100M Fx ports +4 *10/100M Tx
ports, single AC85-264V/DC110~370V isolate power supply
|
