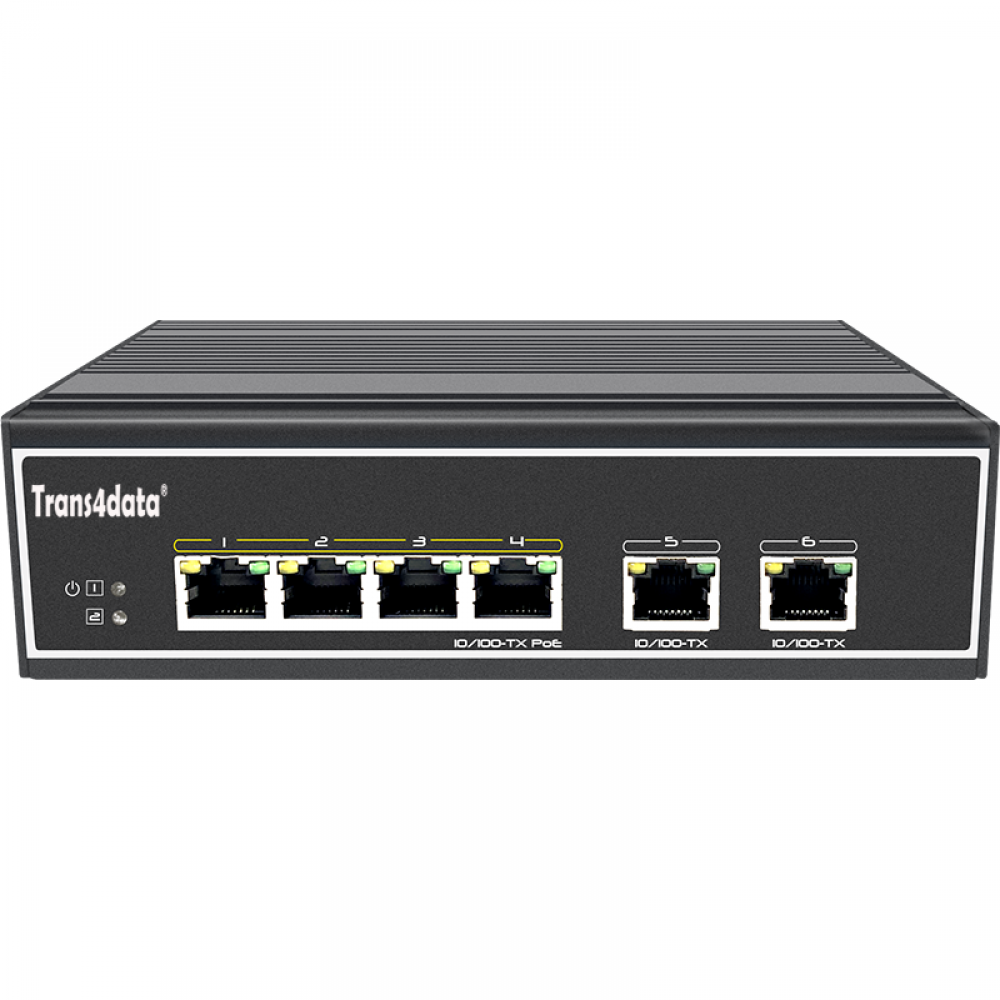

The TIE6206P-2E is a 6-port, industrial PoE switch that supports up to 4 *10/100M PoE ports and 2*10/100M uplink ports.
4 *10/100M ports support PoE+, conforming to IEEE 802.3af/at standard.
TIE6206P-2E provides three modes, Extend, Default and VLAN, rich network management characteristics, adapt to variety
complex environments. At the same time, support PoE auto-check function, which is specially designed to solve the problems
of equipment frozen.It can automatically detect the frozen PD equipment and restart the ports’output of PSE, and restart the PD device.
It greatly reduces the maintenance difficulty of engineering.
TIE6206P-2E supports wall hanging and desktop installation, reliable and durable, and can be used in security network video monitoring,
network engineering and other occasions.
-
4*10/100M PoE downlink ports and 2*10/100M uplink ports;
-
Provides three modes of Extend, Default and VLAN to adapt to various complex environments;
-
Supports PoE Auto-check function, which is specially designed to solve the problems of equipment frozen.It can automatically detect the frozen PD equipment and restart the ports’ output of PSE, and restart the PD device. It greatly reduces the maintenance difficulty of engineering;
-
Supports 6KV surge protection, 6KV contact/8KV air ESD protection;
-
Supports working temperature -40℃~80℃
|
Parameter
|
Specifications
|
|
Power supply
|
Powered by power adaptor
|
|
Range of voltage
|
DC 48~57V
|
|
Consumption
|
Self
consumption<5W
|
|
Downlink ports
|
Ports 1~4 10/100Base-TX
30W PoE RJ45(IEEE802.3af/at)
|
|
Uplink ports
|
5~6 10/100Base-TX
|
|
PoE Auto-check
|
If detect the frozen PD device, restart it
|
|
Working mode
|
Extend mode:
ports 1 ~ 4 Extend up to 250m;1 ~ 4 ports are isolated from each other and
can only communicate with the uplink ports; restrain the network storm; turn
off the flow control.
Default
mode: normal switch mode.
VLAN mode:
ports 1 ~ 4 are isolated from each other and can only communicate with the
uplink port; restrain the network storm; turn off the flow control.
|
|
Cable and distance
|
Use
cat5e/6,100m max(Extend mode max.250m)
|
|
Standard
|
IEEE802.3, IEEE802.3u, IEEE802.3z
|
|
Switch fabric
|
1.2Gbps
|
|
Though put
|
0.89Mpps
|
|
Buffer
|
1M
|
|
MAC address table
|
8K
|
|
Indicator
|
Power: 1 *red ;
Uplink 1~4: On RJ45
green LEDs indicate Link/Act, yellow LEDs indicate PoE
Downlink 5~6: On RJ45
green and LEDs indicate Link/Act
|
|
Protection
|
Surge: 6KV, standard: IEC61000-4-5 ESD: 6KV: contact / 8KV: air, standard:IEC61000-4-2
|
|
Working
temperature
|
-40℃~80℃
|
|
Storage
temperature
|
-40℃~85℃
|
|
Humidity
|
0~95%(No condensation)
|
|
Dimension(L×W×H)
|
165mm×115 mm×50mm
|
|
Material
|
Metal
|
|
Colour
|
Black
|
|
Net-weight
|
500g
|
|
Model
|
Description
|
|
TIE6206P-2E
|
With 4*10/100M PoE downlink ports and 2*100M uplink
ports;
2*DC48-57V power supply, redundancy power;
Supports three working modes of Extend, Default and VLAN(250m)
Supports PoE auto-check function; Supports Din-rail, wall,desktop installation.
|
