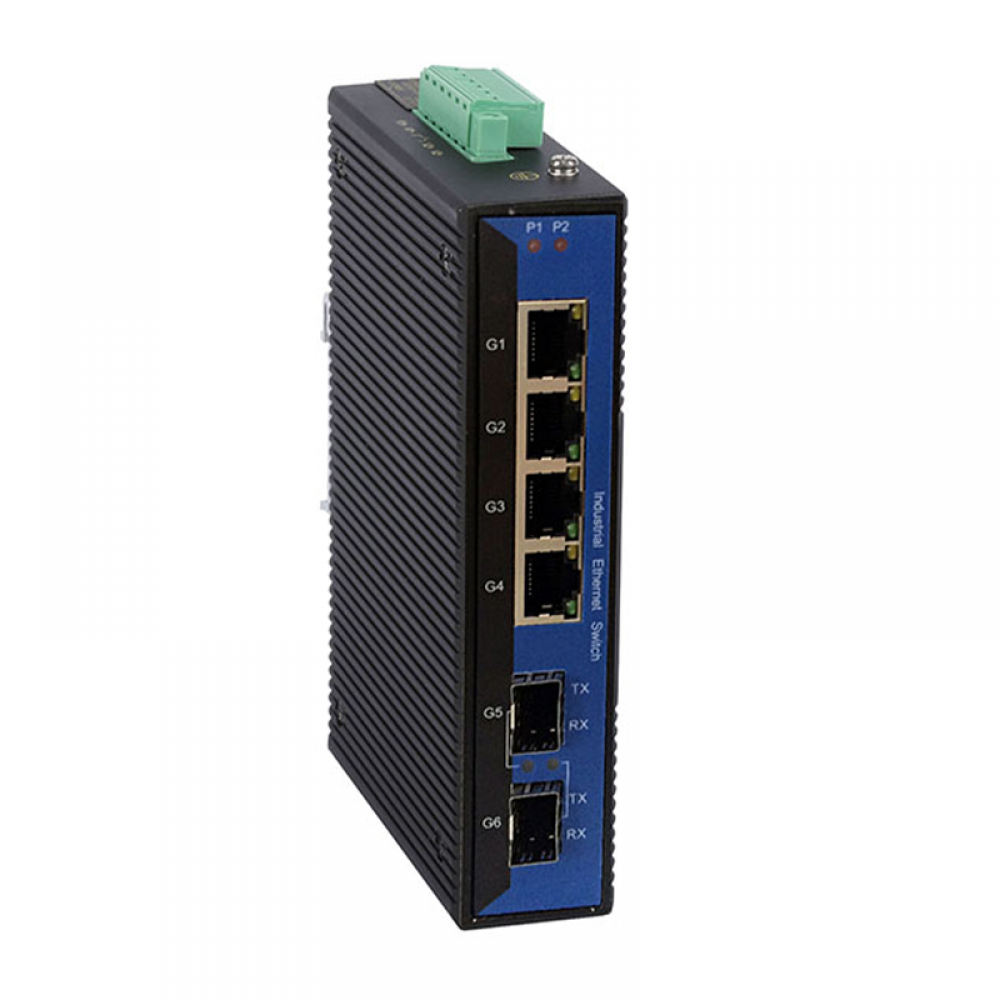

TIE7206-2GF is a high-performance, unmanaged industrial Ethernet switch with 2 Gigabit fiber ports and 4 Gigabit copper ports
which support 10/100/1000M adaptive, suitable for applications with large bandwidth requirements.
This product support power failure alarm output function, which is convenient for maintenance engineers to find and handle faults in time
-
Supports 2 Gigabit SFP ports+4 Gigabit RJ45 ports
-
Starts working once connected, quick and convenient
-
Supports status display indicator lights
-
Supports industry grade power supply.
-
Supports power-down status reply alarm output.
-
Wide temperature range design, fan-less thermal design
-
Industrial level 4 protection, satisfy harsh industrial environment
-
5 years warranty
|
Technical
parameters
|
|
Protocol
Standard
|
IEEE802.3(Ethernet), IEEE802.3u(100Base-TX&100Base-FX), IEEE802.3x (Flow control), IEEE802.3z(1000Base-LX)IEEE802.3ab(1000Base-T)
|
|
Switch
capability
|
|
MAC
Table Size
|
1k
|
|
Backplane bandwidth
|
12Gbps
|
|
Switch
Delay
|
<5μs
|
|
Interface
|
Gigabit port
|
Number: 6
|
Connector: SFP gigabit port(LC interface, single/multi-mode optional) or Gigabit RJ45 ports
|
Baud rate: 1000Base-FX(SFP), Self-adaption 10/100M-TX
|
Terminal block for relay alarm
|
5.08mm terminal block, 1A@24VDC
|
Terminal block for power input
|
5.08mm terminal block
|
|
Communication distance
|
|
Twisted-pair
|
100m(CAT5/CAT5e
cable)
|
|
Multi-mode
fiber
|
Gigabit
multi-mode: 850nm, 550m
|
|
Single
mode fiber
|
Gigabit
single mode: 1310nm, 20km
|
|
LED indicator
lights
|
|
Front
panel LED lights
|
Port
light: LINK/ACT; SPEED
|
|
System work light: RUN
|
|
Power
status light: PWR1; PWR2
|
|
Power
|
|
Input power
|
DC110~220V(Wide voltage: DC110~370V) or AC100~240V(Wide voltage: AC85~264V)
Support: DC12~48V
|
|
Power consumption
|
<4.8W@(MAX)
|
|
Overload protection
|
support
|
|
Inversed protection
|
support
|
|
Working Environment
|
|
Operating Temperature
|
-40°C~80°C
|
|
Storage temperature
|
-40°C~85°C
|
|
Ambient Humidity
|
5%~95%
|
|
Physical Characteristics
|
|
Shell
|
IP40 protection, aluminum alloy shell
|
|
Installation
|
Standard 35mm DIN-rail Mounting
|
|
Dimension
|
33.0mm*144.0mm*97.0mm
|
|
Industry standard
|
|
EMC
|
EN61000-4-2(ESD), Level 4
EN61000-4-3(RS), Level 4
EN61000-4-4(EFT), Level 4
EN61000-4-5(Surge), Level 4
EN61000-4-6(CS), Level 4
EN61000-4-8, Level 5
|
|
Impact
|
IEC60068–2-27
|
|
Falling
|
IEC60068-2-32
|
|
Shock
|
IEC60068-2-6
|
|
Warranty
|
|
Warranty
|
5 Years
|
|
Certification
|
CE, FCC, RoHS
|
|
TIE7206-2GF
|
2 Gigabit Fx ports +4 Gigabit Tx
ports, full Gigabit din-rail mounted industrial Ethernet switch, dual DC12~48V
wide voltage power
supply
|
|
TIE7206-2GF-AD220
|
2 Gigabit Fx ports +4 Gigabit Tx
ports, full Gigabit din-rail mounted industrial Ethernet switch, single AC85-264V/DC110~370V
isolate power supply
|
